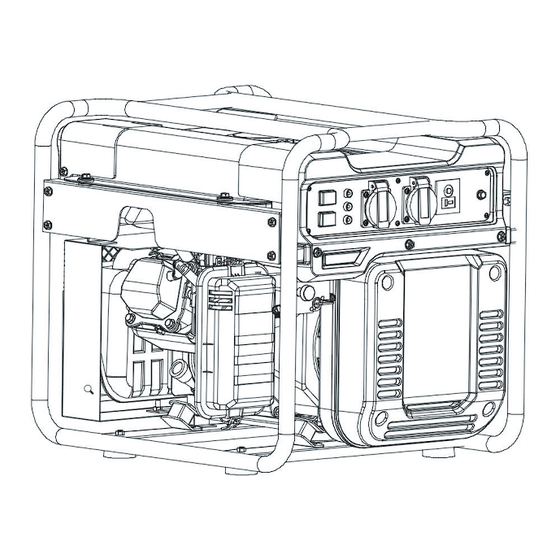

- Page 1 Petrol Inverter Generator USER MANUAL PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE GENERATOR. NOTE: THE GENERATOR HAS BEEN SHIPPED WITHOUT ENGINE OIL. FILL IT WITH THE CORRECT OIL OR IT WILL NOT START***...
-
Page 2: Table Of Contents
1. SAFETY INFORMATION ..............2 2. CONTROL FUNCTION ..............3 3. PRE-OPERATION CHECK .............5 4. OPERATION ...................6 5. PERIODIC MAINTENANCE ............9 6. TROUBLESHOOTING ..............12 7. STORAGE ..................13 8. SPECIFICATIONS ................ 14 9. WIRING DIAGRAM ..............15 10. WARRANTY ................17 Adventure Kings Generator... -
Page 3: Safety Information
Use ground (earth) lead of sufficient current capacity. Diameter: 0.12mm (0.005 in)/ampere EX: 10 Ampere --1.2mm (0.055 in) 5) CONNECTION NOTES • Avoid connecting the generator to a commercial power outlet. • Avoid connecting the generator in parallel with any other generator. Adventure Kings Generator... -
Page 4: Control Function
2. CONTROL FUNCTION (CONTD) (1) Oil Warning Light (Yellow) (2) AC Pilot Light (Green) (3) Overload Indicator Light (Red) (4) Economy Switch (5) ON/STOP Switch (Red) (6) DC Receptacle (7) Ground (earth) Terminal (8) DC Protector (9) AC Receptacle Adventure Kings Generator... -
Page 5: Oil Warning System
Reduce the load to within the specified generator rated output if the DC circuit protector turns the engine off. 6) FUEL COCK • The fuel cock is used to supply fuel from the tank to the carburettor. NOTE: Turn fuel cock to the ‘off’ position while transporting generator Adventure Kings Generator... -
Page 6: Pre-Operation Check
• Change oil if contaminated. • Fill oil until visible at the upper level of oil filler hole UPPER (Approx. 450ML) LIMIT Recommended engine oil: SAE10 W30 3) GROUND (Earth) • Make sure to ground (earth) the generator. Adventure Kings Generator... -
Page 7: Operation
• Be sure the socket load current is within socket rated current. • The economy control switch must be turned to “OFF” when using electric devices that require a large starting current, such as a compressor or a submergible pump. Adventure Kings Generator... - Page 8 • The overload indicator light may come on for a few seconds at first when using electric devices that require a large starting current, such as a compressor or a submergible pump. However, this is not a malfunction. Adventure Kings Generator...
-
Page 9: Stopping The Engine
• Be sure the economy control switch is turned “OFF” while charging the battery. 3) STOPPING THE ENGINE 1. Turn off the power switch of the electric apparatus or disconnect any electric devices. 2. Turn the engine switch to “STOP” position. 3. Turn the fuel cock lever to “OFF”. Adventure Kings Generator... -
Page 10: Periodic Maintenance
Idle speed Check and adjust engine idle speed Fittings / Check all fittings and fasteners correct if Fasteners necessary. Crankcase Check breather hose for cracks or damage. breather Replace if necessary Generator Check the pilot light comes on Adventure Kings Generator... -
Page 11: Engine Oil Replacement
Oil the element with foam air filter oil and squueze out any excess. The element should be wet but not dripping. Insert the element into the air filter. Install the air filter cover CAUTION: • The engine should never run without the element; excessive piston and/or cylinder wear may result. Adventure Kings Generator... -
Page 12: Cleaning And Adjusting Spark Plug
Use the flathead screw driver to pry the spark arrester out from the muffler Remove the carbon deposits on the muffler screen and spark arrester using a wire brush. Install the spark arrester and muffler screen. Install the cover Adventure Kings Generator... -
Page 13: Troubleshooting
• Worn out piston and cylinder… Consult dealer. 2) GENERATOR WON’T PRODUCE POWER • If Safety device (AC) is switched to “OFF” …Stop the engine, then restart. • If Safety device (DC) is switched to "OFF"...Press to reset the DC protector. Adventure Kings Generator... -
Page 14: Storage
4. Stop pulling. 5. Clean exterior of the generator and apply a rust inhibitor. 6. Store the generator in a dry, well-ventilated place, with the cover place over it. 7. The generator must remain in a vertical position. Adventure Kings Generator... -
Page 15: Specifications
Spark Plug: Type E6TC/E6RTC (Torch) Net dimension 520mm × 440mm × 470mm (L×W×H) Overall dimension 560mm × 480mm × 520mm (L×W×H) Net Weight 35.5 Kg Gross Weight 38 Kg * Specifications subject to change without prior notice. Adventure Kings Generator... -
Page 16: Wiring Diagram
8. WIRING DIAGRAM Adventure Kings Generator... - Page 17 This generator must not be laid on its side – always mount upright with the rubber feet on the ground. Check engine oil level before each start. DANGER: Do not use indoors or poorly ventilated conditions. Carbon monoxide fumes from the exhaust can kill in minutes. Adventure Kings Generator...
-
Page 18: Warranty
Any loss directly or indirectly associated with the product failing to operate. TO MAKE A CLAIM UNDER THIS WARRANTY PLEASE CALL 1800 88 39 64 OUTDOOR SUPACENTRE PTY LTD 2 Stanley St Silverwater NSW, 2128 PHONE: 1800 88 39 64 www.4wdsupacentre.com.au Adventure Kings Generator... - Page 19 Adventure Kings Generator...
