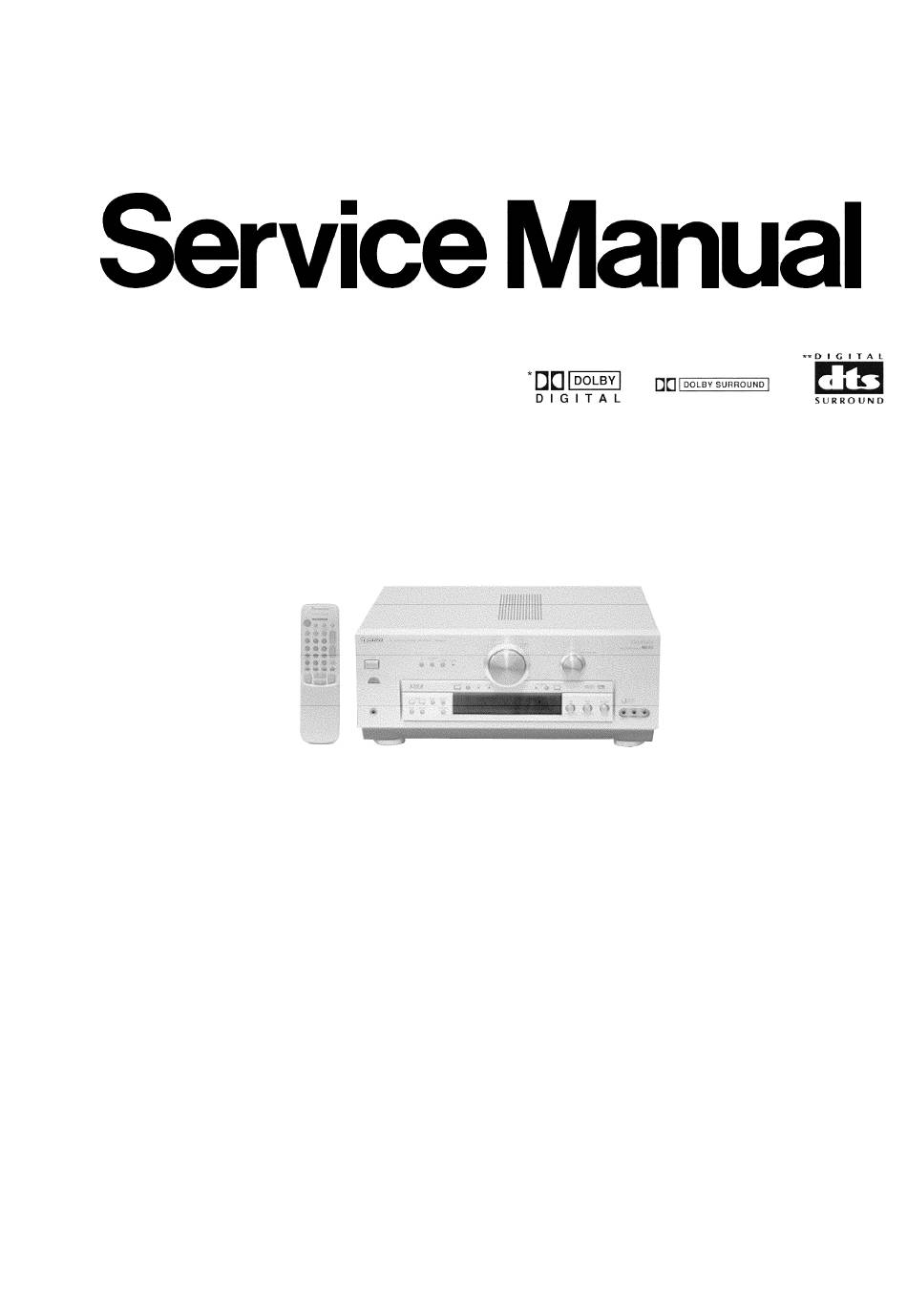

Order No. MD0006112C1 AV Control Stereo Receiver SA-DA10 Color (K) ... Black Type (N) ... Gold Type PP ... U.S.A. and Canada SPECIFICATIONS MC-Service...
Page 2
FM Tuner Section Frequency range 87.9-107.9 MHz Sensitivity 11.2 dBf (2 V, IHF’58) 50 dB quieting sensitivity MONO 18.3 dBf (4.5 V, IHF’58) STEREO 38.3 dBf (45 V, IHF’58) Total harmonic distortion MONO 0.2% STEREO 0.3% MONO 73 dB STEREO 67 dB Frequency response 20 Hz-15 kHz, +1 dB, -2 dB...
Page 3
Surround 2 x 100 W (6 Low frequency damping factor 30 (6 Load impedance Front A or B 4 - 8 A and B BI-WIRE 6 - 8 Center 6 - 8 Surround 6 - 8 Frequency response PHONO RIAA standard curve ±0.8 CD, DVD, TV, VCR1, VCR2, VCR3, 10 Hz-100 kHz, ±3 dB TAPE...
1. Safety Precaution (This “Safety Precaution” is applied only in U.S.A.) 1. Before servicing, unplug the power cord to prevent an electric shock. 2. When replacing parts, use only manufacturer’s recommended components for safety. 3. Check the condition of the power cord. Replace if wear or damage is evident.
2. Before Repair and Adjustment Disconnect AC power, discharge Power Supply Capacitors C1702 through a 10 , 5 W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screw driver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid over current.
and then on again. 4. Accessories AC power supply cord... 1 pc. AM Loop Antenna Set / ... 1 set. FM Indoor Antenna... 1 pc. Remote Control / Transmitter... 1 pc. 5. Front Panel Controls 5.1. Front Panel...
6. Operation Checks and Main Component Replacement Procedures “ATTENTION SERVICER” Some chassis components maybe have sharp edges. Be careful when diassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. 2.
Page 11
8~12 - Main Component Replacement Procedures 1. Replacement of the Power IC and Regulator Transistor..................P.g. 13~14 2. Installation of the bottom cover after replacement....................... P.g. 15 6.1. Checking Procedure for each major P.C.B. Step 1 & Step 2 Unscrew and remove top cabinet as shown. Step 3 Remove all the screws.
Page 12
Step 4 Remove all the screws. Step 5 Remove the two support bars and VGCA cover. Step 6 Release the connectors CP451 and CP506. Step 7 Remove the screw.
Page 13
Step 8 Release the connectors CN351 and CP353. Step 9 Release the flat cable from CN901B. / Take note of CN504, CN505 and CN902.
Page 14
Step 10 Remove all the screws and support bar (A). Step 11 Unscrew the nut from AL Panel and remove the Volume Knob. Step 12 Remove all the screws and pull the Volume P.C.B. up as shown. / Take note of CP501 and CP502.
Page 15
Step 15 Remove Selector Knobs, Tone Knob, Selector Ring, Light Guide and unscrew the nut. / Take note of CP503. Step 16 Remove all the screws. Step 17 Release the AC In/Out P.C.B. catch. Step 18 Release the CP771 and pull out the rear panel in the direction shown.
Page 16
Step 19 Remove the screw and Shield Plate. Step 20 Release the CN702 and pull out the Surround P.C.B. in the direction shown. / Take note of CN1201 to CN1204.
Page 17
Step 21 Release the CN354 and pull out the Input Selector P.C.B. in the direction shown. / Take note of CN401 to CN403. Step 22 Remove all the screws. Step 23 Release the CN102 and CN103 from the Phono P.C.B.. MC-Service...
Page 18
Step 24 Remove all the screws. Step 25 Release the CN751 and CN752 from the Power P.C.B.. Pull out in the direction shown.
Page 19
6.2. Main Component Replacement Procedures 6.2.1. Replacement of the Power IC and Regulator Transistor Step 1 Remove the top cabinet. Step 2 Cut the joints as shown below. (8 joints)
Page 20
Step 3 Fold the joints. (8 joints) Step 4 Desolder the terminals of Power IC and Regulator Transistor. MC-Service...
Page 21
Step 5 Follow step 5 of Checking Procedure for each major P.C.B. on pg 9 to remove the support bars. Step 6 Remove all the screws, disconnect the CP603 and remove IC651. The PROTO Offset Screwdriver No.34-1/4 is recommended for use in the application above. Step 8 Remove all the screws at the rear panel and pull out Shield Plate, Surround P.C.B.
Page 22
Step 9 Remove the two screws from IC602. 6.2.2. Installation of the bottom cover after replacement...
Page 23
Step 1 Upset the bottom cover. Step 2 Align the ribs of bottom cover into the bugs. Step 3 Prepare the screws to fix the bottom cover. 7. Type Illustrations of ICs, Transistors & Diodes 8. Terminal Functions of ICs - IC901 (M38B57MCA242) MICRO PROCESSOR MC-Service...
Page 24
Mark I/O Function KEY2~KEY1 I Key Input 1~2 THERM/ I Thermal/Over load input OVLD KEY 4 I Key Input 4 OVERLOAD2 I Thermal/Over load input 2 FMST I Stereo signal detect terminal WAKE - Wake up timer LED (Not used, open) RDS DI - Control of RDS IC(Not used, open)
Page 25
AF MUTE O Muting control output 33~48 SEG16~ O FL segment signal output SEG1 49~58 DEG1~ O FL digit signal output DEG10 INIT_IN I Diode input initial settings VOL DOWN O Volume control output (Down) VOL UP O Volume control output (Up) VIDEO_C - Not used IF DATA...
Page 26
S301 VCR2/VCR3 Switch S901 Power Switch S902 Speaker B Switch S903 Band Switch S904 FM Mode Switch S905 Tuning Down Switch S906 Tuning Up Switch S907 Memory Switch S908 Preset Switch S909 DSP Sound Mode Switch S911 Speaker A Switch S912 Bi-Wire Switch S913...
13. Parts Location and Replacement Parts List Notes: - Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used. MC-Service...
Page 30
When replacing any of these components, be sure to use only manufacturers’s specified parts shown in the parts list. - The parenthesized indications in the Remarks column specify the areas or color. (Refer to the cover page for area or color.) Parts without these indications can be used for all areas.
13.2. Electrical Parts List Ref. No. Part No. Part Name & Description Remarks P.C.B. REP3019A-M POWER AMP P.C.B./MAIN P.C.B./TRANSFORMER P.C.B. [M]RTL REP3020A-S FRONT VCR3 INPUT P.C.B./S-VIDEO P.C.B./HEADPHONES P.C.B./ [M]RTL PHONO P.C.B./LED1 P.C.B./LED2 P.C.B./EARTH TERMINAL P.C.B./ PANEL P.C.B./TONE P.C.B./KEY P.C.B. REP3021A-P SURROUND P.C.B./INPUT SELECTOR P.C.B./VOLUME P.C.B./ [M]RTL POWER P.C.B./SPEAKER TERMINAL P.C.B./AC IN/OUT P.C.B.
Page 35
Ref. No. Part No. Part Name & Description Remarks IC1210 NJM4580EDTE1 IC OP AMP IC1211 TC9459F IC VOLUME IC1212 TC9459F IC VOLUME IC1213 TC9459F IC VOLUME IC1701 PQ30RV11 IC REGULATOR IC1901 M38B57M6154F IC MICOM TRANSISTORS Q351 2SC3940AQSTA TRANSISTOR Q352 2SA1534AQRTA TRANSISTOR Q401 RVTDTC143XST...
Ref. No. Part No. Part Name & Description Remarks C1913 ECBT1H101KB5 100P 50V 13.3. Packing Materials & Accessories Parts List Ref. No. Part No. Part Name & Description Remarks PACKING MATERIALS RPG4931 PACKING CASE [M]K RPG4934 PACKING CASE [M]N RPN1309 POLYFOAM RPFX0005 MIRAMAT BAG...
Page 72
/ Printed in Singapore / G000602800FLE/H/C/J/D...
SCHEMATIC DIAGRAM-12 :FM SIGNAL LINE :AM SIGNAL LINE Z101TUNER UNIT(RAN0001MM) :+ B SIGNAL LINE :FM OSC SIGNAL LINE :AM OSC SIGNAL LINE 2SC2059 FM MIXER IFT1 2SK360 0 - 220 JK101 RF AMP FM ANT 2SC2413 BUFFER AMP AM ANT AM ANT AM OSC 0.47...
Page 74
:POSITIVE VOLTAGE LINE :FM SIGNAL LINE :AM SIGNAL LINE :AM OSC SIGNAL LINE :FM/ AM SIGNAL LINE 470K 100P 470K 1000P DTA114 2SC2413 2SC2413 POWER SUPPLY (FM:ON) FM IF AMP FM IF AMP 3.3K 2SC2712 BUFFER AMP LA1844 FM/AM IF AMP, DET/AM OSC,MIX/FM MPX 50V1 470K...
MC-Service SCHEMATIC DIAGRAM - 11 :+B SIGNAL LINE :-B SIGNAL LINE :MAIN SIGNAL LINE POWER CIRCUIT CN752 Q752 R752 5.98V 6.64V 6.64V MAIN RL751 C754 CIRCUIT 6.64V 0.01 (W752) ON T751 9.53V D751-D754 SCHEMATIC 9.51V 1SR35400V DIAGRAM-7 Q753 C752 D756 C755 0.01 16V47...
Page 76
SCHEMATIC DIAGRAM - 10 : DVD AUDIO/VIDEO SIGNAL LINE : MAIN SIGNAL LINE : +B SIGNAL LINE : -B SIGNAL LINE : FM/AM SIGNAL LINE VOLUME CIRCUIT C541 IC502-IC504 NJM4580EDTE1 C543 R549 TONE AMP 330K R551 330K -16.05V C549 VR501 MOTOR VOLUME -16.27V C547 25V10...
Page 77
MC-Service SCHEMATIC DIAGRAM - 9 :-B SIGNAL LINE :MAIN SIGNAL LINE :+B SIGNAL LINE KEY CIRCUIT 6.37V Q903 2SA933SSTA CP502 11.06V POWER SUPPLY Q903 D941 11.72V R932 R933 R934 R935 R936 R938 MTZJ3R0BTA R931 R937 R925 1.5K 1.8K 3.3K 1.2K 2.2K 4.7K 6.8K...
SCHEMATIC DIAGRAM -8 :-B SIGNAL LINE :+B SIGNAL LINE FRONT VCR3 INPUT CIRCUIT W351 W352 VCR2_L PANEL CIRCUIT (CN352) ON SCHEMATIC VCR2_R INPUT DIAGRAM-3 SELECTOR S301_L CIRCUIT (CP351) ON SCHEMATIC DIAGRAM-1 S301_R W353 INPUT SELECTOR CIRCUIT S301 (CP353) ON R421 1K VCR2/VCR3 L CH SCHEMATIC...
MC-Service SCHEMATIC DIAGRAM - 5 :+B SIGNAL LINE :MAIN SIGNAL LINE :-B SIGNAL LINE MAIN CIRCUIT CP401 V_SELA IC601 V_SELB INPUT IC601 V_SELC SELECTOR RSN313H25-P CIRCUIT POWER AMP HIC SW_IN (CN401) ON -14V SCHEMATIC C611 DIAGRAM-1 +14V R661 0.047 D605 C603 CP402 CK_63...
SCHEMATIC DIAGRAM - 6 :+B SIGNAL LINE :-B SIGNAL LINE Q601-Q603,Q607 Q651 Q652 Q653 RVTDTA143XST RELAY DRIVE Q651-Q653 -0.09V -9.43V -9.43V -9.37V RVTDTA143XST -0.17V RELAY DRIVE CONTROL R623 Q601 Q602 R640 Q603 Q607 6.8K 6.8K -0.25V -0.26V -0.26V -0.27V -0.26V -7.58V 4.74V 4.09V...
Page 81
MC-Service SCHEMATIC DIAGRAM - 7 :+B SIGNAL LINE :-B SIGNAL LINE :MAIN SIGNAL LINE RL602 R617 R616 JK601 W601 W612 RL601 L CH D612 RVD1SS133TA R791 FRONT SPEAKERS RL605 W611 R792 R CH L CH W602 FRONT D611 SPEAKERS R793 D615 R794 R CH...
Page 82
SCHEMATIC DIAGRAM - 3 :+B SIGNAL LINE :-B SIGNAL LINE : MAIN SIGNAL LINE PANEL CIRCUIT FRONT VCR3 INPUT MAIN CIRCUIT (CN902)ON MAIN CIRCUIT (CN505)ON MAIN CIRCUIT (CN504)ON CIRCUIT (W352)ON SCHEMATIC DIAGRAM-6 SCHEMATIC DIAGRAM-6 SCHEMATIC DIAGRAM-6 SCHEMATIC DIAGRAM-8 CP505 CP504 CP902 CN352 D903...
Page 83
SCHEMATIC DIAGRAM - 4 MC-Service :+B SIGNAL LINE :-B SIGNAL LINE MAIN CIRCUIT (CN901B)ON SCHEMATIC DIAGRAM-6 CN901A 2 8 2 7 26 25 24 23 22 21 20 19 18 17 16 15 14 13 11 10 FL901 RSL0303-F R918 R917 100K 100K...
Page 106
VGCA MMD_CTRL VCR1 IN IC301 NJM2279D VIDEO SELECTOR TV/MONITOR OUT MC-Service IC302 NJM2279D VIDEO SELECTOR IC501 BA6218 MOTOR DRIVER Q903 POWER SUPPLY D302 2,5, 4~7, Drive D301 9~15 Q0~11 Direction select IC902 BU2090A I/O EXPANDER DATA MAIN_CIN DPASS VGCA IC901 M38B57MCA242 SYSTEM CONTROL/FL DRIVE MMD_CTRL...
Page 107
+Vcc Hi +Vcc Hi -VHout -VHout H.P.F -IN 1ch Out 1ch -IN 1ch Out 1ch DC Det L.P.F DC Det -IN 2ch Out 2ch -IN 2ch Out 2ch +IN Gnd Over Det +IN Gnd L.P.F Over Det D652 -VHout IH Det -VHout IH Det -Vcc Hi...
