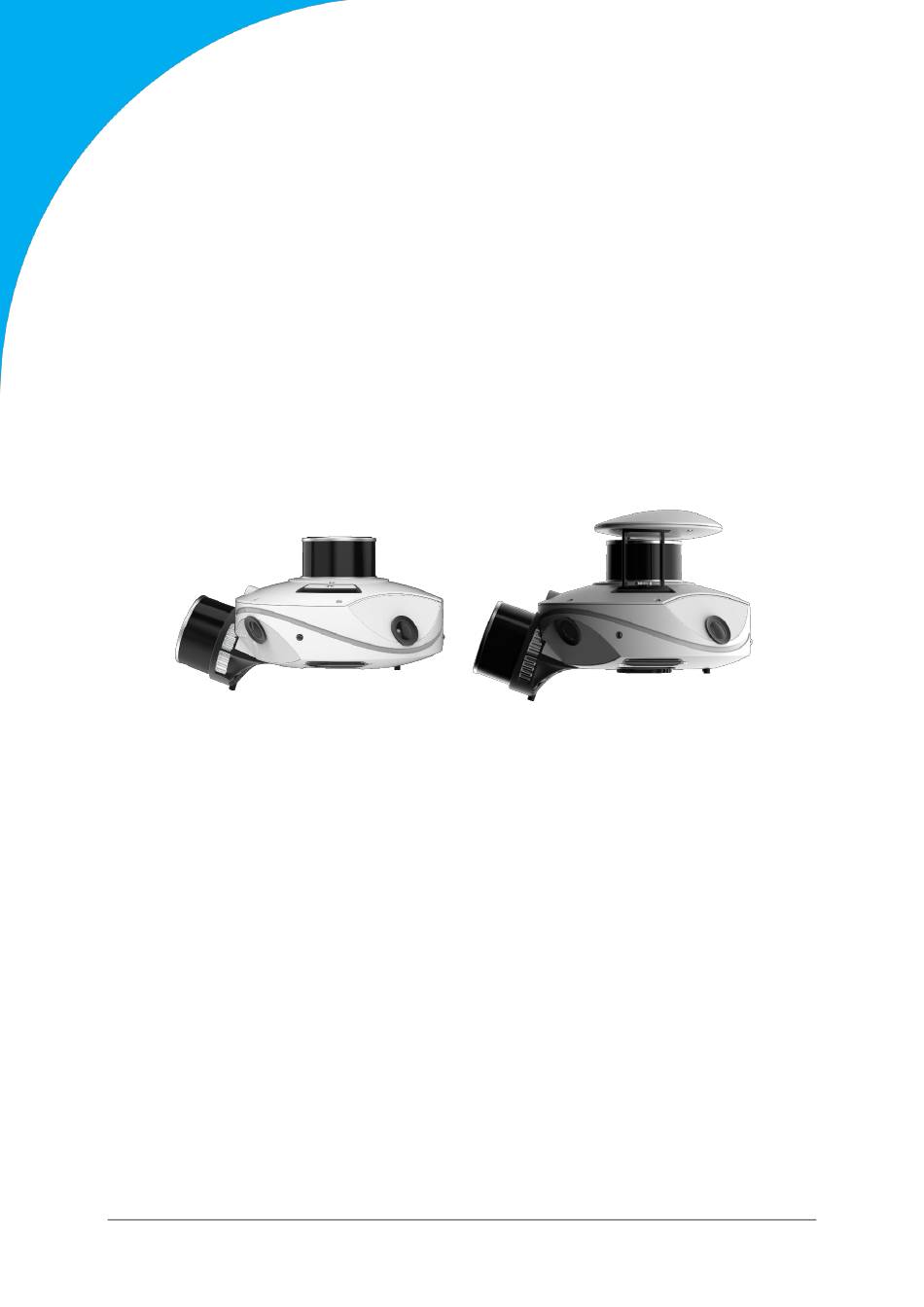

- Page 1 MOEBIUS MS-KIT USER MANUAL Document Version Product Version Firmware Version Date Document v1.6.en MS Kit v5.3 V1.1.1 / V1.3.4 Aug-2024 MS-96 v5.1 / RB v3.1 VIAMETRIS Koï Center – Bd de la Communication – CS96149 – 53062 Laval Cedex 9 – France...
- Page 2 4.2 G EOMETRIES UPLOAD 4.3 F IRMWARE UPDATE 5 SAFETY 6 COMPLIANCE 6.1 DEEE 6.2 CE 6.3 FCC 6.4 IC 7 TROUBLESHOOTING 7.1 K NOWN SSUES 7.2 C USTOMER UPPORT 8 TABLE OF FIGURES MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
-
Page 3: Specifications
640,000 pts / sec. 5.2kg (MS-96) Detection Range 0.5m to 120 m Weight 0.4kg (GNSS antenna) Vertical FOV -15° to +15° (30°) -16° to +15° (31°) 2.5kg (remote box) 40x30x20mm (MS-96) Size (lxdxh) 20x20x10mm (remote box) MOEBIUS MS-KIT – USER MANUAL Document v1.6.en... - Page 4 Horizontal LiDAR Oblique LiDAR Camera Figure 1: MS-96 and its antenna 1.3.2 R EMOTE Main connector USB3.0 port S/N RemoteBox switch SSID & PWD Batteries DC input 19V Figure 2: Remote box (Interface box) MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
- Page 5 "quick locks" on each side. Figure 5: Press firmly, the electrical Figure 6: Press the 2x QuickLocks to Figure 7: once secured, each connection is made secure the mechanical hold QuickLock is held down MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
-
Page 6: Battery Charging
The connection between the scanner and the remote box is established via a single cable. By default, the kit is supplied with a one-meter cable. Figure 9: Connecting the main cable to the remote box MOEBIUS MS-KIT – USER MANUAL Document v1.6.en... - Page 7 There are several light sequences on the light strip of the MS-96 system: Rotating Blue/White: System Starts Blue/white "breathable" on the sides of the system: the system communicates and is waiting for instruction Alternating flashing blue/white (or orange): scan in progress MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
- Page 8 A home page is presented listing the projects present as well as some control and information functions. Figure 12: Main page: List of available Figure 13: Parameter button in the Figure 14: List of scans available in a top right corner project projects MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
-
Page 9: Change Settings
CAUTION#2. Standard mode will produce data archives of approximately 1 Gigabytes per minute of recording. CAUTION#3. The High Quality mode will produce data archives of approximately 2 Gigabytes per minute of recording. MOEBIUS MS-KIT – USER MANUAL Document v1.6.en... - Page 10 UTC ok Full Nav ok Pedestrian / indoor Pedestrian / outdoor Motorized / outdoor Vehicle / outdoor Vehicle / indoor The table below gives an indication of how the nominal criteria were obtained: MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
- Page 11 In Outdoor mode, a GNSS reception interruption > 3 minutes will cause an automatic stop of the current scan. The operator will then have to revert to a nominal situation before being able to start a new scan. MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
-
Page 12: Data Transfer
The operator connects a storage medium (key or external drive) with enough free space. CAUTION#9. The external storage media must be formatted as NTFS or possibly exFAT. When exporting, the system will create a tree at the root of the media. MOEBIUS MS-KIT – USER MANUAL Document v1.6.en... -
Page 13: Shutting Down
It is possible to update the firmware of the MS-96 system as well as its remote box via a dedicated management HTML page. A firmware update comes in the form of a * file . SAR provided by VIAMETRIS. The user will copy the * file upstream. SAR on its support by respecting the following tree: [device root] / [device serial number] / import / MOEBIUS MS-KIT –... - Page 14 (in contexts of use that may be rationally conceivable) There are no additional measures to ensure the safe use of these Lasers. However, it is recommended to avoid looking directly at the laser beam MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
- Page 15 6.2 CE The undersigned, VIAMETRIS SAS, declares that the radio equipment of type MS Kit v5.3 is in conformity with the directives and regulations below. The full text of the EU declaration of conformity is available on the website under...
- Page 16 (2) this device must accept any interference received, including interference that may cause undesired operation. The Company “VIAMETRIS” is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
- Page 17 To update the other device, simply unplug and reconnect the disk. 7.2 C USTOMER UPPORT In order to optimize the diagnosis, it is recommended when contacting viametris support: • System Serial No. • Accurate description of events leading up to the problem •...
- Page 18 MS-96 Modular Mobile Scanner User Manual. © Viametris SAS. How to contact VIAMETRIS Contact Viametris when you have any questions about the use of our products: Tel: +33 243 497 791 Email: support@viametris.com Portal: Request access to support. MOEBIUS MS-KIT – USER MANUAL...
- Page 19 Figure 17: warning #1 GNSS reception cut off ..................12 Figure 18: warning on a < 5s press of the Start button ................. 12 Figure 19: System tilt warning > 20° ...................... 12 MOEBIUS MS-KIT – USER MANUAL Document v1.6.en...
