Summary of Contents for Synco Xtalk Link

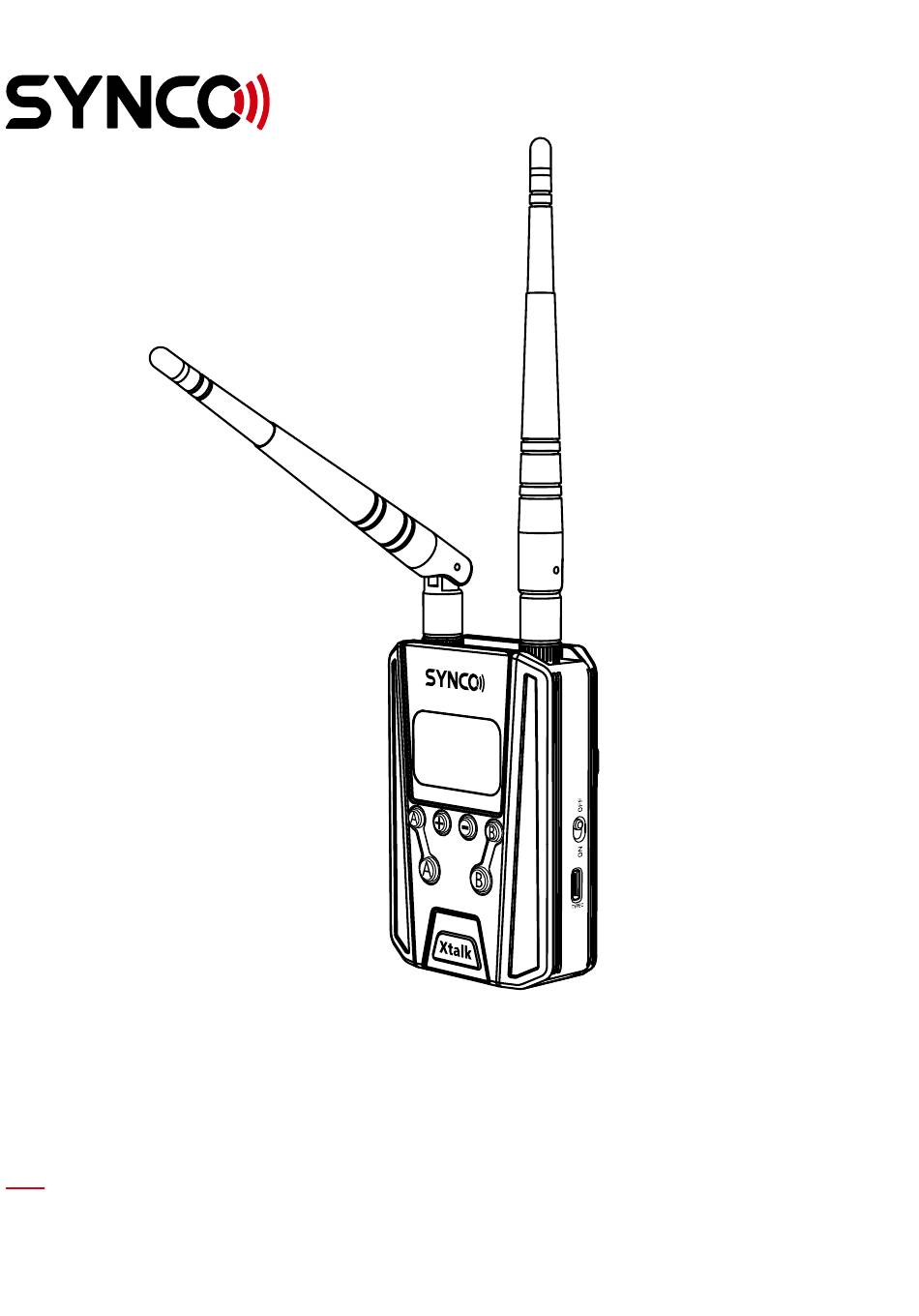

- Page 1 Xtalk Link Signal Boost User Manual Thank you for choosing SYNCO product. Please read this manual carefully before use and follow all instructions mentioned herein.
-
Page 2: Table Of Contents
Contents Product Introduction P 01 Operations P 01 1. Power On/Off P 01 2. Intercom Function P 01 3. Master Mode/Link Mode/Line In Mode Settings P 02 4. Link Mode P 02 4.1 Pairing/Unpairing P 02 4.2 Enable A/B Group Speaking P 05 4.3 Volume Settings P 06... -
Page 3: Product Introduction P
Product Introduction ① Screen ② Button A ③ Button ＋ ④ Group A Talking Button ⑤ Button B ⑥ Button － ⑦ Group B Talking Button ⑧ Power On/Off Toggle ⑨ Type-C Port ⑩ Line In Mode Port ⑪ 3.5mm Mic Port Operations 1. - Page 4 3. Master Mode/Link Mode/Line In Mode Settings Connect the headset to the 3.5mm mic port, then long press the top button A, release after the 2nd "Beep" sound, and see the "Link Mode/Line In Mode/Master Mode " on screen. Beep、Beep Link Mode/Line In Mode/Master Mode 4.
- Page 5 1. Pair Master A: Within 2 minutes, long press top button A on the link and button A on Master A, release after the 1st "Beep" sound, and hear "Connecting and Pairing". The Link's screen will show the icon with signal bars on the Master A icon. 2.
- Page 6 Unpairing Long press the top button A/B on the Link, release after the 1st "Beep" sound, and hear "Unpairing". Release Beep Unpairing * Pairing Capacity * In Link Mode, by connecting unlimited Link, you can connect unlimited Xtalk headsets, supporting 8N + 13 users talking (N for the quantity of Link). EG：...
- Page 7 Connect with 2 Link to support up to 29 users talking. (Note：M=Master, Lv.1=Level 1, Lv.2=Level 2) Lv.2 Lv.2 Lv.2 Lv.2 Lv.2 Lv.2 Lv.2 Lv.1 Lv.1 Lv.1 Lv.2 Lv.1 Lv.1 Lv.2 Lv.1 Lv.1 Lv.1 Lv.2 Lv.2 Lv.2 Lv.2 Lv.2 Lv.2 Lv.2 Connect with 3 Link to support up to 37 users talking.
- Page 8 * Even muting Group A/B, the Link can hear all headsets talking. Enable A & B Disable A & B Group Speaking Group Speaking 4.3 Volume Settings Group A Volume: Short press the button + to adjust from low/medium/high volume levels.
- Page 9 * In Line In Mode and for the wireless-connect method, the Link can only pair with a Master headset. Pairing 1. Switch the Link to Line In Mode: Long press top button A on the link, release after the 2nd "Beep" sound, and hear "Line In Mode". Release Beep, Beep...
-
Page 10: Master Mode/Link Mode/Line In Mode Settings P
6. Master Mode * In Master Mode, the Link can pair with up to 12 Xtalk headsets (4 Level 1 and 1–8 Level 2), supporting 13 users total. Level 2 Level 1 Master Level 1 Level 2 6.1 Pairing/Unpairing Pairing 1). -
Page 11: Dominant Mode
2). Restart the Link and all Level 1 before use. 3). Pair Level 2(If Needed): Within 2 minutes, long press button A on Level 1 and Level 2, release after the 1st "Beep" sound, and hear "Connecting and Pairing". * A Level 1 can connect up to 2 Level 2. Level 1 Level 2 Connecting and... -
Page 12: Mute/Unmute The Link
6.3 Mute/Unmute the Link Short press the down button A until it lights up red to activate the intercom function. Press it again to mute the Link. Level 2 Level 1 Master 1 Link 1/2 Master2/3 6.4 Volume Adjustment Short press the button + to adjust from low, medium, and high volume levels. Medium High 6.5 Boost Mode... -
Page 13: Powering
7. Powering 1. NP-F Battery: Compatible with NP-F970/750/550. Press the lock and slide the battery in or out. Install Remove 2. External Power: Connect a 5V 2A power source to the Type-C port. Specifications Dimensions 100*70*39mm(Antenna Not Included) 250*70*39mm(Antenna Included) Weight 200g (Antenna Included) Rated Power... -
Page 14: Packing List P
30 days of receipt of the product. 2. Original SYNCO products are entitled to a 12-month limited warranty service. The warranty period begins on the date of purchase of brand-new, unused products by the first end-user. -
Page 15: Warranty Exclusions And Limitations
2. Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided. 3. If the SYNCO product is out of warranty coverage, the service and the parts cost will be charged. www.syncoaudio.com... - Page 16 Guangzhou Zhiying Technology Co., Ltd Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue, Liwan District, Guangzhou, China, 510000 support@syncoaudio.com www.syncoaudio.com https://www.facebook.com/syncomicrophones...
