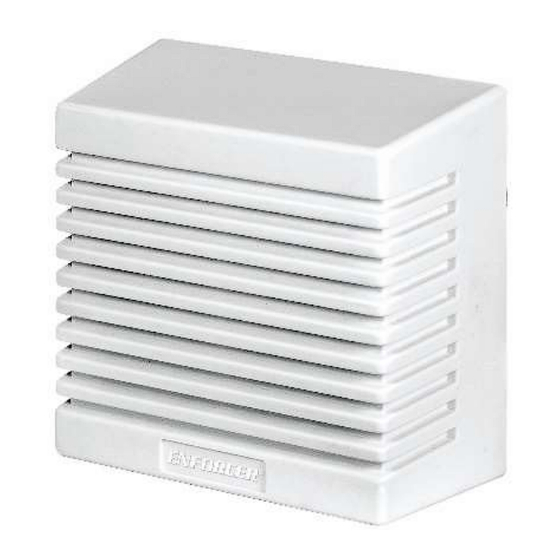

ENFORCER SH-525SQ Manual

Surface-Mount Dual-Tone
Wall Siren or Speaker
SH-525SQ / SH-905SQ
Manual
Specifications
Models
Operating voltage
Decibels
Current draw
550mA@12VDC
Power
Impedance
Dimensions
Installation
Please read the manual carefully before you begin
the installation.
1. Run the respective wires to a backbox and
connect the wiring as in the Wiring Diagram.
2. Using the included screws, install in the
backbox, taking care not to crimp the wires.
California Proposition 65 Warning: These products may contain chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
WARRANTY: This SECO LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original
-
customer.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right to change specifications without notice.
SECO-LARM is also not responsible for misprints. All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2024 SECO-LARM U.S.A., Inc.
All rights reserved.
SECO-LARM
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800
SH-525SQ SH-905SQ
6~14 VDC N/A
100dB N/A
N/A
N/A 15W
N/A 6~8 Ω
4 / "x4 / "x2 / "
5 5 3
16 16 16
(110x110x56 mm)
U.S.A., Inc.
®
 Indoor surface mount
 Compact design
 White ABS plastic housing
 Quick and easy installation
Parts List
1x Wall siren or speaker 4x Mounting screws
4x Wall anchors
1x Case screw
Overview
Front
4 / " (110mm)
5
16
Wiring Diagram – Siren
*Wiring for Speaker (SH-905SQ) is Red (+) and Black (–)
Website: www.seco-larm.com
Email: sales@seco-larm.com
1x Manual
Side
4 / "
5
16
(110mm)
2 / "
3
16
(56mm)
*
White – Common/Ground (–)
Red – Siren (+)
Yellow – Steady (+)
®
