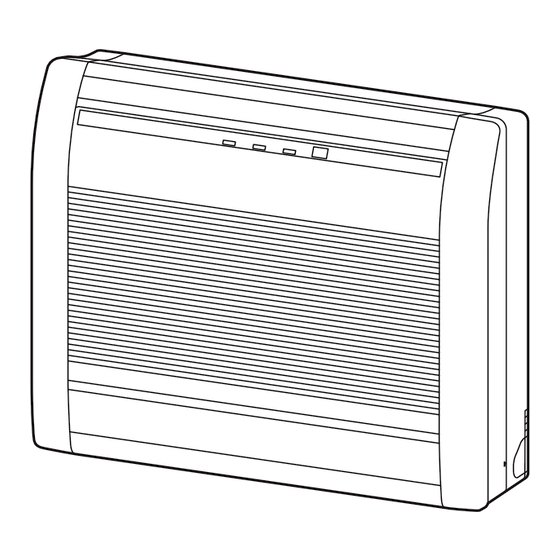

OPERATION MANUAL
INDOOR UNIT (Floor type)
Keep this manual for future reference.
MODE D'EMPLOI
UNITÉ INTÉRIEURE (Type sol)
Conservez ce manuel pour pour toute référence ultérieure.
MANUAL DE FUNCIONAMIENTO
UNIDAD INTERIOR (Tipo suelo)
Conserve este manual para posibles consultas futuras.
AGUA4TLAV2
AGUA7TLAV2
AGUA9TLAV2
AGUA12TLAV2
AGUA14TLAV2
PART No. 9382567064
Advertisement
Table of Contents
Related Manuals for Fujitsu AirStage AGUA4TLAV2
Summary of Contents for Fujitsu AirStage AGUA4TLAV2
- Page 1 OPERATION MANUAL INDOOR UNIT (Floor type) Keep this manual for future reference. MODE D’EMPLOI UNITÉ INTÉRIEURE (Type sol) Conservez ce manuel pour pour toute référence ultérieure. MANUAL DE FUNCIONAMIENTO UNIDAD INTERIOR (Tipo suelo) Conserve este manual para posibles consultas futuras. AGUA4TLAV2 AGUA7TLAV2 AGUA9TLAV2...
-
Page 2: Table Of Contents
OPERATION MANUAL ● Do not operate the air conditioner with wet hands. ● Check the condition of the installation stand for damage. PART No. 9382567064 VRF system indoor unit (Floor type) ● Operate only with air fi lters installed. ● Do not drink the water drained from the air conditioner. CONTENTS ●... -
Page 3: Manual Auto Operation
(8) Remote control signal receiver: This is the place to receive the AIRFLOW DIRECTION signals from the remote controller. (9) Intake grille (10) Front panel Up/down airfl ow direction (11) Air fi lter The up/down airfl ow direction (12) Horizontal louver Cooling, Dry can be controlled with the remote (13) Vertical louver (behind the horizontal louver and damper) -
Page 4: Operating Tips
Description of operation Automatic defrosting (When set to the upper and lower air outlets) ● When using the Heating mode under conditions of low outdoor air Cooling mode Dry mode Heating mode temperature high humidity, frost may form on the outdoor unit, result- ing in reduced operating performance. - Page 5 3. Replace the air fi lter and close the intake grille. Cleaning the intake grille (1) Align the sides of the air fi lter with the panel, and push in fully, making sure the 2 upper tabs are returned properly to their holes in the panel. 1.
-
Page 6: Troubleshooting
3. Install the 2 air fi lters and close the intake grille. Maintenance of ION DEODORIZATION FILTER In order to maintain the deodorizing eff ect, please clean the fi lter in the following way every 3 months. (1) Remove the fi lter. (2) Clean with water and dry in the air. -
Page 7: Specifications
Indicator lamps are blinking: Temperature does not fall down well. ● The Operation indicator lamp (green) fl ashes: ● Temperature may not fall down depending on the room conditions. An oil recovery operation is being performed. (Refer to “OPERATING (While high humidity or the room temperature is high.) (Refer to “OP- TIPS”) ERATING TIPS”) The Automatic defrosting operation is being performed.
