Share a photo of your cat with their new
Refined Self Cleaning Litter Box Cabinet!
Find us on Facebook or tag on Instagram:
#RefinedLitterBox
@RefinedFeline
The Refined Feline
Refined Self Cleaning
Refined Self Cleaning Litter Box Cabinet, visit:
© RefinedKind Pet Products. All Rights Reserved

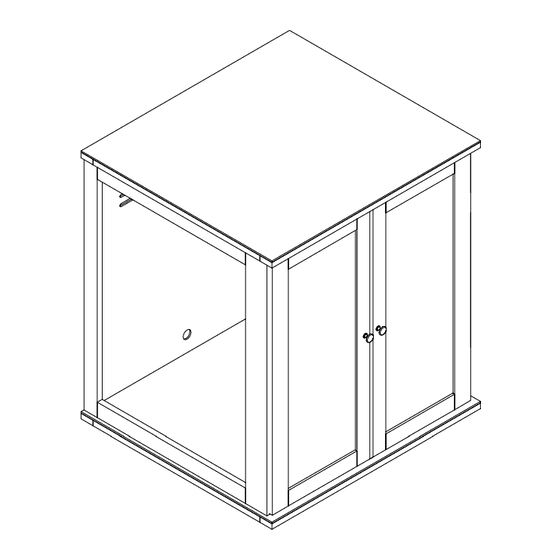

Refined Self Cleaning Litter Box Cabinet Assembly Instructions
Love Your Cat.
Love Your Home.
Litter Box Cabinet
Assembly Instructions
For video instructions on assembling your
TheRefinedFeline.com/assembly/
or scan QR code:
Need more help?
800-289-6136
Support@TheRefinedFeline.com
v1
TM
1
Advertisement
Related Manuals for Refined Feline Refined Self Cleaning Litter Box Cabinet
Summary of Contents for Refined Feline Refined Self Cleaning Litter Box Cabinet
- Page 1 Share a photo of your cat with their new Need more help? Refined Self Cleaning Litter Box Cabinet! Find us on Facebook or tag on Instagram: 800-289-6136 Support@TheRefinedFeline.com #RefinedLitterBox @RefinedFeline © RefinedKind Pet Products. All Rights Reserved The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions...
-
Page 2: What's In The Box
Catch 2 pieces 12 pieces Stike M6x40mm Ø8x30mm 3x15mm 2 pieces 3.5x12mm 5/16x15mm 5/32x25mm 2 pieces 4 piece 12 pieces 8 pieces 20 pieces 8 pieces 2 pieces Parts The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions... - Page 3 Install cam screws (#2) and dowels (#3) into part A. Place parts B & C over cam screws and dowels. Note: Groove on back of part A should face rear, away from hinges on parts B & C. The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions...
- Page 4 Attach roller catch stike (#9) to part G with 2 pieces screws (#5). Raised lip should face inward. NOTE: You may need to adjust these to align the doors later. The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions...
- Page 5 Note: Groove on back of part G should face rear, away from hinges. 6 pieces With arrow facing upward, insert cam locks (#4) into top of parts B & C then turn to lock. The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions...
- Page 6 A slight bend in part D is normal. Repeat on other side 8 pieces Attach doors E & F using screws (#6). Notch on back indicates bottom of the door. Insert all screws first before tighting. The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions...
- Page 7 2 pieces 2 pieces Attach roller catch (#10) with the roller upwards to each door with screws (#5) Placement of roller catch may need to be adjusted to align doors. The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions...
- Page 8 2) If doors fails to close flush, turn screw on rear of hinge to loosen. Adjust doors and retighten screw. 3) If doors are askew, turn middle screw on each hinge as needed until doors align. The Refined Feline Refined Self Cleaning Litter Box Cabinet Assembly Instructions...
-
Page 9: Warranty
About The Refined Feline The Refined Feline’s mission is to bring modern, innovative designs to cat furniture. We strive to reinvent how people view the products that they and their feline companions use in their shared space. All our cat trees, cat wall shelves, cat beds, and litter box furniture are thoughtfully crafted to be the best they can be for you, your home, and your cats.
