BerryBak BLV-D1 User Manual

Designed
BLV-D1
2 x 50W Bluetooth v5.0 Enabled
Audio Amplifier - TPA3116

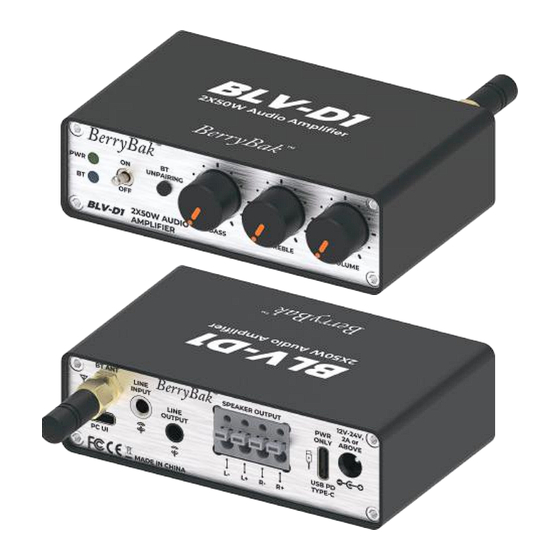

The BLV-D1 audio amplifier, featuring high-power output, Bluetooth v5.0
connectivity, user-friendly features like a volume control potentiometer and
Bluetooth unpair button, along with LED indicators, is integrated with DSP
and equipped with a heat sink, all while utilizing the TPA3116 Amplifier IC.
Features:
• LED Indicators:
Green LED for power status.
▪
Blue LED for Bluetooth connectivity status.
▪
• Power ON/OFF Switch:
Allows you to turn the unit on and off.
▪
• Bluetooth Pairing Button:
Used for Bluetooth pairing and unpairing with compatible devices.
▪
• Audio Controls:
Allows you to fine-tune the audio output to your preferences.
▪
Bass control potentiometer. Center frequency 120Hz, ±6dB.
▪
Treble control potentiometer. Center frequency 5kHz, ±6dB.
▪
Volume control potentiometer.
▪
• Bluetooth Antenna:
Enhances Bluetooth signal reception and range.
▪
• Line Input and Line Output:
Line Input for connecting audio sources to the BLV-D1.
▪
Line Output with an AUX connector for connecting the BLV-D1 to external devices.
▪
Specification(s)
5.0
Bluetooth Version
BerryBak BLV-D1
Bluetooth Name
DC 12V - 24V
Power Supply
Audio Input Bluetooth / Line Input
(Pluggable Connectors)
Speaker Output Screw-Free Push-Type Terminal Block
Mechanical Drawing
(Nominal Dimensions, inch (mm))
3.500" (89.00mm)
3.575" (90.81mm)
Specifications are subjected to change without any further notice. Copyright © 2023 by BerryBak Sdn. Bhd. All rights reserved.
Output Channel(s)
Output Power
Product Size
Product Size
Weight
Weight
For more information please contact us
BLV-D1
Audio Amplifier
User Manual
2.0CH
2 x 50W
3.575" x 3.500" x 1.075" (inch)
90.81 x 89.00 x 27.31 (mm)
6.0 oz ± 0.3 oz (ounce)
170g ± 10g (gram)
*The product size does not include the Bluetooth antenna on
the rear panel and the potentiometer knob on the front panel.
