Summary of Contents for Jetwave 515

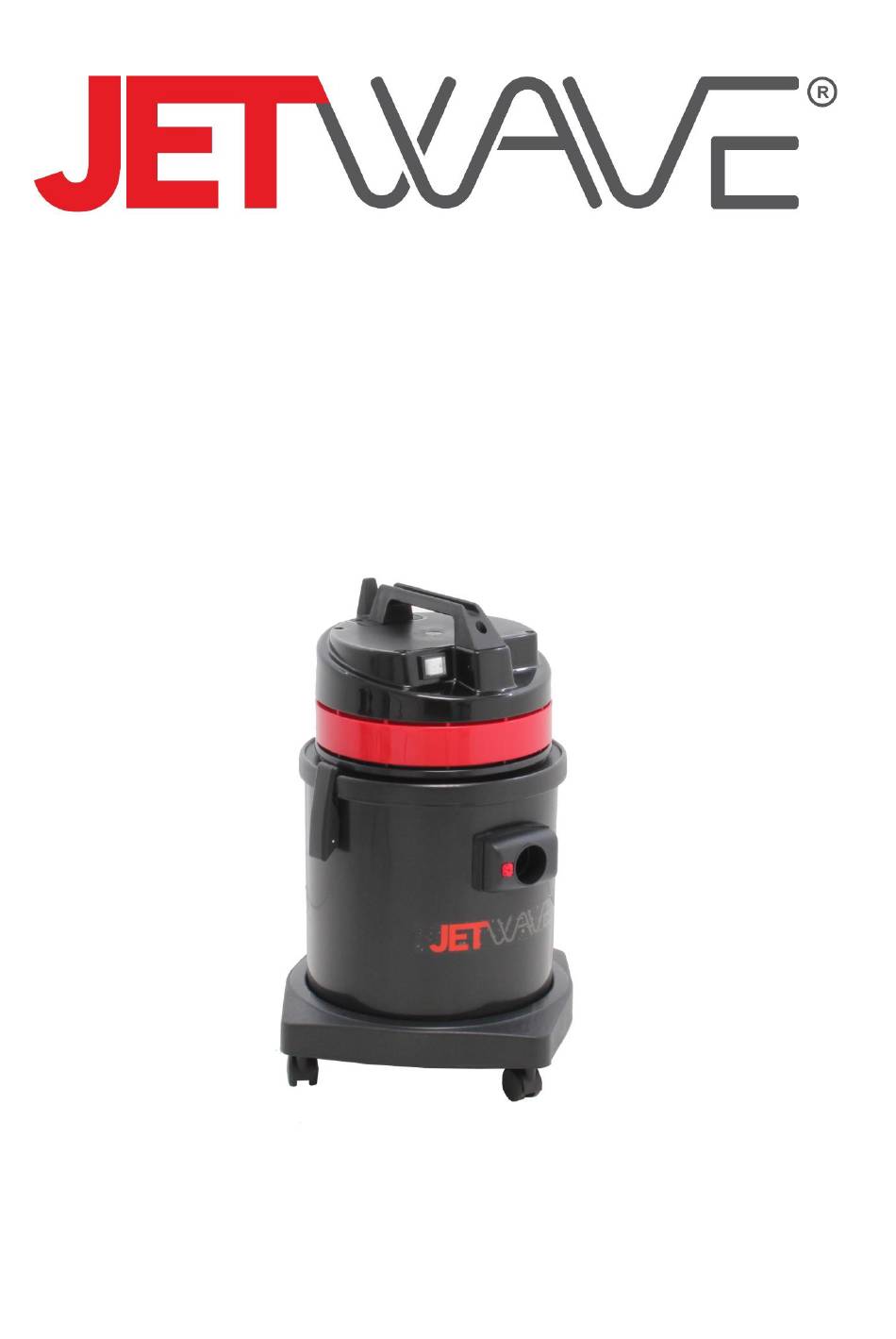

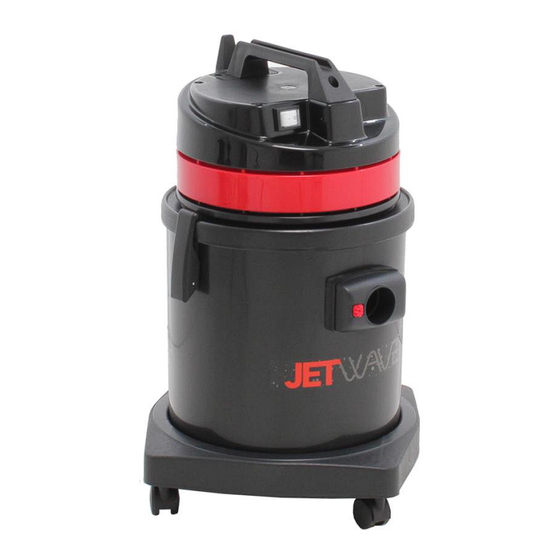

- Page 1 Operating and Maintenance Instructions 515 Wet and Dry Industrial Vacuum Cleaner ...
-
Page 2: Warranty
No products can be returned to us without our prior permission. The reason for return must be clearly stated. This warranty does not affect your statutory rights. Before preceding with assembly of your new JETWAVE 515 PVC Vacuum Cleaner, check that all the parts listed below are included: 1 x JETWAVE 515 Vacuum Cleaner... - Page 3 Periodically examine the mains cable and machine for damage. If any damage is found contact your local JETWAVE service centre for repair PLEASE NOTE: In order to keep the machine in good condition, it is useful to clean the polyester filter after each utilisation.
-
Page 4: Parts Breakdown
PARTS BREAKDOWN 515 Head POS. CODE DESCRIPTION ° POWER CABLE POWER CABLE GROMET POWER CABLE RETAINING CLIP 1006 SCREW 5 x 20 ZINC TERMINAL BLOCK 2928 ELECTRIC BOX 2627 SCREW 5 x 40 ZINC 2927 HANDLE 1026 SCREW 5 x 30 Zinc... - Page 5 Body POS. CODE DESCRIPTION N° 2665 TANK 515 1301 RIVET 5X11 1847 PLASTIC HANDLE 1026 SCREW 5X30 ZINC 2846 INLET SPACER 2585 PACKING 2608 SPRING 2593 DEFLECTOR 2594 RETAINING CLIP 2583 INLET OUTER COVER Base POS. CODE DESCRIPTION N° 1218...
- Page 7 Never use the equipment near flammable, explosive, or, toxic substances. For further information please contact Head Office Jetwave Group Pty Ltd 72-74 Richmond Road Keswick, SA, 5035 Telephone: +61 8 8371 3599 Facsimile: +61 8 8371 4497 Website : www.jetwave.com.au...
