R18PCS110

Advertisement

loading
Need help?

Need help?

Do you have a question about the R18PCS110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi R18PCS110

Summary of Contents for Ryobi R18PCS110

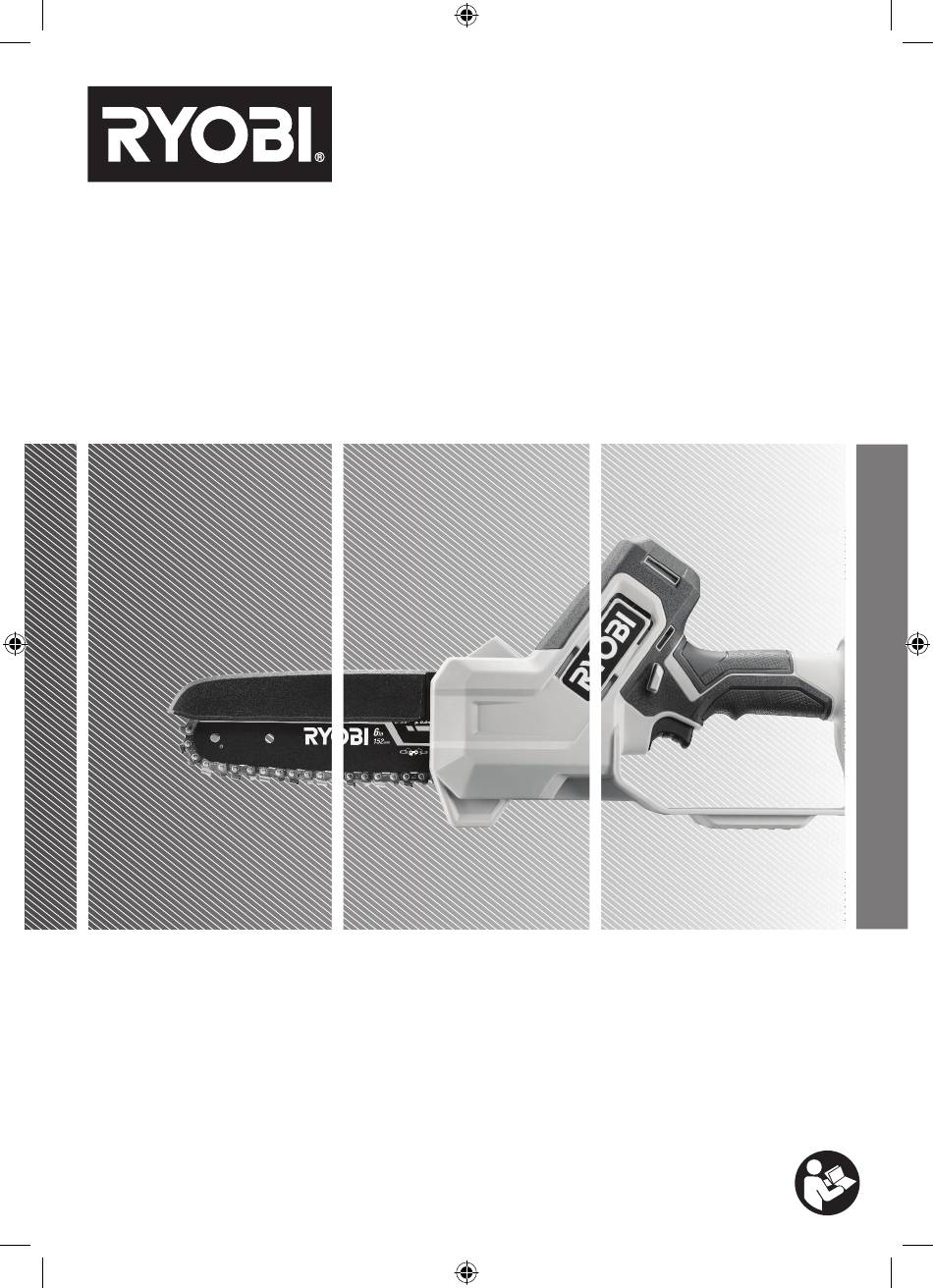

  • Page 1 R18PCS110...

  • Page 2: Intended Use

    ■ When operating a power tool outdoors, use an IMPORTANT! extension cord suitable for outdoor use. Use of a It is essential that you read the instructions in this manual cord suitable for outdoor use reduces the risk of electric before assembling, operating, and maintaining the shock.
  • Page 3 Power tools are dangerous in the hands of untrained GENERAL PRUNING SAW SAFETY WARNINGS users. ■ Keep all parts of the body away from the saw chain ■ Maintain power tools and accessories. Check for when the pruning saw is operating. Before you start misalignment or binding of moving parts, breakage the pruning saw, make sure the saw chain is not of parts and any other condition that may affect the...
  • Page 4 CAUSES AND OPERATOR PREVENTION OF KICKBACK: ■ Do not put pressure on the saw at the end of the cut. Be ready to take on the weight of the saw as it cuts free Kickback may occur when the nose or tip of the guide bar from the wood.

  • Page 5: Transportation And Storage

    INSTRUCTIONS CONCERNING THE PROPER TECHNIQUES FOR BASIC LIMBING AND CROSS- CUTTING UNDERSTANDING THE FORCES WITHIN THE WOOD When you understand the directional pressures and stresses inside the wood, you can reduce the pinches or at least expect them during your cutting. Tension in the wood means the fibres are being pulled apart, and if you cut in this area, the kerf or cut tends to open as the saw goes through.

  • Page 6: Maintenance Schedule

    bars increase the risk of loss of control during sawing. MAINTENANCE Regularly check the chain tension. When cutting smaller ■ Use only original manufacturer’s replacement parts, branches (less than the full length of the guide bar) the chain accessories, and attachments. Failure to do so can cause is more likely to be thrown off if the tension is not correct.

  • Page 7: Symbols In This Manual

    Hold and operate the saw properly with both hands. Do not operate the saw using only one hand. Beware of pruning saw kickback and avoid contact with bar tip. Do not touch below. Guaranteed sound power level Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.
  • Page 9 R18PCS110 Control handle Trigger release Auxiliary handle Chain guard Guide bar Saw chain Chain tensioner knob Guide bar locking knob Sprocket cover Switch trigger Guide bar cover Operator’s manual Battery pack Charger Know your product...
  • Page 10 Wear full eye protection, ear protection, Remove the guide bar cover. Turn the guide bar locking knob head protection, non-slip heavy-duty counterclockwise to unlock. gloves, substantial footwear, protective clothing at all times while operating the product. Do not operate the product when barefoot or wearing open sandals.
  • Page 11 2.5-3.5 mm Adjust the chain tension until the gap between the cutter in the chain and the bar Turn the guide bar locking knob is between 2.5 and 3.5 mm. Turn the chain tensioner knob clockwise to increase clockwise until it locks into place. the chain tension and counterclockwise to reduce the chain tension.
  • Page 12 Replacing the Cleaning the p.13 p.16 product chain and bar Storing the product p.17...
  • Page 13 REPLACING THE CHAIN AND BAR 1. Press the latches on the battery pack and remove it from the product. 2. Turn guide locking knob counterclockwise to unlock. 3. Turn chain tensioner knob counterclockwise to loosen the sprocket cover. 4. Remove the sprocket cover. 5.
  • Page 14 6. Turn chain tensioner screw counterclockwise, and remove the chain tensioner assembly from the guide bar. 7. Attach the chain tensioner assembly to the guide bar. Turn the screw clockwise to tighten and secure the chain tensioner assembly. 8. Place the saw chain so that the cutters face the correct direction, the drive links are aligned and inside the bar groove, and there is a loop at the back of the...
  • Page 15 10. Attach the sprocket cover over the sprocket and chain tensioner assembly. 11. Adjust the chain tension until the gap between the cutter in the chain and the bar is between 2.5 and 3.5 mm. Turn the chain tensioner knob clockwise to increase the chain tension and counterclockwise to reduce the chain tension.

  • Page 16: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the latches on the battery pack and remove it from the product. 2. Remove all foreign materials from the product with a soft, dry brush. WARNING: Do not use water to clean the product. Maintenance...

  • Page 17: Storing The Product

    STORING THE PRODUCT 1. Press the latches on the battery pack and remove it from the product. 2. Install the guide bar cover. Always install the guide bar cover when storing or transporting the product. 3. Store the product in a cool, dry, and well-ventilated area that is inaccessible to children.

  • Page 18: Product Specifications

    PRODUCT SPECIFICATIONS REPLACEMENT PARTS Cordless pruning saw Manufacturer TRILINK Model R18PCS110 Chain CL14328FPB Rated voltage 18 V d.c. M1430628-1039 No-load speed 4.4 m/s NOTE: The chain must be fitted with the bar from the same manufacturer according to above combinations.
  • Page 20 Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand TRILINK is a registered trade mark of Trilink Saw Chain, LLC. RYOBI is a trade mark of Ryobi Limited, and is used under license. 961087638-01...
