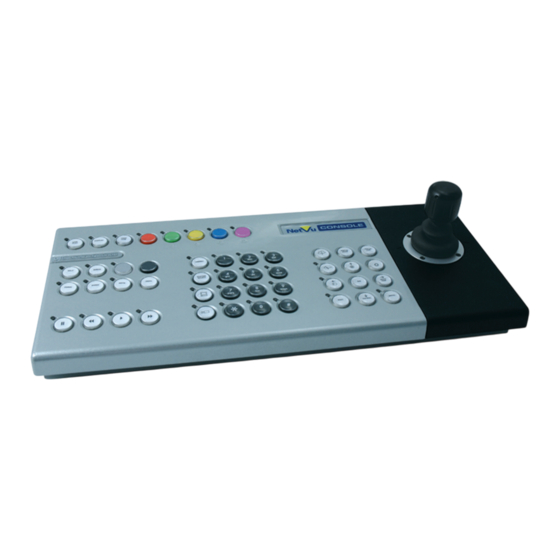

Dedicated Micros NetVu Console Setup Manual

Hide thumbs Also See for NetVu Console:

Advertisement

Quick Links

Download this manual
NetVu Console
Setup Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the NetVu Console and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dedicated Micros NetVu Console

Summary of Contents for Dedicated Micros NetVu Console

  • Page 1 NetVu Console Setup Guide...

  • Page 2: Table Of Contents

    Appendix C ................ 52 Notes .................. 54 Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or modify the specification of the machine described herein without prejudice. Dedicated Micros ©2008...
  • Page 3 With the introduction of the NetVu Console, this all changes, a new era of CCTV is born. The NetVu Console ensures multiple DVR systems can seamlessly be linked to a single point of control with only an Ethernet network connection.

  • Page 4: Features

    The NetVu Console includes a unique colour-coded, soft key menu structure and on-screen Graphical User Interface (GUI). Context sensitive, the menu structure always represents the area of the menu the user is in, allowing them to quickly select the options and settings they need without having to trawl through menu pages and options.

  • Page 5: Design Of The Manual

    With no need for a telemetry keyboard, users are able to utilise Pan & Tilt control of a Dedicated Micros Oracle Dome simply by clicking an area of the monitor. The camera will instantly respond, positioning the selected area in the middle of the screen, ideal for tracking movement through a scene.

  • Page 6: Important Safeguards

    CE Mark If this product is marked with the CE symbol it indicates compliance with all applicable directives. Directive 89/336/EEC. A ‘Declaration of Conformity’ is held at Dedicated Micros Ltd., 1200 Daresbury Park, Daresbury, Cheshire, WA4 4HS. CE NOTICE (EUROPEAN UNION) This product is marked with the CE symbol and indicates compliance with all applicable Directives.

  • Page 7: Components Supplied

    This product is compliant with Class A ICES-003 Components Supplied Before installing the unit, please remove the components from the packaging and verify that all items listed below have been supplied: • NetVu Console Codec • NetVu Console Keyboard • NetVu Connected IR Remote Control •...

  • Page 8: Installing The Netvu Console

    Installing the NetVu Console The NetVu Console consists of two parts, the Keyboard and the Console. The Console has connectors on the rear of the unit. Connectivity Diagram Choosing a location for installation The unit is designed to be desk mounted. The following precautions must be taken during installation: •...

  • Page 9: Console Connections

    LED’s PWR ON Green STATUS Green The NetVu Console has two Media slots on the front of the unit (for future development). CF SLOT Compact Flash media slot (for future development) SD SLOT SD media slot (for future development) Dedicated Micros ©2008...

  • Page 10: Installation Procedure

    Installation procedure Step 1 Connecting Optional Local DVR’s Digital video signals are received over the network, however the NetVu Console additionally Console additionally additionally supports two local video inputs (allowing analogue video sources to be used as spot monitor inputs).
  • Page 11 Step  Serial Connection The Serial port on the NetVu Console is configurable for serial mouse control or debug operation. Note: An internal link change is required for debug operations, refer to Appendix A for guidance. Step  Connecting the Keyboard The NetVu Console Keyboard can be connected via the RJ12 connector labelled KBD.
  • Page 12 Step  Connecting Network THE NETVU CONSOLE SUPPORTS A 10/100MBPS AUTO-DETECTING NETWORK PORT. USE A PROPERLY SCREENED ETHERNET CABLE TO CONNECT THE UNIT TO THE NETWORK. By default the unit is configured for DHCP i.e. the unit is automatically allocated an IP address from a network DHCP server.
  • Page 13 Step  Connecting Power The NetVu Console is supplied with an external power supply. Connect the PSU to the unit and then to the power source. The Power LED (labelled PWR) will illuminate when power is successfully connected to the unit.

  • Page 14: Remote Control

    (when available). Use this button to cycle through available cameras. Button functionality for future development. Press the Menu button to enter the Configuration menus. Press the Exit button to leave the Configuration menus. Dedicated Micros ©2008...
  • Page 15 The Number pad should be used to select specific cameras and preset positions when available (1-99). Use the Playback buttons to interrogate recorded images. Use the LIVE button to switch from Playback or menus to a LIVE display. Dedicated Micros ©2008...

  • Page 16: Keyboard

    Keyboard The NetVu Console Keyboard enables a high degree of control over connected cameras. Button Description Function LIVE Live/Play Puts the unit into Live mode. PLAY Display Button functionality for future development. Button functionality for future development. DISPLAY HIGH High/Low Button functionality for future development.
  • Page 17 Select a System using this button to open the system SELECT select function and press a numeric key, refer to ‘Using the NetVu Console’. This will self cancel if no number keys are pressed. Monitor Button functionality for future development.
  • Page 18 Menu and on screen navigation button. Direction arrow right Menu and on screen navigation button. AUTO Menu / On screen action confirmation or enter. Menu Enter menus on Console or Dome if telemetry is active. MENU Exit Exit menus or escape. EXIT Dedicated Micros ©2008...

  • Page 19: Accessing The Netvu Console

    Accessing the NetVu Console The NetVu Console can be configured either on a local monitor or via a network connection and a PC with Internet Explorer or similar browser. Both have near identical interfaces. Accessing the menus on a local monitor The Configuration menu pages can be displayed on the local monitor (via BNC Connector labelled VID OUT on the rear of the unit).

  • Page 20: Accessing The Configuration Web Pages

    Numeric or text data is entered using the on-screen Virtual Keyboard (Arrow Key Editor). To display the Virtual Keyboard, navigate to the relevant text input box using the Directional buttons and press the OK button on either the Remote Control or the NetVu Console Keyboard. The Virtual Keyboard is displayed.

  • Page 21: Configuring The Netvu Console

    Configuring the NetVu Console System This menu details general information about the unit, including the version of software installed, the unit’s serial number and the allocated DHCP IP address. Product Descriptor Details the product model. Machine Serial Number Identifies the unit’s serial number.
  • Page 22 High, Medium or Low resolution. The default setting is Medium. Note: These configurations can be changed on a NetVu Server or DVR. Default Multi Display This controls how the NetVu Console will display the multiscreen option when selected via the Viewer menus. The default setting is 16 way.
  • Page 23 If local analogue connections are not being used, select ‘Network”. Note: For more information on product types, please contact Dedicated Micros technical support. Reset Unit To Defaults (Green) Select to return the unit to factory default settings.
  • Page 24 IP address allocated on power up. DHCP Subnet If the unit is utlising a DHCP server, this will be the subnet of the network the unit is connected to and will automatically be allocated by the DHCP server on power up. Dedicated Micros ©2008...
  • Page 25 This option allows a time limit to be set (in seconds) for attempted connection to a camera. If a connection cannot be established within this time limit, a ‘Camera Failed’ message will be displayed in place of any camera footage. Dedicated Micros ©2008...
  • Page 26 S��stem Config The NetVu Console can address up to 20 systems, each one allowing access and control of up to 99 cameras on the system at any one time. It is also possible to use the spot monitor analogue feed from two local servers to provide video �this will give improved telemetr��...

  • Page 27: Systems Overview

    Remote Cam Num Identifies the number the camera is allocated on its server. Selecting this number via the NetVu Console will not result in images from that camera being displayed. Server URL Identifies the URL address of the server the camera is located on.

  • Page 28: Map Config

    Map Config The Map Config menu enables the configuration of maps displa��ed in the NetVu Console’s Viewer Menus. Maps can be linked from an e�ternal PC or Server and individual hotspots added at specific camera locations on each map. It is then possible to select a specific camera b�� clicking the relevant hotspot on the map.
  • Page 29 ‘origin’ position, 180 would send it to face in the opposite direction of its origin position (refer to the ‘PTZ Profile’ menu page for information on establishing an Origin position for a PTZ camera). Dedicated Micros ©2008...

  • Page 30: User Accounts

    Modify or Delete. Note: If viewing the User Accounts page via a local monitor and navigating with the IR Remote Control, press the right directional button from the menu tree to access the Account List. Dedicated Micros ©2008...

  • Page 31: Leaving The Configuration Pages

    Press the Exit button on the I R Remote Control / Keyboard (or select the Exit option in the menu tree if viewing via a local monitor�� to close the configuration pages. All changes are automaticall�� saved. I R Remote Control NetVu Console Keyboard Menu Tree (Local Monitor Only) Dedicated Micros ©2008...

  • Page 32: Using The Netvu Console

    Using the NetVu Console Understanding the NetVu Console The Console is designed to connect to multiple servers and organise them into systems for quick and easy monitoring and reviewing of recorded video. Combined with the colour key navigation �which is reflected in the Ke��board, IR Remote Control and on-screen menus��, the Console requires ver��...

  • Page 33: Operating The Netvu Console Viewer

    Operating the NetVu Console Viewer Navigation is via a colour coded softkey system. The coloured menus provide an intuitive approach to operator and installer use. The coloured keys on the IR Remote Control and Keyboard correspond to the menu options displayed on screen. To display the colour coded menu options, press the OK button on the IR Remote Control / Keyboard, or click the mouse button.
  • Page 34 (if one has been configured for the system being accessed) with ‘hotspots’ showing camera locations. A camera can be viewed by selecting the corresponding hotspot. Purple Next Opens the next page of the Viewer menu. Dedicated Micros ©2008...

  • Page 35: Video Control

    Note: Camera selection via this feature is only temporary. If Quad or Multiscreen view is selected, the camera selected via the Quick Start drop down menu will not be shown in the top left corner of the display. Dedicated Micros ©2008...
  • Page 36 Press the Aux button followed by the relevant numeric button or via the number box displayed on-screen Blue Prof Opens the Preset programming menu, refer to PTZ Profile menu. Purple Next Opens the next page of the Viewer menu. Dedicated Micros ©2008...
  • Page 37 / out. The Keyboard joystick can also be used to manoeuvre the camera. Zoom IN / OUT When displayed, use these buttons to zoom in / out of the displayed image or by controlling the camera (depending on mode selected). Dedicated Micros ©2008...
  • Page 38 Any command that sends the camera to a coordinate will use this origin as its starting point. Refer to Map Config -> Hotspot Origin for more information). Purple Back Returns to the previous page of the Viewer menu. Dedicated Micros ©2008...

  • Page 39: Map Options

    Refer to ‘Map Config’ for further details on creating Camera Maps Purple Next Opens the next page of the Viewer menu. Note: For information on creating System Selection and Camera Selection maps. Refer to the ‘Map Config’ section for further details. Dedicated Micros ©2008...
  • Page 40 Selection Pages The Selection page allows access to various NetVu Console image and event playback functions. Play Switches the selected camera(s) shown onscreen into Play mode. Green Goto Opens the Video Timeline menu. Yellow Event Displays the Events menu. Blue...

  • Page 41: Timeline Navigation

    Selecting the Exit (Purple) button will always exit the Timeline Navigation menu. Note: Depending on the scale used to review the video i.e. Seconds, Minutes, Hours, or Days, the above softkey options will differ, however the same intuitive principles remain. Dedicated Micros ©2008...

  • Page 42: Change Scale

    Increase Scale button (Blue) Increases the scale of the timeline by one step i.e. if the scale is currently one hour, selecting this button will increase it to four hours, selecting it again will increase it to one day etc. Dedicated Micros ©2008...
  • Page 43 Right Navigation Arrow will play video from one hour in advance. This can also be selected via the Yellow softkey button. Dedicated Micros ©2008...
  • Page 44 Plays the event and displays the Video Controls toolbar. Green Live Returns to Live video from the currently selected camera. Yellow Event- Opens the previous event. Blue Event+ Opens the next event. Purple Next Opens the Play menu for the currently displayed event. Dedicated Micros ©2008...

  • Page 45: How Do I

    This section should provide the quick key stroke navigation required to access the most popular features of the NetVu Console. This page should be copied and kept near the Console. All navigation is from the Live viewing page, from the initial menu. The system remembers the last navigation and will always start from that point.

  • Page 46: Menu Map

    Multi Next Map Menu System Cameras Video Control Pause Rewind Play Forward Next Telemetry Preset PTZ/ePTZ Prof Next Prof Menu Store Set Origin Next Selection Play Goto Event Setup Back Event Menu Play Live Event- Event+ Next Dedicated Micros ©2008...
  • Page 47 With mains power switched off, unscrew the mounting screws that attach the lid of the NetVu Console. Fit link to J1 to enable the serial port to operate for RS232 purposes. Link J1 is located in the centre of the lower PCB. Re-attach the lid of the unit.

  • Page 48: Download New Software

    Note: Other FTP Client software is available. The following information relates specificall�� to the Filezilla application. The NetVu Console’s IP address is required for FTP purposes, refer to Accessing the NetVu Console for information on locating the unit’s IP address.
  • Page 49 • Within the Filezilla main menu, enter the NetVu Console IP address into the ‘Host’ textbox. • Enter relevant Admin FTP log-on details into the ‘Username’ and ‘Password’ textboxes (by default, usernames and passwords are not required: they can be assigned via the User Accounts menu).
  • Page 50 Below is an example of a successful set of commands for unzipping and installing an application upgrade via Telnet: Welcome to the Chipwrights command line processor CW0>dir a:\ Directory listing for Drive a: Path \*.* C1GP .ZIP 2145442 04-06-2008 14:11 - c1gp.zip VIEWER . 0 <DIR> 03-06-2008 13:58 - viewer 2 File(s) 219136 Bytes free, 2426368 Bytes total CW0>upgrade a:\c1gp.zip Creating 3584 KB RAM disk Formatting RAM disk B Unzipping a:\c1gp.ZIP... Archive: a:\c1gp.ZIP extracting: c1gp_app.zip Unzipped Zipped application b:\c1gp_app.zip found Flashing application FLASH: Unprotecting device FLASH: Storing configuration block for main application (ELF size=2145320 bytes) FLASH: Storing main application (17 blocks) FLASH: Finished storing main application FLASH: No errors during verify FLASH: Protecting blocks 0 to 51 CW0>reset System going down for reset Dedicated Micros ©2008...
  • Page 51 Below is an example of a successful set of commands for unzipping and installing a webpage upgrade via Telnet: Welcome to the Chipwrights command line processor CW0>dir a:\ Directory listing for Drive a: Path \*.* WEBPAGES. 0 <DIR> 04-06-2008 14:15 - webpages GUI . 0 <DIR> 04-06-2008 14:15 - Gui VIEWER . 0 <DIR> 04-06-2008 14:15 - viewer INDEX~32.HTM 849 04-06-2008 14:15 - index.html UPDAT~33.SHT 5808 04-06-2008 14:15 - update.shtml ETC . 0 <DIR> 04-06-2008 14:15 - etc QNC . 0 <DIR> 04-06-2008 14:15 - qnc DEBUG~54. 0 <DIR> 04-06-2008 14:15 - debug-parser-web MAPS . 0 <DIR> 04-06-2008 14:15 - maps WEB .ZIP 113135 04-06-2008 14:16 - web.zip WEB2 .ZIP 118112 04-06-2008 14:16 - web2.zip WEB3 .ZIP 56373 04-06-2008 14:16 - web3.zip 12 File(s) 1192448 Bytes free, 2426368 Bytes total CW0>devcopy a:\web.zip \flash\web.zip Copying a:\web.zip to \flash\web.zip Copy complete CW0>devcopy a:\web2.zip \flash\web2.zip Copying a:\web2.zip to \flash\web2.zip Copy complete CW0>devcopy a:\web3.zip \flash\web3.zip Copying a:\web3.zip to \flash\web3.zip Copy complete CW0>reset System going down for reset Dedicated Micros ©2008...
