RED LABEL RL74BR Assembly

WEIGHT CAPACITY
Small Bins - 1.5kg (each)
Large Bins - 2.3kg (each)
Top Tray - 10kg
Bottom Tray - 25kg
Overall Capacity - 154kg
1. Attach both Swivel Castors with brake (7) to the flat, bottom of the Bottom Tray (5) on same side as shown. Secure each castor with
four screws (12) and four nuts (14).
2. Attach both Swivel Castors without brake (8) to the flat, bottom of the Bottom Tray (5) on other side as shown. Secure each castor with
four screws (12) and four nuts (14).
3. Attach Hanging Bars (2) to each Column (1), Secure the Hanging Bars in place by snapping into place on each side of the Hanging Bar
tabs on each column.
4. Attach the Hanging Bar Supports (3) to the ten Hanging Bars. Secure in place with Screws (11).
Note: Check that all Hanging Bar holes are aligned before attaching Hanging Bar Supports.
5. Attach both columns to Bottom Tray (5). Secure in place with Screws (13) and Nuts (14).
6. Attach the ends of two Column Supports (6) placed together to the bottom of each Column with one Screw (15) per column. Attach the
other ends of the Column Supports to the Bottom Tray with Screws (12) and Nuts (14).
7. Secure Top Tray (4) to the Top Tray tabs at the top of both Columns with Screws (12) and Nuts (14).
8. Attach lower Handle Bracket (10) to Column. Secure with a Screw (12). Hold Handle (9) onto attached Bracket, and then attach other
Handle Bracket to Column to secure Handle in place.
9. Arrange Bins as desired. Slide Bin lip over Hanging Bar, making certain Bin is securely in place.
10. Dispose of all packaging material responsibily.

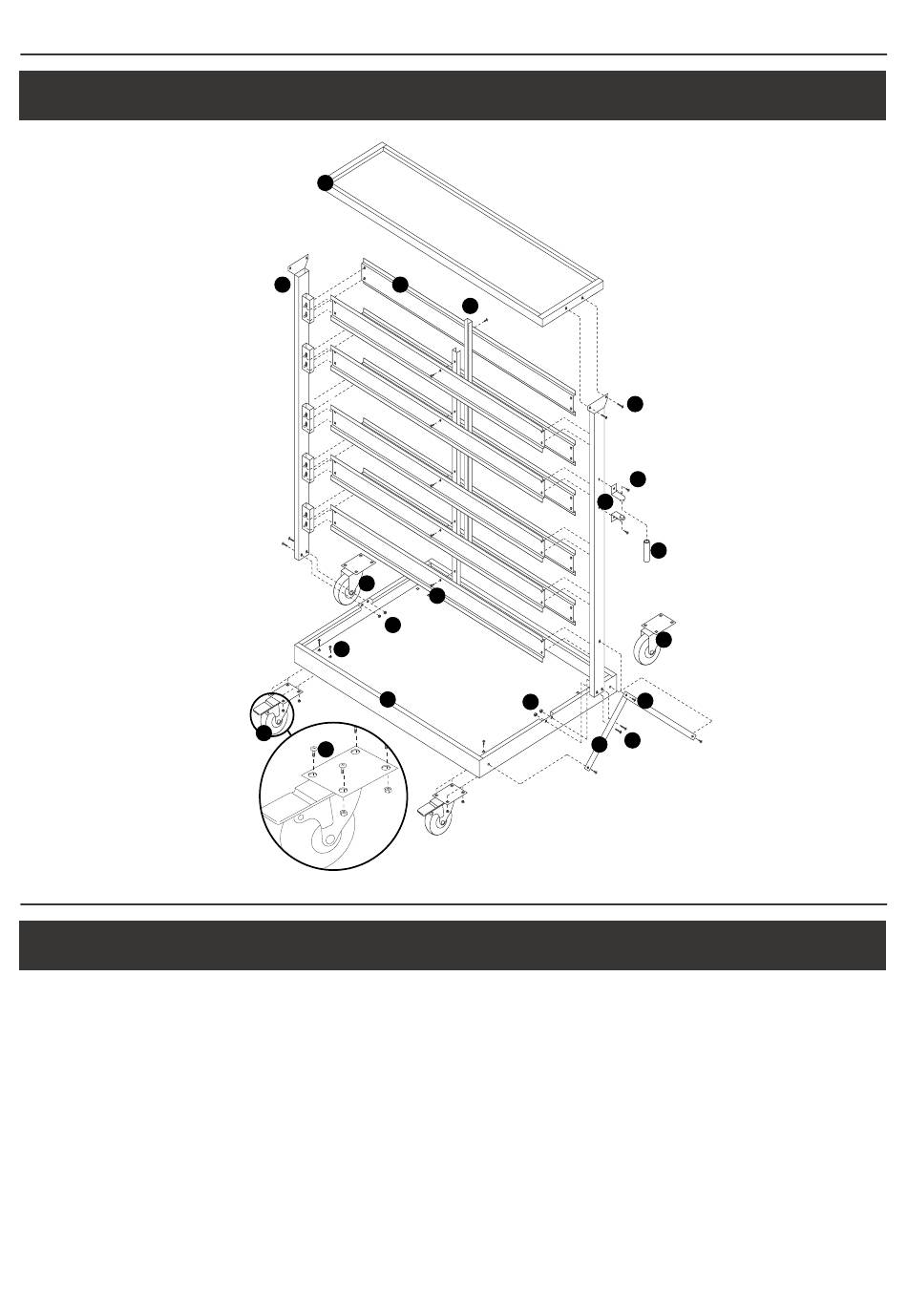

Assembly Diagram
4
1 2
8
11
14
12
5
7
12
Assembly Instructions
TQB Brands Pty Ltd: 1/40 Metrolink Circuit Campbellfield Victoria 3061
Product Code: RL74BR
3
12
12
10
14
13
6
9
8
15
