Allmatic CLARUS Series Quick Start Manual

CLARUS Series Transmitter
CLARUS I, CLARUS VI, CLARUS XII
1. Description
CLARUS I, CLARUS VI and CLARUS XII are 3-buttons transmitters with frequency 433,92 MHz controlled through SAW
resonator, with the innovative variable coding. This coding offers more than 18 billions of billions combinations, granting
security, absence of unwanted activations and operation with 3 buttons OPEN, STOP, CLOSE.
Combining it with the new control units (e.g. PROXIMA, HELIOS PROX) it is possible to obtain a complete and easy to install
system, improving comfort and home control.
Led indicator of
channel and setup menu
OPEN function button
STOP function button
CLOSE function button
CHANNEL SELECTION,
TRANSMISSION
SETUP MENU buttons

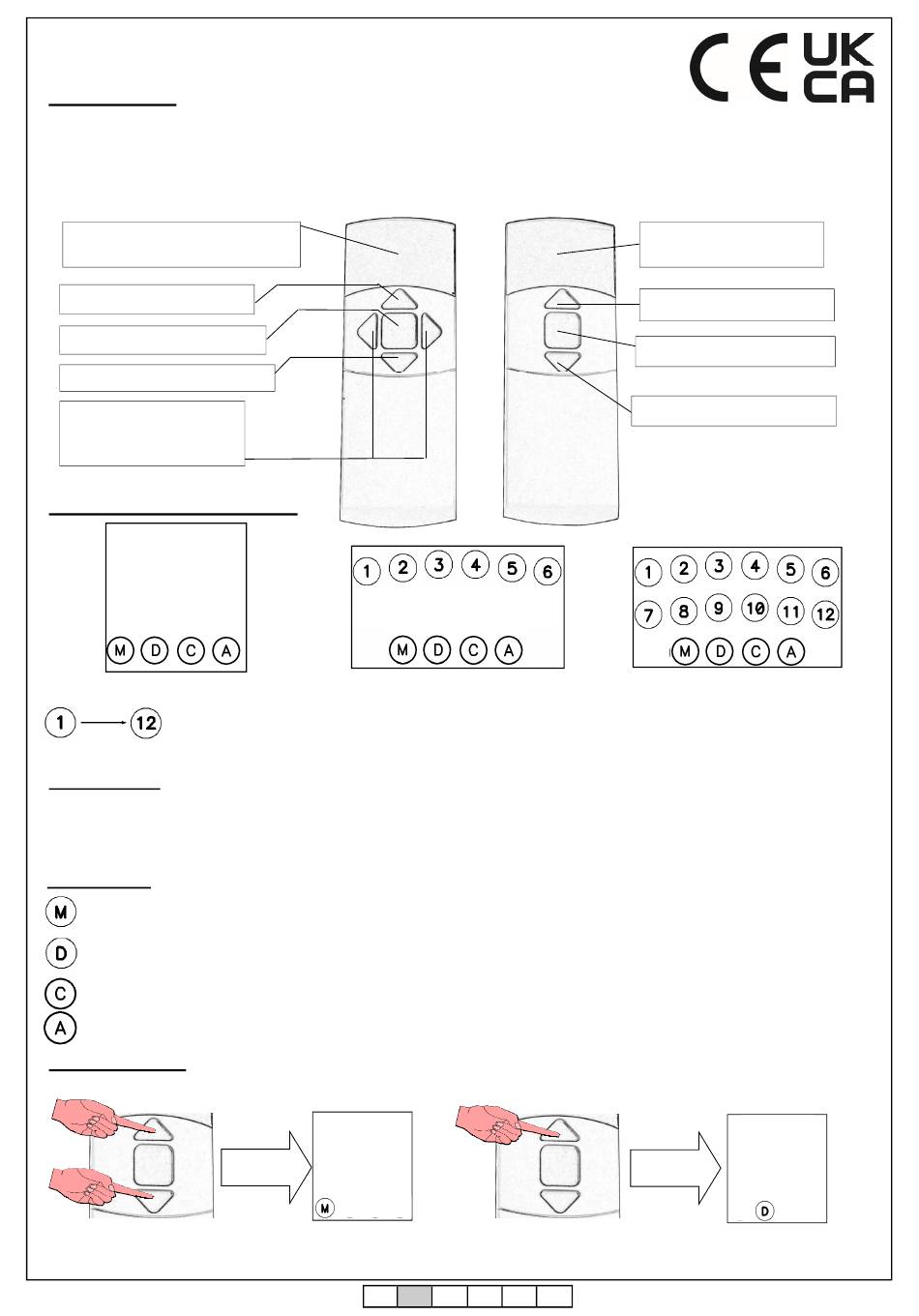

2. Transmitter screen print
CLARUS I screen print
Indication of the selected transmission channel. During Transmission, the led corresponding to the selected
channel will blink quickly when battery level is optimal. If blinking is slow, the charge of the batteries is low and
they must be replaced.
Group function : At the passage from the channel 12 (6 for the CLARUS VI version) to the channel 1 or vice versa, the group function
has been introduced. This function is signalled by the contemporary switching on of all the led of the various channels. The pressure of
a control key (UP – STOP – DOWN) will activate the function sending automatically the selected control in sequence for 1,5 sec. on all
the channels. The channel which is transmitting switches on with high luminous intensity, while the others blink with very low luminous
intensity to indicate that you are utilizing this function. The pressure of any other key stop the transmission sequence.
MENU Option
This function allows the opening of memory in ALL the devices within the range of the transmitter, where the
selected CHANNEL has been previously learnt.
This function allows deleting the SINGLE SELECTED CHANNEL from the memory of ALL the devices within
the range of the transmitter, where the selected CHANNEL has been previously learnt
This function allows cancelling the TRANSMITTER from the memory of ALL devices within the range of the
transmitter, where any of the channels had previously been learnt.
This is an AUXILIARY function
3. Setup menu
• CLARUS I : the setup menu can be entered pushing at the same time the OPEN and CLOSE buttons for 10 se
Push simultaneously the
OPEN and CLOSE buttons
6-1622072 rev. 5 06/12/2022
selected
AND
CLARUS VI screen print
After 5 sec
Access to MENU is
signalled by
lighting of the M led
ITA
Select option with OPEN
and CLOSE buttons
the
ENG FRA ESP DEU POR
Led indicator of selected
channel and setup menu
OPEN function button
STOP function button
CLOSE function button
CLARUS XII screen print
Push once
c.
1 / 2
