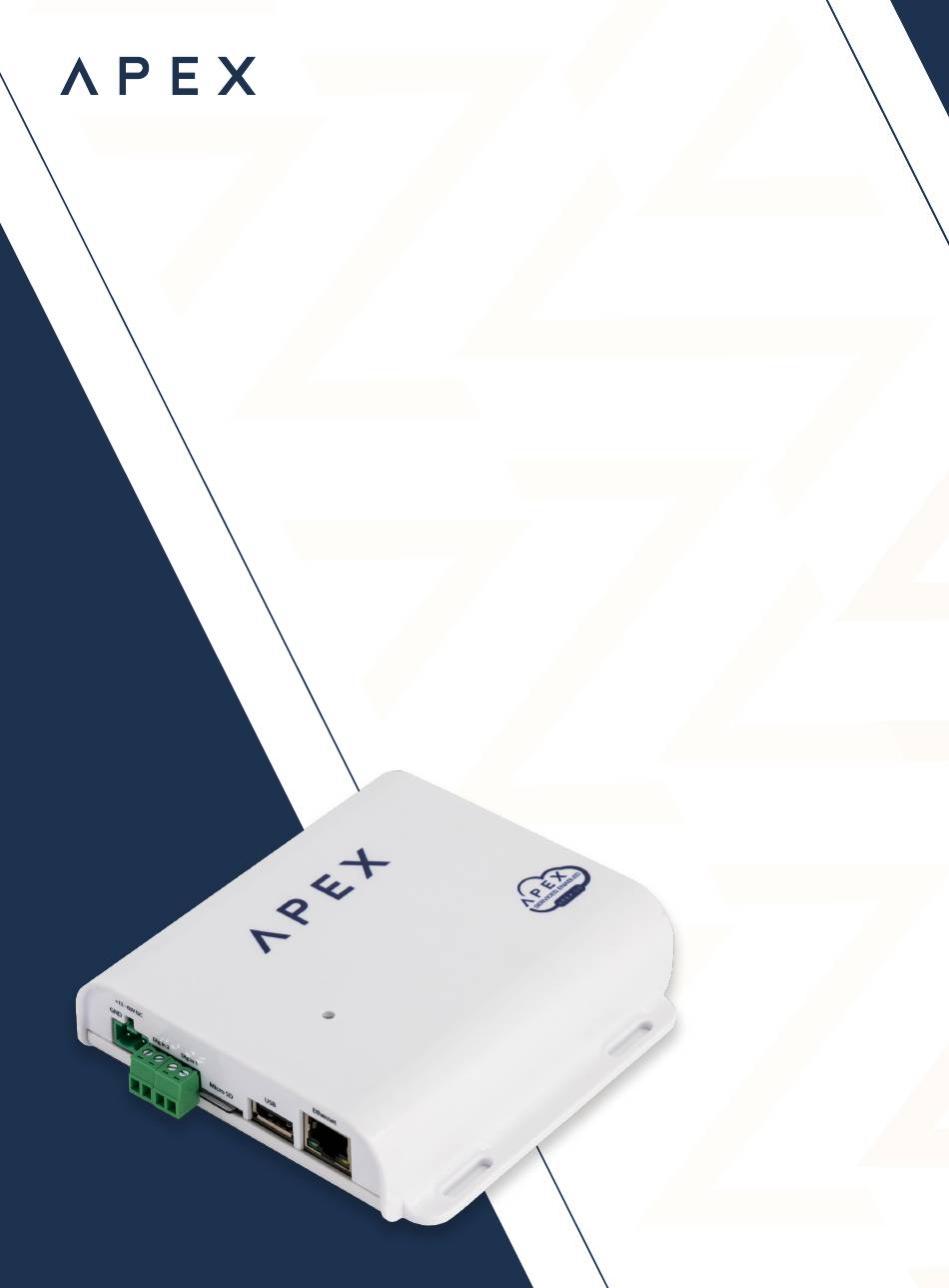

APEX's Edge Device is designed for the monitoring and
control of inverters, energy meters and batteries using
the onboard RS-232, RS-485, CAN bus or USB
interfaces. Supported field devices can be remotely
controlled and managed, while monitoring data is stored
in Apex's Cloud platform, as well as locally logged to the
optional onboard SD Card for a limited period.
For convenience, the device is configured on a local web
interface from your mobile device.
Advertisement
Table of Contents
Related Manuals for Apex Digital Edge Device
Summary of Contents for Apex Digital Edge Device
- Page 1 Edge Device Manual APEX’s Edge Device is designed for the monitoring and control of inverters, energy meters and batteries using the onboard RS-232, RS-485, CAN bus or USB interfaces. Supported field devices can be remotely controlled and managed, while monitoring data is stored in Apex’s Cloud platform, as well as locally logged to the...
-
Page 2: Table Of Contents
Edge Device Table Of Contents: 1. Introduction 1.1 Contents Of The Box 1.2 Device Documentation 1.3 About This Manual 2. Safety Warnings, Hazards And Compliance 2.1 Symbols 2.2 Purpose 2.3 Transport Damage Check 2.4 Staff 2.5 Special Hazards 2.6 General Hazards Resulting From Non-Compliace With Safety Standards 2.7 Legal And Compliance... -
Page 3: Introduction
1.3 ABOUT THIS MANUAL This manual describes the correct use and features of the Apex Edge Device. It includes technical data as well as user instructions and specifications to provide information about its correct functioning. This document is subject to regular updates. -
Page 4: Safety Warnings, Hazards And Compliance
Immediately after receiving the package, make sure that the packaging and the device have no signs of damage. If the packaging shows any sign of damage or impact, damage of the Edge Device should be suspected and it should not be installed. If this occurs, please contact Apex customer service. -
Page 5: General Hazards Resulting From Non-Compliace With Safety Standards
2.7 LEGAL / COMPLIANCE ALTERATIONS It is strictly prohibited to carry out any alteration or modification to the Apex Edge Device or any of its accessories. OPERATION The person in charge of handling the electrical device is responsible for the safety of persons and property. -
Page 6: Device Description
Supported Slave Devices Please contact us for the latest list of drivers 3.2 INDICATORS The front of the Apex Edge Device has a multifunction LED which is used to indicate various states and conditions. LED Colour Status Red - Solid... -
Page 7: Installation
It should never be installed in any location where a potential water leak could occur. MOUNTING THE EDGE DEVICE The Edge Device enclosure provides four mounting tabs with 4mm wide slots for your choice of mounting screws or bolts. The Edge Device should be fixed onto a firm surface. -
Page 8: Wiring Of The Device
4.4 WIRING OF THE EDGE DEVICE Each end of the Edge Device has a row of connectors. These are used for connecting the power, digital I/O, cloud interface and field communications. The following diagrams show the location of the signals:... -
Page 9: Device Power
4.4.1 DEVICE POWER The Edge Device is powered from a DC supply between 12 and 60V DC, typically directly from the system battery. Connect the supplied power cables to the power terminals on the right side of the device (see image above). Connect the other end either to system battery’s terminals or the inverter’s battery terminals. -
Page 10: Commissioning And Operation
Termination resistors are included on the Edge Device and are activated by jumper (see 4.4.2 and 4.4.4) but it may be necessary to add external termination resistors on 3rd party devices falling at the end of a bus. These devices should be terminated with 120Ω... -
Page 11: Wifi And Network Configuration
Edge Device 5.3 WIFI AND NETWORK CONFIGURATION A new Apex Edge device will start up with its own Wi-Fi hotspot active. The hotspot can be identified by browsing available Wi-Fi hotspots with a mobile device and searching for one with a name that contains “APEX”... - Page 12 The Apex Edge Device needs to be connected to a network with internet access for the Web App and the other remote communication and management features to work. You can either use Wifi or Ethernet connectivity or an optional 3G expansion board.
-
Page 13: Configuring Slave Devices
.BIN file into the area provided and tap Update. If an SD card is installed in your Edge Device, it is possible to browse the contents from the SD Card menu. This feature is provided to allow a user to create a copy of the local logs, should they be needed. - Page 14 Edge Device 5.4 CONFIGURING SLAVE DEVICES Having connected your slave devices according to the Communication Wiring section you can now proceed to the device configuration. From the main dashboard, tap “Add new Device” in the Setup area. From the Device list, choose your supported device. The Port will automatically be assigned, according to the available driver.
-
Page 15: Cloud Monitoring Portal
To clean the Edge Device, wipe the exterior surface with a damp (not wet) soft, non-abrasive cloth. Pay attention to the cooling slots and any dust build-up thereon which may affect the ability of the Edge Device to dissipate heat generated. -
Page 16: Warranty
Edge Device 8. WARRANTY The Apex Edge Device is warranted to be free from defects for a period of 2 years from purchase, subject to Apex’s Warranty terms and conditions, a copy of which is available at: www.apexsolar.tech 9. SUPPORT You can contact our support centre for technical assistance with this product or the associated services.
