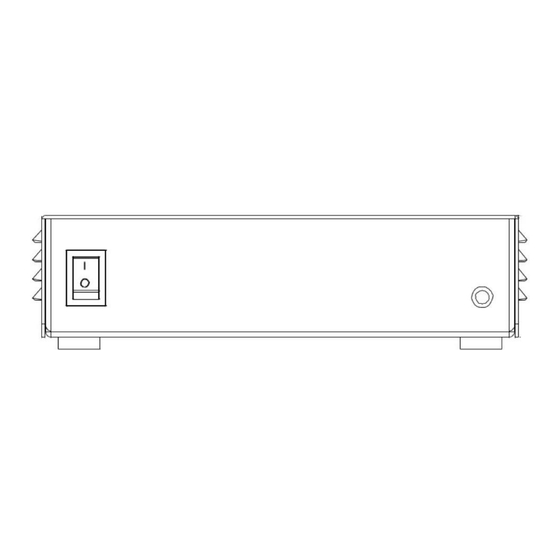

Battery charger (BC-520)
The battery charger is connected to the Pover-Link by a two-wire power cable. The
Pover-Link allows you to charge either the services battery by itself or together with
the engine battery.
The Schuko plug connecting the power unit to the 220V mains supply must be
connected at the outlet to the differential switch, which protects it, and with the
characteristic grounding.
If the power unit is connected to the mains, it is a completely independent
power source and is therefore capable of supplying power even when the
batteries are missing or damaged, or when the battery fuses have blown. This
feature provides a further guarantee of sturdiness for the user.
The BC-520 is part of a new line of programmable intelligent battery chargers,
equipped with protection systems such as monitoring the battery for overvoltage,
undervoltage and polarity inversion. This device allows you to select the right
charging curve for the type of battery being used. Thus, different brands and types of
accumulators can be charged, including standard lead-acid, gel and AGM batteries, as
well as lithium-iron and lithium batteries.
Technical Specifications
Input: 110-230 automatically selected
Rated current 20A@12V
Maximum current: 135% rated current
Float voltage 13.8V
5 Volt mains indicator signal
Protections
Short circuit, overcharge, overvoltage, overheating
Connections
1. ~110/230 AC: VDE standard connector for connection to the electrical mains.
2. CNT1: 3-way male faston connector.
3. SWP1: Switch.
4. ST LED: LED that indicates the charging status.
Dimensions
(LxWxH) 19.2x17.8x4.5 cm 1.4 Kg
Advertisement
Related Manuals for ArSilicii BC-520
Summary of Contents for ArSilicii BC-520
- Page 1 This feature provides a further guarantee of sturdiness for the user. The BC-520 is part of a new line of programmable intelligent battery chargers, equipped with protection systems such as monitoring the battery for overvoltage, undervoltage and polarity inversion.
- Page 2 CNT1 +12V Mains Indicator Charge cycle configuration The charge cycle can be selected using microswitches located on the rear panel: SW 1 SW 2 Description Charge current (CC) Vboost Vfloat Default: programmable via PC. 14.4 13.8 Default: Gel Batteries. 13.6 16 A Default: Lead Batteries.
Need help?
Do you have a question about the BC-520 and is the answer not in the manual?
Questions and answers

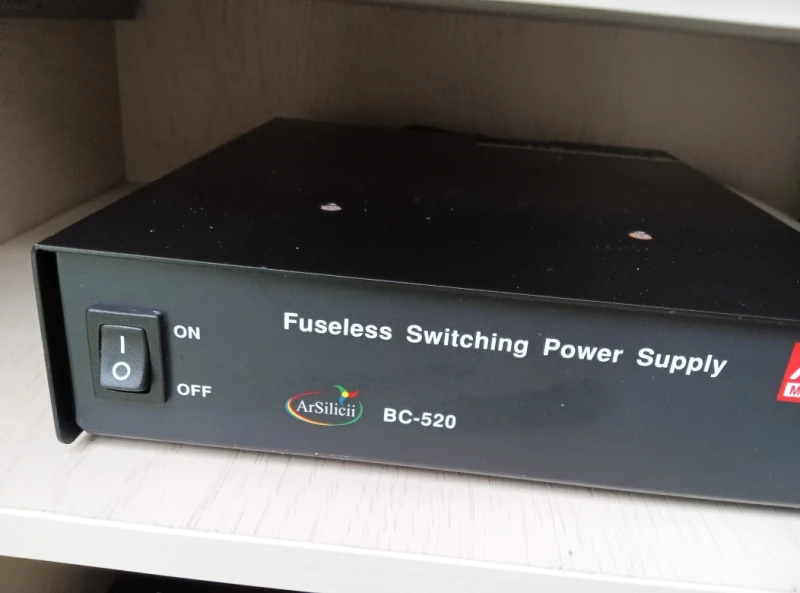

bonjour j'aimerai savoir si le voyant doit etre allumé lorsque le chargeur est sur ON ou a quel moment s'allume t'il ? merci d'avance
