Summary of Contents for BLOX BOXMORE BXS X2.3

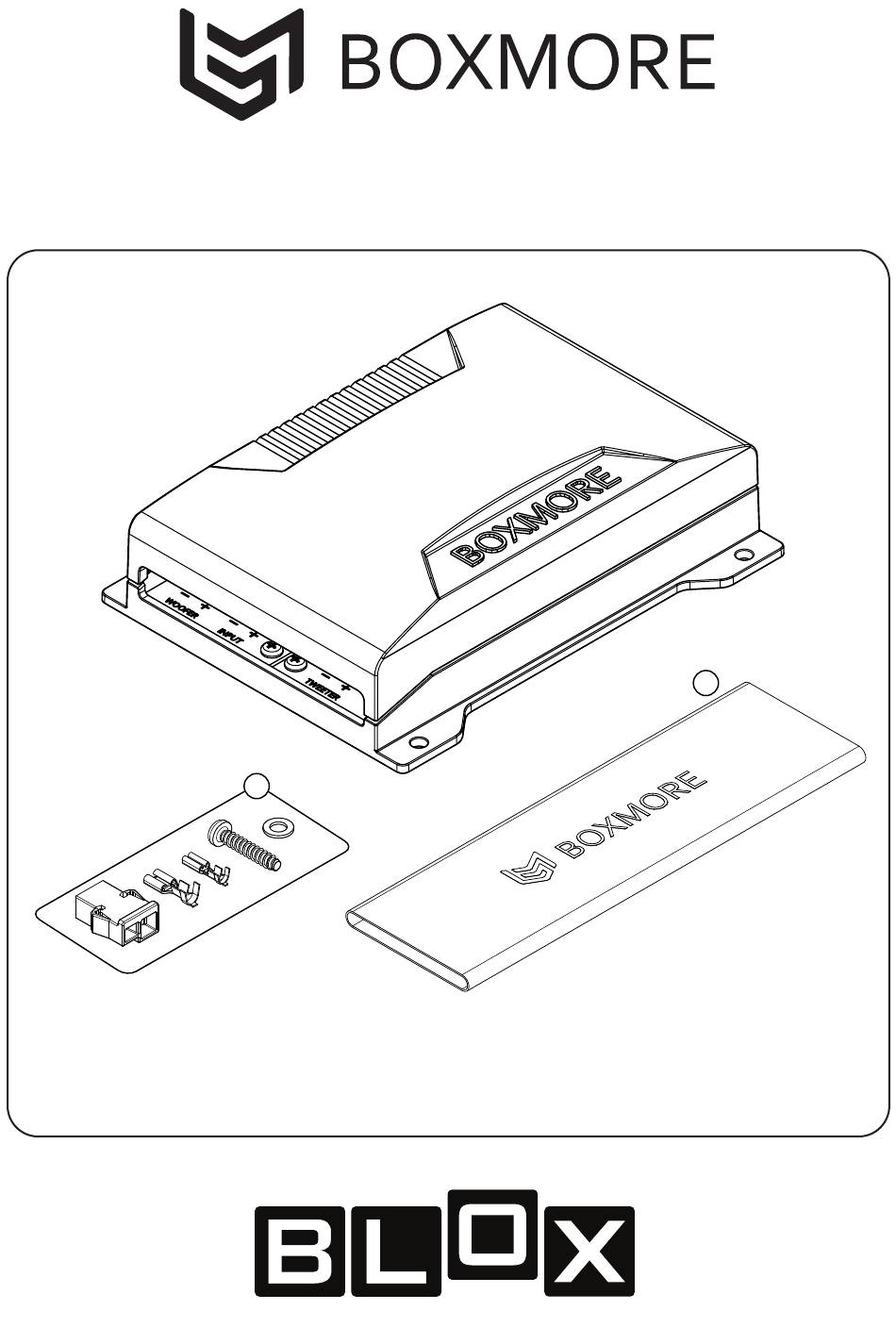

- Page 1 INSTALLATION MANUAL BXS X2.3 CROSSOVER specialist...
- Page 2 Connection Diagram Standard Installation BXA T25 BXS T20RC K100FL K130 K165 C165 K200 INPUT INPUT Split Crossover (TWEETER) Heat shrink tubing BXA T25 BXS T20RC K100FL K130 K165 C165 K200 INPUT (WOOFER)
- Page 3 Connection Use the supplied terminal housings to create a secure connection for the crossover inputs. BOXMORE terminal housings are compatible with most unisolated 2.8 x 0.8 and 4.8 x 0.8 mm Quick Disconnect spade terminals. +2dB incre Tweeter Level The correct tweeter level setting strongly depends on the location of the speakers.
- Page 4 Correct Disposal of This Product (Applicable in the European Union and other countries with separate collection systems) If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
