Summary of Contents for Ayrton IP Test Kit

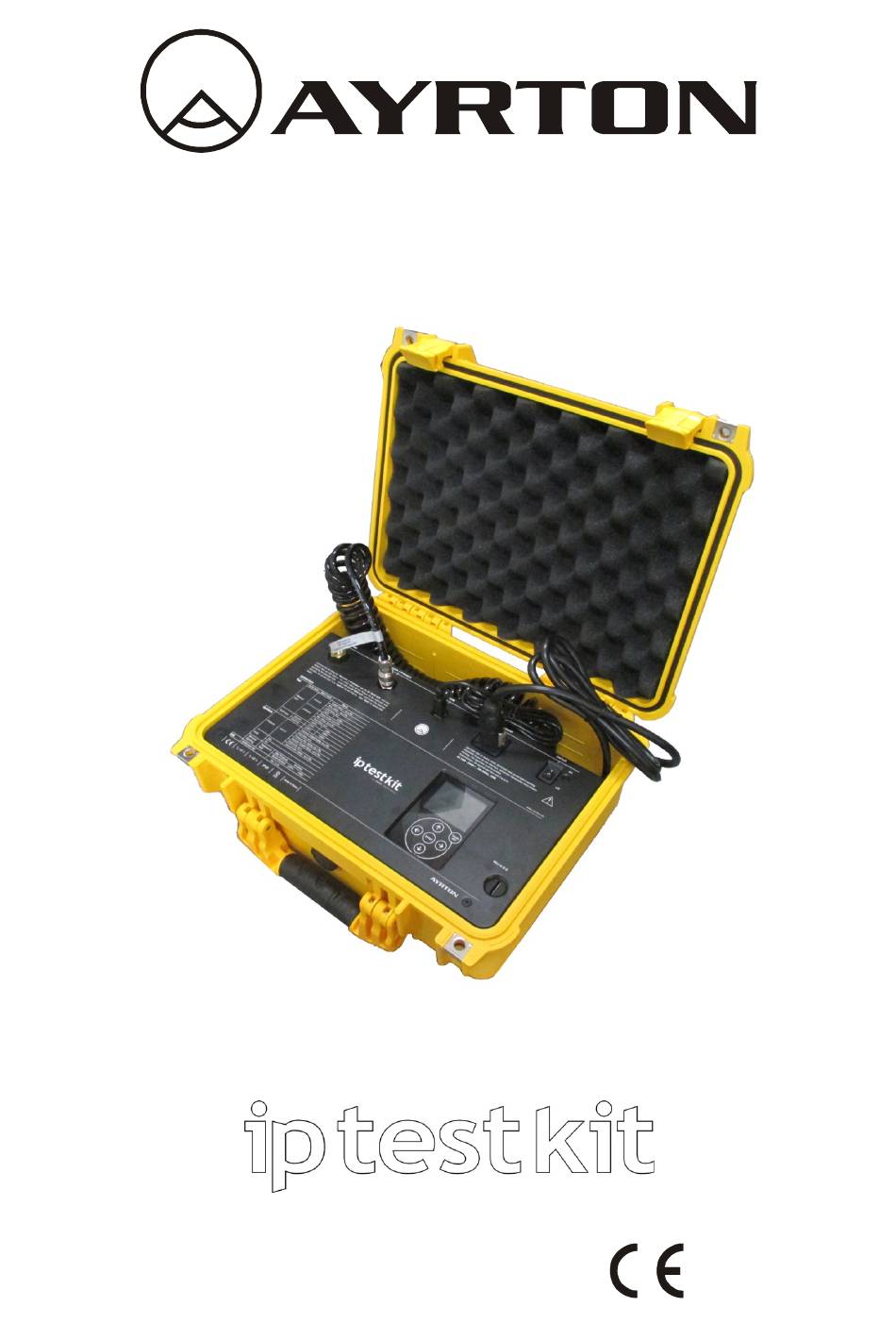

- Page 1 User Manual KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. FEATURES 3. OVERVIEW 4. DIMENSIONAL DRAWINGS 5. TOOLS 6. CONNECTIONS 7. TESTING FUNCTIONS 8. UPDATING IP TEST KIT SOFTWARE FROM PC SOFTWARE 9. CLEANING AND MAINTENANCE... -
Page 3: Safety Instructions
TEST, OR SET THE CORRECT VALUES BEFORE USE. ANY OVERPRESSURE OPERATION MAY CAUSE ACCIDENTAL DAMAGE OR INJURY. WEAR PROTECTIVE GLASSES WHEN USE THE IP TEST KIT. Important: Damage caused by the disregard of this user manual is not subject to warranty.The dealer and manufacturer will not accept liability for any resulting defects or problems. -
Page 4: General Guidelines
• Make sure the power cord is never crushed or damaged by sharp edges.If this should be the case，replacement of the cable must be done by an authorized dealer. • If the external flexible power cord of this device is damaged，it shall be exclusively replaced by the manufacturer or their service agent or a similar qualified person in order to avoid injury. - Page 5 WEIGHT Net weight：8.24 kg...
-
Page 6: Overview
3. OVERVIEW 1) Switch 8) Down - button 2) Power Input 9) Right - button 3) Micro SD 10) Mode/Esc - button 4) Display 11) USB Port 5) Up - button 12) Air In/Out 6) Left - button 13) Vacuum/Pressure 7) ENTER - button... -
Page 7: Dimensional Drawings
5. TOOLS Tools (17mm Socket Wrench) are required to remove the valves on the IP fixtures. Tools are NOT included with the IP Test Kit，it can be purchased from local hardware stores. 6. CONNECTIONS 1. Connect one end of the Air Hose to“Vacuum / Pressure”on the IP Test Kit. - Page 8 3. Remove the other valve from the fixture using a 17mm socket wrench. Then use the provided Bolt to replace and seal the hole of this valve. 4. Connect power cable to the IP Test Kit and switch it on to run the test.
-
Page 9: Testing Functions
7. TESTING FUNCTIONS Auto Test start test/back target value:xxx min. value:xxx Vacuum time hold:xxx OFF/ON Manual Test target value:xxx Test min. value:xxx Pressure time hold:xxx OFF/ON Vacuum OFF/ON Self-Test Pressure OFF/ON Pressure target value:xxx Hold time:xxx Pressure min. value:xxx Fixture xxxxxxxx Vacuum target value:xxx Hold time:xxx... - Page 10 7.1.2. Manual Test Vacuum 1. Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Test” is displayed Press <ENTER>， the display will show “Test” ； Tap the <Up/Down> button until the display will show“Manual Test” Press <ENTER>，the display will show“Manual Test”...
- Page 11 4. The display will show“OFF” ，Press < Right/Left >，the display will show“ON” 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Pressure 1. Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Test” is displayed Press <ENTER>，...
- Page 12 7.2.2. Unit 1. Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Options”is displayed Press <ENTER>，the display will show“Options” 2. Press <Up/Down>，the display will show“Unit” 3. Press< ENTER>，the display will show“Unit” 4. The display will show“kPa” ，Press <Right/Left>，the display will show“psi” 5.
-
Page 13: Updating Ip Test Kit Software From Pc Software
4. The display will show“Vx.x.x” 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 8. UPDATING IP TEST KIT SOFTWARE FROM PC SOFTWARE 8.1. PC Software Installation Compatible with Windows 7，8 and 10 and requires a minimum of 52MB free disk space. - Page 14 Step 2： Select Start Menu Folder， to select different folder location, click “ Browse...” ， and then click“Next >”to continue. Step 3：Select Additional Tasks，select“Create a desktop shortcut”and click“Next >”.
- Page 15 Step 4： “Ready to install” ，click“Install”. Step 5：As the program finishes installing，a dialogue window will prompt you to launch the program. Select Run SETUP.EXE，and select Launch IP TEST KIT if desired，and click Finish.
-
Page 16: Pc Software - Operation
Fixture Display & Data Entry Step 6：Click desktop shortcut to launch IP TEST KIT software. 8.2. PC SOFTWARE - OPERATION Main Software Interface Step 1： Click the“blank”area to upload a new fixture and enter new data. - Page 17 - Import photo：Upload fixture photo in png.Or jpg.Format. - Fixture name：Enter fixture name. - Unit：Choose between kPa and psi. - Pressure target：Enter maximum pressure value. - Pressure min.：Enter minimum pressure value. - Hold Time：Enter number of seconds for Pressure test. - Vacuum target：Enter maximum vacuum value.
- Page 18 8.3. UPDATING IP TEST KIT SOFTWARE FROM PC SOFTWARE Step 1：With the IP TEST KIT connected to your computer via the USB cable and the PC Software open，click“Update”. Step 2： Click “ Browse” and navigate to location of “...IP Test Kit > Program > 1U01_V100.gsd” ，...
- Page 19 Step 3：Click on“1U01_V100.gsd”to select IP Test Kit software update，then click“Open”. Step 4：With the IP Test Kit software update path opened，click“Update”.
- Page 20 4) Power off the IP Test Kit. 5) Power on the IP Test Kit again after 5 seconds (this is to make sure the MCU completely power off). 6) After the screen shown“IP Test Kit”interface，start the upgrade software on the computer in 10 seconds.
-
Page 21: Cleaning And Maintenance
9. CLEANING AND MAINTENANCE The following points have to be considered during inspection： 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations to the housing. 3) The power supply cables must not show any damage，material fatigue or sediment.
