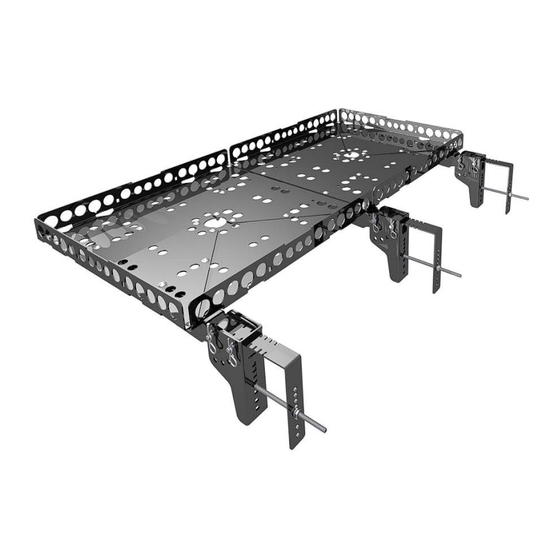

Mount-n-Lock® GennyGo® F3KS2448 Assembly Guide
Tray Kits Fit 4.0, 4.5, 5.3, 6.0 Inch & Other Size RV Bumpers
Visit www.mount-n-lock.com/installs for full-size instructions and videos.
1

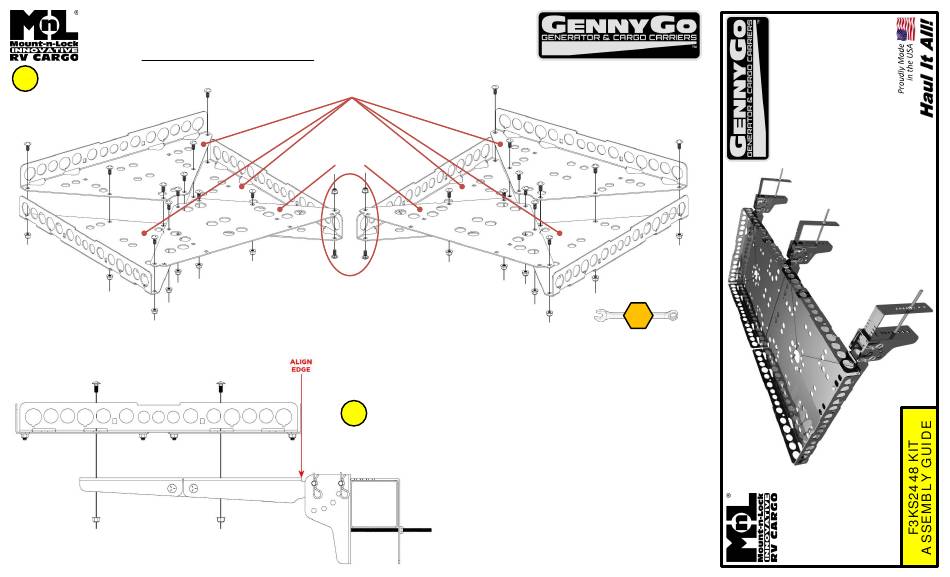

Assemble Tray Pans
Left Pan
© Copyright 2024 BetterBilt Solutions LLC. All Rights Reserved. Patents Pending.
STANDARD WEDGE
SECTIONS (6)
FLAT WEDGE
SECTIONS (2)
Note that these 2
Bolts are INVERTED
Assemble LEFT and RIGHT TRAY PANS from 6
STANDARD WEDGE SECTIONS and 2 FLAT WEDGE
SECTIONS using 24 Nuts & Bolts as Shown.
Mounting Tray Pan
2
to Support Arms - Alignment
STEP 2 - Alignment: Note how TRAY PAN edge aligns with
SUPPORT ARMS. This allows full range of Folding Action.
Right Pan
15
ft-lb
PAGE 1
F3KS2448_v1.vsdx
Advertisement
Related Manuals for Mount-n-Lock GennyGo F3KS2448
Summary of Contents for Mount-n-Lock GennyGo F3KS2448
- Page 1 Mount-n-Lock® GennyGo® F3KS2448 Assembly Guide Tray Kits Fit 4.0, 4.5, 5.3, 6.0 Inch & Other Size RV Bumpers Visit www.mount-n-lock.com/installs for full-size instructions and videos. STANDARD WEDGE Assemble Tray Pans SECTIONS (6) Left Pan Right Pan FLAT WEDGE SECTIONS (2)
- Page 2 Mount-n-Lock® GennyGo® F3KS2448 Assembly Guide Tray Kits Fit 4.0, 4.5, 5.3, 6.0 Inch & Other Size RV Bumpers Visit www.mount-n-lock.com/installs for instructions and videos. 3 Inverted BOLTS Connect LEFT and RIGHT TRAY PANS ft-lb Connect LEFT and RIGHT TRAY PANS using 2 Bolts and Nuts with one of the Bolts being inverted as shown.
