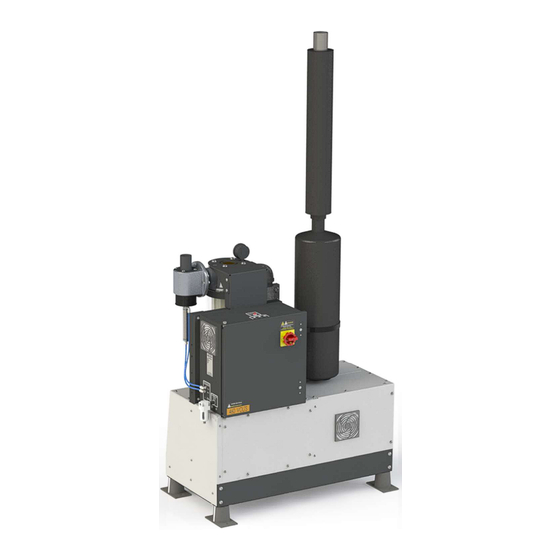

- Page 1 Smart Positive Displacement (SPD) Vacuum Pump Models: SPDS-3/15-46-24; SPDS-5/20-46-24; SPDS-7.5/22-46-24; SPDM-7.5/20-46-24 © 2021 Novatec, Inc. All Rights Reserved Document: “SPD 3-7.5HP IM 31 OCTOBER 2024”...
- Page 2 SPD 3-7.5HP IM 31 OCTOBER 2024 Please record the following information, which is specific to this piece of equipment, in the space provide. In the event of aftermarket assistance, our Parts/Service Department will need this information, along with the manual revision date, to properly respond & assist to any of your requests for the specific equipment installed.
-
Page 3: Table Of Contents
SPD 3-7.5HP IM 31 OCTOBER 2024 Table of Contents INTRODUCTION ..................................5 SERVICE & OPERATION WARNING ............................6 3.) OPERATING LIMITATIONS ..............................6 3.1) Operating at Higher Altitudes…3000FT Above Sea Level or More ..................6 3.2) Seek Time ....................................7 UNPACKAGING ..................................7 GENERAL INSPECTION ................................7 ENGINEERING DATA &... - Page 4 SPD 3-7.5HP IM 31 OCTOBER 2024 APPENDICES: A. Top Level SPD Mechanical Drawing B. Control Drawing Package: Control Panel, Pneumatic & PumpSense Schematics, etc. Table of Figures Figure 1: General System Layout............................. 9 Figure 2: General Pump & Dust Collection Filter Connection ....................9 Figure 3: General Combination Vacuum Breaker &...
-
Page 5: Introduction
SPD 3-7.5HP IM 31 OCTOBER 2024 1.) INTRODUCTION The Novatec SPD vacuum pump is designed to be the next step in vacuum conveying. Traditional vacuum pump technologies, such as positive displacement (PD) & regenerative blowers (RB), are used to pneumatically convey plastic pellets or powders in a conveying system; creating a vacuum to “pull” air through the piping system. -
Page 6: Service & Operation Warning
SPD 3-7.5HP IM 31 OCTOBER 2024 More capabilities become unlocked when paired with Novatec’s FlexXpand Gen 3 (FX3) Central Conveying Control System: Automatic RPM adjustments based on one of four speed selections per loading station (Rabbit, Target, Turtle, Reducer) to accommodate different conveying distances, additive line sizes, materials, and velocities. -
Page 7: Seek Time
SPD 3-7.5HP IM 31 OCTOBER 2024 front cover of this manual to get aid/instructions for adjusting your SPD pump for use at elevations at 3000 feet or more above sea level. 3.2) Seek Time Excessive starting and stopping of the pump will reduce blower and motor life and void the warranty. Seek Time is a control parameter that allows your pump to operate for short periods in vacuum break mode (no vacuum loading) while the system control searches for new demands. -
Page 8: Engineering Data & Specifications
SPD 3-7.5HP IM 31 OCTOBER 2024 6.) ENGINEERING DATA & SPECIFICATIONS 6.1) Application Drawings & Information: SPDS-3/15-XX-24 SPDS-5/20-XX-24 SPDS-7.5/22-XX-24 SPDM-7.5/20-XX-24 Assembly Model CNTL-SPD-3-XX-XX CTNL-SPD-5-XX-XX CTNL-SPD-7.5-XX-XX Electrical Print 6.2) Specifications: Nom. Horsepower (HP) 7.5HP 7.5HP Flow Rate (CFM) 55ACFM 100ACFM 135/155ACFM 115ACFM Line Size 1.5”... -
Page 9: Mechanical Installation
SPD 3-7.5HP IM 31 OCTOBER 2024 7.) MECHANICAL INSTALLATION 7.1) General Installation: Only qualified technicians familiar with local and national codes should install this equipment. Vacuum lines should be installed as shown on the installation drawings. Clean compressed air (80 - 100psig) to be supplied to the air actuated valves as required (A filter, if not supplied, should be installed if the cleanliness of the air is questionable). -
Page 10: Combination Vacuum Breaker & Relief Valve
SPD 3-7.5HP IM 31 OCTOBER 2024 7.2) Combination Vacuum Breaker & Relief Valve The Novatec vacuum breaker valve for system seek operation also serves as the vacuum relief valve to regulate the pump’s workload. The dual functionality is accomplished by utilizing an equilibrium of compressed air pressure and vacuum level in conjunction with the vacuum breaker action, governed by the system’s control panel. -
Page 11: 1) Vacuum Material Pickup Lance/Wand Or Mounted Ambient Carbureted Probe
SPD 3-7.5HP IM 31 OCTOBER 2024 To maximize throughput, conveying lines that run the same material repeatedly will allow it to rest in the lines in-between load cycles. Line purging is another practice where the conveying lines are cleared in-between load cycles. This can simplify line cleanouts, minimize mixed material stagnation or separation from a blending source, prevent plugs at base of excessively tall vertical runs, and minimized moisture regain in dry-air or closed-loop conveying applications. -
Page 12: 2) Vacuum Purge Take-Off (Vpt) Or Vacuum Purge Valve (Vpv)
SPD 3-7.5HP IM 31 OCTOBER 2024 7.4.2) Vacuum Purge Take-Off (VPT) or Vacuum Purge Valve (VPV): Starts & stops material flow on-demand, regulating air/material mixture with material metering. Hard mount to dryer cone discharge, or inline after vacuum probe/lance • Consists of material inlet, outlet, and separate purge air inlet (either ambient or closed- •... -
Page 13: 1) Mounted Closed-Loop Probe
SPD 3-7.5HP IM 31 OCTOBER 2024 Figure 9: General Closed-Loop Conveying Schematic It is recommended, in this style system, to purge the conveying lines & store the minimum possible shot size of the dried material at the destination to avoid excessive heat loss & accumulation of any available moisture. -
Page 14: 2) Discharge Selection Valve (Dsv)
SPD 3-7.5HP IM 31 OCTOBER 2024 7.5.2) Discharge Selection Valve (DSV): Pump exhausts to atmosphere or can be pipe outside of pump room, for use in Closed Loop Conveying Systems. Consists of exhaust air inlet, closed-loop recirculation outlet, and ambient air outlet. •... -
Page 15: Electrical Installation
SPD 3-7.5HP IM 31 OCTOBER 2024 8.) ELECTRICAL INSTALLATION Connect the proper power supply (check nameplate) through a main line disconnect switch (not supplied) to terminal connections L1, L2, L3 and ground into the SPD control box that contains the motor starter. -
Page 16: Base Package
SPD 3-7.5HP IM 31 OCTOBER 2024 Figure 14: PumpSense - General Monitoring 9.1) Base Package: Localized LED status indicators are available on the vacuum pump control box, to provide the pump status at a quick glance. Three indicators give color designated conditions of oil status, filters status, and overall pump health. -
Page 17: Led Indicator Legend
SPD 3-7.5HP IM 31 OCTOBER 2024 Figure 16: PumpSense - Networking & Status Readout 9.2) LED Indicator Legend: The LED indicators used on the unit provide a multitude of color statuses to display active conditions of the pump & its components. Equipment Status Indicators Primary Condition Indicators Blue... -
Page 18: Complete Package (Master Datahub)
SPD 3-7.5HP IM 31 OCTOBER 2024 Oil & Filter indicators are primary maintenance items that have dedicated LEDs for status at a quick glance. The “Check Pump” indicator covers a multitude of other monitored parameters, and will provide the color status of the worst case condition. To access this information, connection via the datahub IP &... -
Page 19: Parts List
SPD 3-7.5HP IM 31 OCTOBER 2024 10.) PARTS LIST 10.1) 460V, Standard & 400V, Alternate SPD SERIES VACUUM PUMPS, STANDARD, 460V (SUBJECT TO CHANGE WITHOUT NOTICE) Model/Part Number Description SPDS-3/15-46-24 SPDS-5/20-46-24 SPDS-7.5/22-46-24 SPDM-7.5/20-46-24 Blower Assembly asSPD-BU-5-PD-Q asSPD-BU-5-PD-Q asSPD-BU-10-PD-Q asSPD-BU-10-MF Drop-In Blower Lubricant VPDB-QT Motor Starter... -
Page 20: Schematics
SPD 3-7.5HP IM 31 OCTOBER 2024 11.) Schematics 11.1) General Electric Schematic 11.2) PumpSense Schematic © 2024 Novatec, Inc. All Rights Reserved Page 20... -
Page 21: Compressed Air Schematic
SPD 3-7.5HP IM 31 OCTOBER 2024 11.3) Compressed Air Schematic 12.) MAINTENANCE & INSPECTION SCHEDULE It is recommended that maintenance and inspection is done on a scheduled basis. Maintenance requirements will naturally vary widely for each installation, specific operating conditions, and whether MachineSense®... -
Page 22: Figure 19: Maintenance - Clearvu Filter Cannister
SPD 3-7.5HP IM 31 OCTOBER 2024 Figure 19: Maintenance - ClearVu Filter Cannister 2. Check the system for air leaks and correct as required. 3. Inspect cooling air circulation fan filters. Clean or replace as required. EVERY MONTH Inspect the vacuum breaker valve filter/silencer. Clean as required. Figure 20: Maintenance - Vacuum Breaker/Idle Valve EVERY 3 MONTHS 1. -
Page 23: Blower Maintenance And Lubrication
SPD 3-7.5HP IM 31 OCTOBER 2024 EVERY 6 MONTHS 1. Check for loose electrical connections. 2. Tighten all bolts and nuts. 12.2) Blower Maintenance and Lubrication Novatec SPD series vacuum pumps include splash lubricated bearings that require no grease, but both the gear &... -
Page 24: Blower Lubrication Type & Capacities
SPD 3-7.5HP IM 31 OCTOBER 2024 Figure 22: Maintenance - Vacuum Blower & Oil Sight Glass Locations Routine “topping off” of oil levels is NOT advised. Each pump examination should include stopping the pump, allowing the oil level to stabilize, and then checking the level in the sight glass windows before adding oil to the required level. -
Page 25: Troubleshooting
SPD 3-7.5HP IM 31 OCTOBER 2024 13.) TROUBLESHOOTING 13.1) No Power or Won’t Start 13.1.1) Verify Incoming Power First, disconnect power at the main junction supplying power to the pump, verify all voltage leads are properly terminated at all components, including: disconnect switch, circuit breaker or fuse block, VFD, and motor terminals. -
Page 26: Poor Vacuum Or Unable To Convey
SPD 3-7.5HP IM 31 OCTOBER 2024 In some cases, interruptions in operational signals can occur at different sections of the circuit/system. Follow the incoming control signal wiring from the main controller to the pump terminal blocks: For general pump operation, check voltage per respective signals (24VDC): o Is there general power at the pump box input terminals: A (0VDC) &... -
Page 27: 2) Material Pickup Device: Feed Tube/Wand/Lance Or Take-Off Box With Probe
SPD 3-7.5HP IM 31 OCTOBER 2024 lost compressed air connection, an open purge valve access door, or a material jammed purge valve will prevent material movement. 13.2.2) Material Pickup Device: Feed Tube/Wand/Lance or Take-off Box with Probe The conveying of material by air cannot be accomplished without air movement. Regardless of the type of pickup device being used;... -
Page 28: 6) Conveying Pump Vacuum Breaker Valve
SPD 3-7.5HP IM 31 OCTOBER 2024 Rule of Thumb: On systems that convey material from one source to multiple receivers via a common material line; if only one receiver in the system conveys correctly, it is probably that receiver’s check valve that is not closing properly. 13.2.6) Conveying Pump Vacuum Breaker Valve Located on the central vacuum pump of the system, the vacuum breaker valve allows ambient air to be drawn into the pump when the conveying system is NOT conveying. - Page 29 SPD 3-7.5HP IM 31 OCTOBER 2024 If the vacuum gauge shows vacuum levels above the designed relief point dictated in this manual or on the top-level mechanical drawing, there is an issue with the vacuum relief set point controlled by the electronic air regulator.
-
Page 30: Warranty
SPD 3-7.5HP IM 31 OCTOBER 2024 WARRANTY 14.) – NOVATEC, INC. - Effective Date 23 September 2024 NOVATEC, INC. offers COMPREHENSIVE PRODUCT The provisions in equipment specifications are WARRANTIES on all of our plastics auxiliary equipment. descriptive, unless expressly stated as warranties. We warrant each NOVATEC manufactured product to be The liability of Novatec to the purchaser, except as to free from defects in materials and workman- ship, under... - Page 31 SPD 3-7.5HP IM 31 OCTOBER 2024 Exclusions: Routine maintenance/replacement parts are excluded from the warranty. These include, but are not limited to: hoses, desiccant, filters, filter elements, wiper seals, gaskets, dew point sensors, infrared lamps, motors, internal solenoids, fuses and motor brushes. Use with abrasive materials will void the warranty of any standard product.
