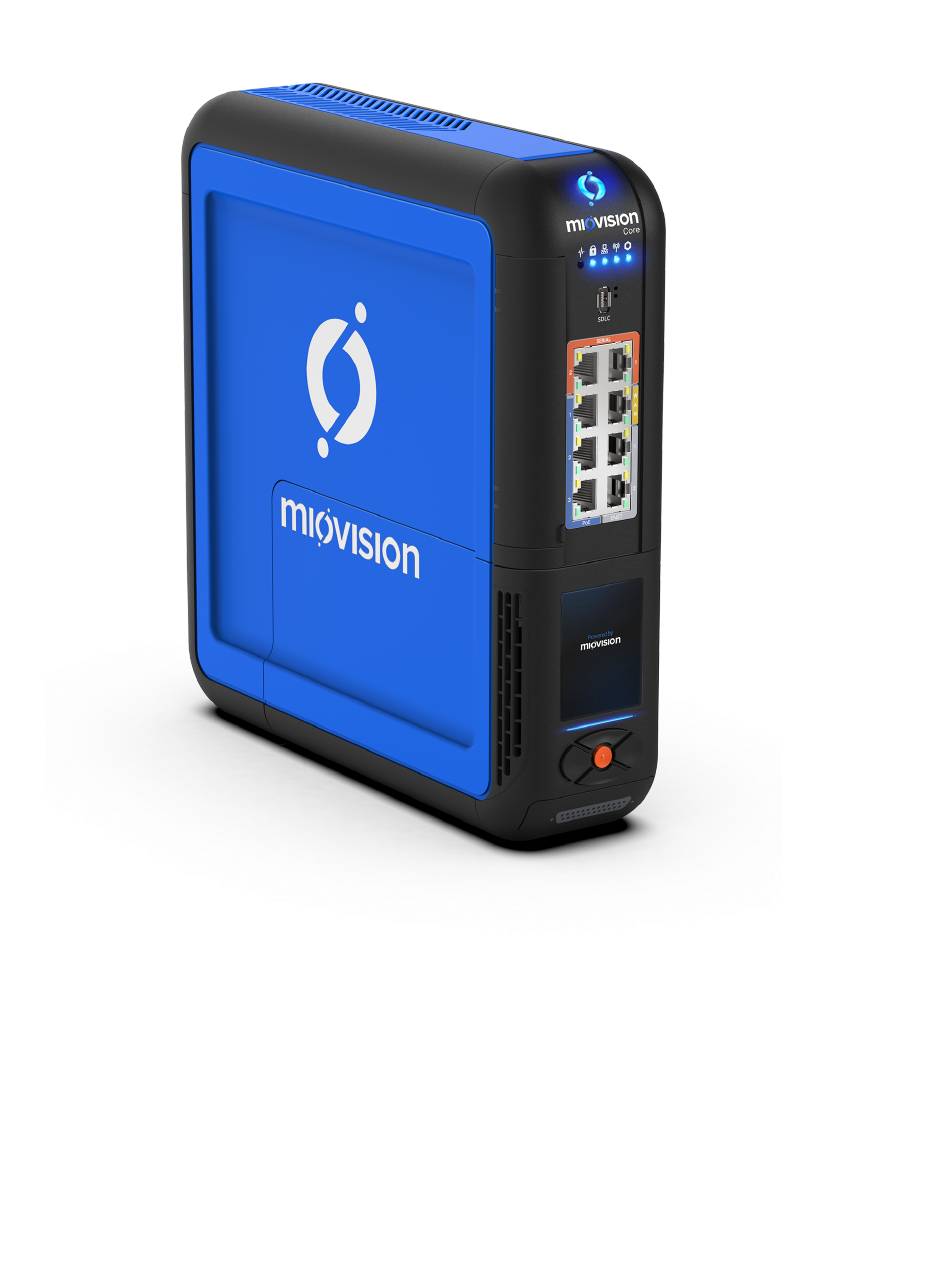

Miovision Core Components The Miovision Core & Miovision Core with the Detection and Counts Module (DCM) is a combined hardware and software solution to help you manage your intersection through the Miovision TraﬃcLink™ web-based portal to make data-informed decisions.
Page 6: Physical Specifications
4.9 lbs (2.2 kg) Dimensions Miovision Core 10.5 (h) x 3.0 (w) x 10.0 (d) in 266 (h) x 75 (w) x 254 mm (d) Miovision Core DCM Device weight (not including cables) Miovision Core DCM 6.3 lbs (2.9 kg) Dimensions Miovision Core DCM 10.5 (h) x 3.0 (w) x 10.0 (d) in...
Page 7: Package Contents
Miovision Core Miovision Core TraﬃcLink Antenna ITS Ready Ethernet Cable - 6ft (1.8m) Core RJ45 to DB9 Serial Cable General Purpose I/O Header with hookup wires Core Universal Power Supply NEMA 5-15P to IEC-320-C13 Optional Miovision Core Wires: ● Core SDLC Y DB15 Cable...
Page 8: Miovision Core Dcm
● Core SDLC Y DB25 Cable ● Core SDLC Straight DB25 Cable Core Priority Control IO Cable ● Miovision Core DCM The Miovision Core DCM includes all the above components with the addition of the following: Miovision Core DCM Core SDLC Y DB15 Cable...
Page 9: Installing The Miovision Core Antenna
Before you begin, determine the best location in the cabinet for the antenna and the Miovision Core. You might need to move some of the existing equipment in the traﬃc cabinet to accommodate these devices. Make sure that you have access to terminal block wiring or a 110V-240V uninterrupted (non-GFCI) power source for the Miovision Core.
Page 10: Installing Smartview 360
12. Visually inspect the antenna to make sure that the adhesive forms a tight seal on top of the cabinet. Installing SmartView 360 camera To install and set up the Miovision SmartView 360 camera, Download the Miovision SmartView 360 Installation Guide.
Page 11: Installation Considerations In The Cabinet
Installation Considerations in the Cabinet ● For best ventilation, install the Miovision Core device vertically or horizontally with the glowing logo facing up. The status LEDs will ﬂash red if the orientation is incorrect. . ● Place the device with a minimum of 3 in (76 mm) around it for ventilation,...
Page 12: Miovision Core Installation Steps
Miovision Core Installation Steps 1. Place the Miovision Core in the planned location in the cabinet. 2. Using the color coding on each antenna cable as a guide, connect each antenna cable to the corresponding connector on the Miovision Core.
Page 13 4. Connect the MMU to an available RS232 Serial (orange) port. Note: these connectors are RJ45 but carry a serial signal. If the MMU has an Ethernet port, connect to an available Ethernet port on the Miovision Core. 5. Connect the Ethernet cable from the SmartView 360 or SmartView Approach camera to an available PoE (blue).
Page 14 6. If telemetry over SDLC is required, connect the SDLC port on the Miovision Core to the cabinet SDLC bus using the provided SDLC Y-Cable (115-00048-001). Note: You must use a CoreSDLC cable for compatibility. Using a previous generation SDLC cable is not supported by the Miovision Core device. Contact Miovision Technical Support for more information.
Page 15: If Installing Miovision Core Dcm
Start Up Miovision Core Once the Miovision Core is installed into the cabinet, ensure the system starts up correctly. Verify that your device displays the following: 1.
Page 16: Start Up Miovision Core
Installing Miovision Core DCM installing the Miovision Core DCM device, complete the Miovision Core steps 1-3 When ﬁrst (above). You can also review the following steps in the Miovision Core DCM Installation video tutorial.
Page 17: Set Up The Miovision Core Dcm
4. If actuation over SDLC is required, connect the SDLC port on Miovision Core DCM to the SDLC bus in the cabinet using the provided SDLC Y-Cable (115-00048-001). Note: You must use the provided SDLC cable for compatibility. Using a previous generation SDLC cable is not supported by the Miovision Core device.
Page 18: Installation Checklist
Installation checklist To ensure you complete all necessary steps to successfully install the Miovision Core at the intersection, bring a printed copy of the Installation Checklist to your roadside installation.
Page 19 This will display the list of cameras connected to the Core DCM, their IP addresses, and their connectivity status, including: Status Meaning Next steps Unreachable The camera is plugged into the Check for breaks in Miovision Core but is not the cable.
Page 20: Resolve Ip Address Conflicts
Detection and/or Counting as conﬁgured. Resolving IP address conﬂicts If a camera status is 'Conﬂict', you can resolve it at the roadside. The Miovision Core DCM Install menu will also be marked with an asterisk (*). 1. Press System.
Page 21 Miovision Core DCM access to TraﬃcLink. CONFIG The status should read TMC+DET, DET, or TMC. If the status reads None, the Miovision Core DCM needs to be conﬁgured in TraﬃcLink. ACTUATE If the Miovision Core DCM is conﬁgured, the status should read Actuating if you have already added the DCM device to the intersection in TraﬃcLink, or conﬁgured it for...
Page 22: Monitor Miovision Core Dcm Detection
17 through 32 33 through 48 49 through 64 Note: If the Miovision Core I/O Conﬁguration setting is set to None in TraﬃcLink to disable actuation, ACTOFF is displayed on the screen and no detectors are shown. Determining the status of detectors...
Page 23: Upgrade Miovision Core To Miovision Core Dcm
Note: Unplug the Miovision Core device ﬁrst. Never perform a swap while the unit is operating. 1. Press in the orange button on the side of the FCM to remove from the Miovision Core. Apply pressure with your hands so the unit slides out.
Page 24: Restarting Miovision Core
Note: If you are replacing a signiﬁcant number of FCMs, contact Miovision Customer Support to learn how to safely dispose of the modules.. 3. Slide the DCM into the Miovision Core and listen for it to “click” into place. The DCM module should ﬁt in the Miovision Core securely.
Page 25: Review The Traffic Cabinet Before Leaving The Intersection
1. Verify that the TraﬃcLink antenna is securely attached to the top of the cabinet. 2. Conﬁrm that the LEDs on the Core device appear as follows: 3. If any of the tests fail, check that all cables and power supplies are properly connected.
Page 26: Miovision Technical Support
Miovision Technical Support Technical support is available ﬁve days a week by live chat in TraﬃcLink portal, phone, or email during regular business hours (Monday-Friday, 7 am-6 pm EST/EDT). Certain restrictions and exclusions apply. Online: https://help.miovision.com/s/?language=en_US Phone: 1-855-360-7752 Email: support@miovision.com...
