MMT EvaQMax EQM-U Manual

Smoke evacuation system
Hide thumbs

Advertisement

Table of Contents

EvaQMax
EvaQMax
EvaQMax
MANUAL
MANUAL
MANUAL
E
va
M
TM
ax

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EvaQMax EQM-U and is the answer not in the manual?

Questions and answers

Summary of Contents for MMT EvaQMax EQM-U

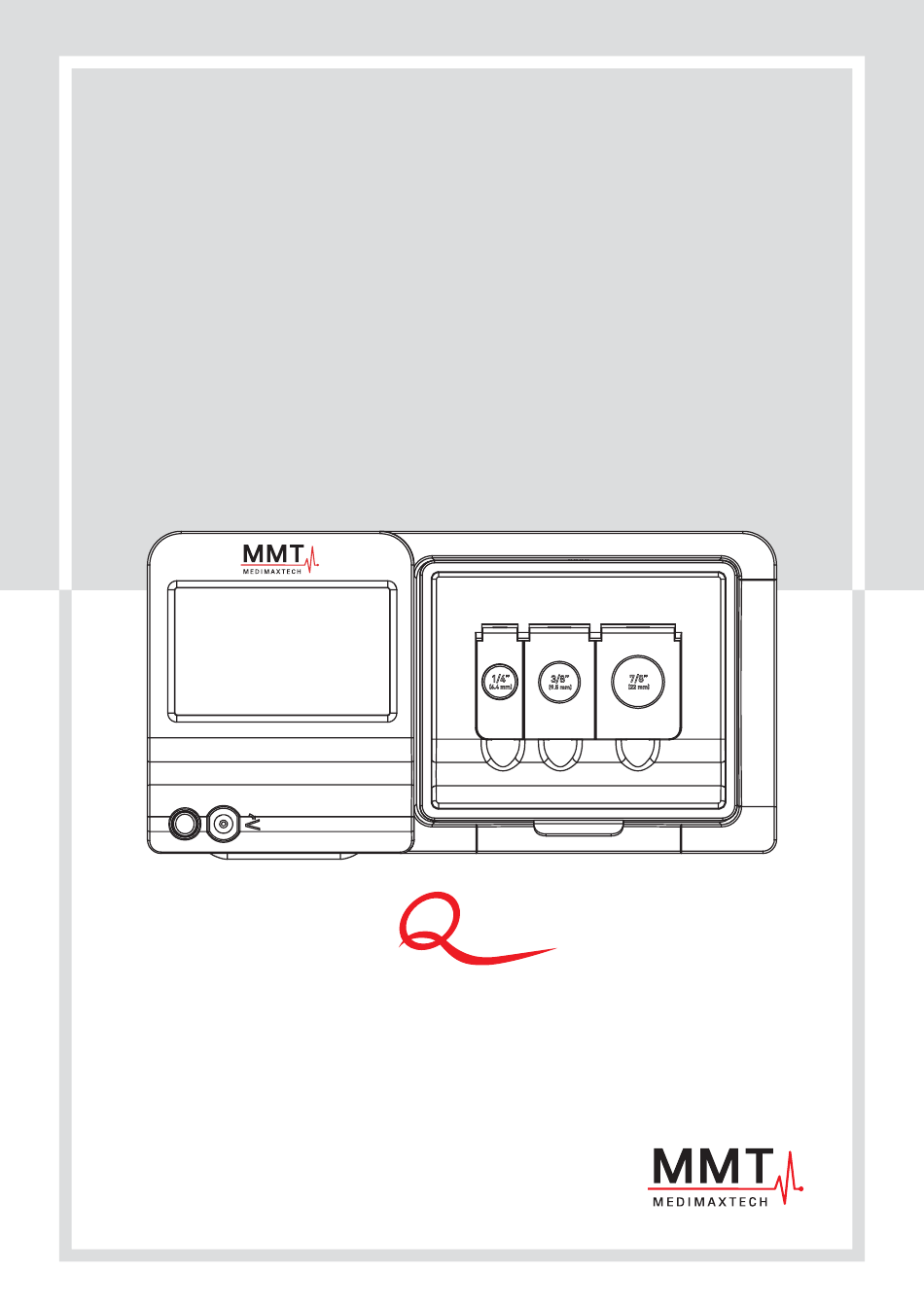

  • Page 1 EvaQMax EvaQMax EvaQMax MANUAL MANUAL MANUAL...
  • Page 2 Table of Contents and List of Illustration Section Title Page System Description Introduction Inspection Operational Information Cautions and Warnings Operating Instructions System Controls EvaQMax Filter Instructions Set up and Operation Specifications Maintenance General Maintenance Information Cleaning Periodic Inspection Troubleshooting Customer Service Equipment Return Ordering Information Terms &...

  • Page 3: System Description

    System Description Section 1.0 1.1 Introduction Indications of use for the EvaQMax Smoke Evacuation System include: To remove and filter smoke and aerosols from a surgical site produced during electrosurgical and laser procedures. The EvaQMax Smoke Evacuation System has been designed with a vacuum motor. The motor is used to draw the surgical smoke from the surgical site through the vacuum tubing and into the EvaQMax filter where the surgical smoke is processed by a series of filters.
  • Page 4 Please contact MEDIMAXTECH Customer Service to purchase the following accessories: • Replacement Filters • EvaQMax Auto Automatic Activation Device • Hoses, Tubing, Adapters, Other Accessories 1.3 Operational Information The operational information contained in this section is intended for the customer review of regulatory issues.
  • Page 5 1.4 Cautions and Warnings Please note that all Cautions and Warnings should be read and understood before any use of this equipment. Please note that all Cautions and Warnings should be read and understood before any use of this equipment. This device does not have any contradictions for use.
  • Page 6 Changes or modifications not expressly approved by MEDIMAXTECH could void the ・ user’s authority to operate the equipment. The warranty on this product is void if any of these warnings are disregarded. 1.4.2 CAUTIONS: Federal law (United States of America) restricts this device to be used by, or on the ・...
  • Page 7 Symbols Description / Meaning Warning Caution TYPE CF Applied Part IPX1 Protection Against Ingress of Water As Detailed In IEC 60529 Protective Earth(Ground) Alternating current Denotes The Date The Equipment was Manufactured Denotes The Manufacturer of The Device Non-Ionizing Radiation Consult Instructions Automatic Activation Device Footswitch...

  • Page 8: Mode Of Operation

    Operating Instructions Section 2.0 2.1 System Controls The electronic system controls on the EvaQMax Smoke Evacuation System are easy to understand and simple to use. To power up the machine, connect the supplied power cord to a grounded outlet and the appliance inlet on the back of the smoke evacuation system.
  • Page 9 SUCTION ON & STANDBY Once the mode is selected on the touch screen interface (See Figure 1), the mode you have selected will appear on the right side of the touch screen. You can activate or deactivate the flow of suction by pressing the button that appears like a fan blade on the unit’s touch screen.
  • Page 10 Figure 4. Filter Life Indicator When the maximum filter life is consumed, the following warning screen will appear indicating that a filter replacement is needed. See Figure 5. Figure 5. After inserting a new EvaQMax Filter, resume normal operation. During operation, if a filter expires the system will not turn off but will remain running until the system is powered down or 6 hours passes, whichever comes first.
  • Page 11 Figure 7. CLOCK ICON FUSES (circuit board) Two 10 AMP fuses (8 AMP for 220/240 EvaQMax Systems) are located on the circuit board within the housing of the system. It electrically protects both the systems and the operator from damage or injury. If the system is overheated or if there is an electrical surge in the electrical system, fuses will break, and the system will not operate.
  • Page 12 indicates an expired filter. Failure to change this filter may result in decreased efficiency and contamination of the electric motor, vacuum pump, and sound-absorbing media within the system, or non-operation of the smoke evacuator. 2.3 Performance References* Performance Model Number EQM-U Standard Hose I.D.
  • Page 13 Guidance and manufacturer’s declaration – electromagnetic emissions The Surgical Smoke Evacuator Model EvaQMax is intended for use in the electromagnetic environment specified below. The customer or user of the EvaQMax should assure that it is used in such an environment. Emissions Test Compliance The EvaQMax uses RF energy only for its internal...
  • Page 14 Table 2 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The model EvaQMax is intended for use in the electromagnetic environment specified below. The customer or user of the model EvaQMax should assure that it is used in such an environment. IEC 60601 Compliance Immunity Test...
  • Page 15 Table 3 Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The model EvaQMax is intended for use in the electromagnetic environment specified below. The customer or user of the model EvaQMax should assure that it is used in such an environment. IEC 60601 Compliance Immunity Test...
  • Page 16 Table 4 Recommended Separation Distance Between Portable and Mobile RF Communications Equipment and the Model @ 3 Vrms The model EvaQMax is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model EvaQMax can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model EvaQMax as recommended below, according to the maximum output power of the...

  • Page 17: Maintenance

    Maintenance Section 3.0 3.1 General Maintenance Information This section contains information for the ordinary upkeep of MEDIMAXTECH EvaQMax. While the system has been designed and manufactured to high industry standards, it is recommended that periodic inspection and performance testing be performed by a qualified Biomedical Technician to ensure continued safe and effective operation.

  • Page 18: Customer Service

    Customer Service Section 4.0 4.1 Equipment Return For the quickest response to your service needs, please follow these procedures: Step 1: Write down the model and the serial number of the EvaQMax Smoke Evacuation System. Step 2: Call Customer Service at the toll-free or local number listed and describe the problem.

  • Page 19: Terms & Warranty

    Terms & Warranty Section 5.0 5.1 Specifications Specifications are subject to change without notice. SHIPMENT OF ORDER: MEDIMAXTECH will try to accommodate individual customer requests for shipping method. MEDIMAXTECH reserves the right to decide the shipping method on prepaid orders. Care is exercised in the checking and packaging of all merchandise to avoid error, but should discrepancies arise, claims should be made within 24 hours after delivery.

  • Page 20: Confidential Information

    CONFIDENTIAL INFORMATION: information, drawings, plans, specifications being furnished MEDIMAXTECH have been developed at MEDIMAXTECH’s expense and shall not be used or disclosed by the purchaser for any purpose other than to install, operate, and maintain the system supplied. CONSEQUENTIAL DAMAGES/LIMITS OF LIABILITY: MEDIMAXTECH shall not in any case whatsoever be liable for special, incidental, indirect or consequential damages of any kind.
  • Page 21 MEMO...
  • Page 22 ax Manual Manufactured for: MEDIMAXTECH USA Inc. 2805 East Ana Street East Rancho Dominguez, CA 90221 Tel : 1-855-MEDIMAX (1-855-633-4629) Date. 2022-04-28 REV.004...
