Summary of Contents for Ronix RH-9390

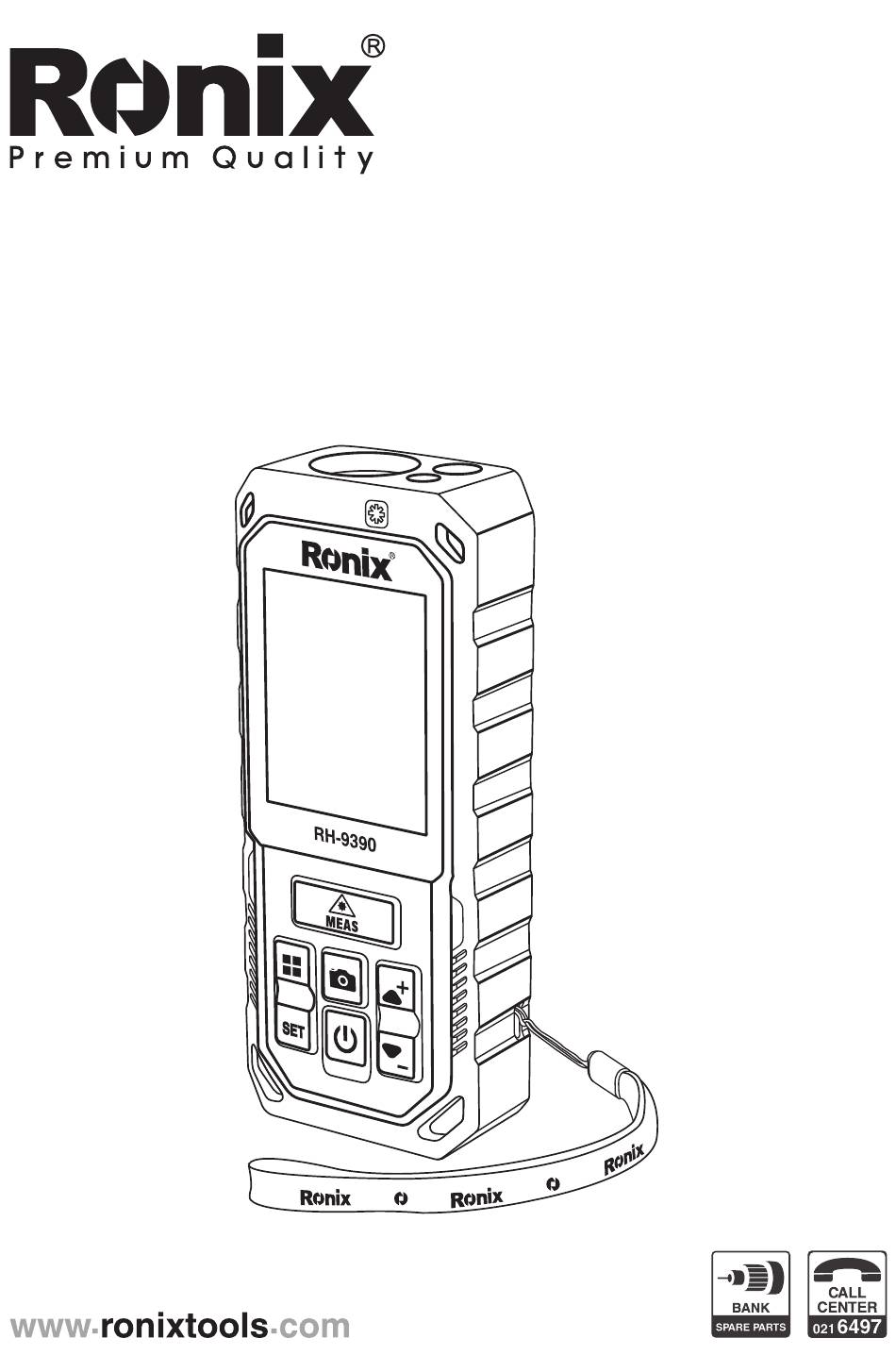

Page 1 CAMERA POINT FINDER LASER DISTANCE METER 100m RH-9390...
Page 3: Technical Specification
TECHNICAL SPECIFICATION Model RH-9390 Battery Type 3×AAA NI-MH Rechargeable Batteries Battery Capacity 900mAh Laser Beam Color Material ABS+RUBBER Dimension 115/49/26mm Distance 100m Measurement Accuracy ±2mm Weight 0.14Kg Pouch×1, QC Certificate×1 Include USB Cable×1, Battery×1, Wristband×1 USER MANUAL...
Page 4: Part List
PART LIST Laser Emitter Icon Display Screen Measure Button Camera RH-9390 Menu Button Add/Previous Set Button Subtract/Next Power Button Battery Compartmentt Tripod Hole CAMERA POINT FINDER LASER DISTANCE METER 100m...
Page 5: Measure Button
MEASURE BUTTON Activate the measuring mode, short press to measure, long press to Continuous measure. MENU BUTTON Press to change measuring mode: Area/Volume/Pythagorean two points/Pythagorean three points/Auto level/Auto height/ Point to point/ Trapezium measurement (1)/Trapezium measurement (2)/ Triangle Area measurement/Circular Area measurement/ cylindrical Volume measurement/Stake out.
Page 6: Battery Installation And Instructions
BATTERY COMPARTMENT TRIPOD HOLE SAFETY INSTRUCTION The safety instructions should be read through carefully before the product is used for the first time. WARNING: a. the device is categorized into Class 2 laser product. DO NOT stare at laser directly or shoot at others or it will cause damage to eyes. b.
Page 7 Insert 3×AAA Rechargeable NI-MH batteries. Observing correct polarity. After the battery is placed, cover and hold the battery door, press and slide to the top, the cover can be sealed. USER MANUAL...
Page 8: Display Screen
The product uses rechargeable NI-MH batteries. Please use provided USB cable while charging. The computer can also be used to charge, but this takes more time. WARNING: When use dry batteries, please DO NOT use USB to charge. While charging, the device may heat up, this is normal, and will not affect the product performance and lifetime.
Page 9 1. BLUETOOTH To select , then press to activate or deactivate the Bluetooth tremote control the measurement and data transmission by connecting with App. When the icon turns grey, the Bluetooth shut off. 2. MEASURING UNIT To select , then press to change the units (m/ft/in/ft+in) 3.
Page 10 constant value. 8. TIME DELAYED MEASUREMENT To select , then press to confirm, the device shall start measuring after 5 seconds. MEASURING INTERFACE: Angle Display Bluetooth Battery Status Reference Measuring Mode Digital Status Display Level Display To be Measured Line SUMMARY LINE CAMERA POINT FINDER LASER DISTANCE METER 100m...
Page 11: Single Distance Measurement
OPERATION INSTRUCTIONS The Single Distance Measurement prompt when it is switched ON. Press to change the measuring mode, the red indicating the current measuring line, and distance data are displayed in Red, measured data marked in Grey, the summary line displayed in Green.
Page 12: Area Measurement
measured value marked in green. You can choose Max or Min value according to your needs. AREA MEASUREMENT Press to select Area Measurement via , according to reminding of the red line, press to get the distance for 1 line (e.g., Length), press according to the reminding line again to get the distance of 2...
Page 13 and displayed in the summary line. PYTHAGORAS (2-POINT) Press to select Pythagoras via according to reminding of the red line, press to get the distance of 1 line, change to the horizontal direction of the object from the fixed measuring point, press again to get the distance of 2 line, the result is...
Page 14 PYTHAGORAS (3-POINT) Press to select Pythagoras according to reminding of the red line, aiming at 1 target point, press to get the distance of 1 line, change to the horizontal direction of the object from the fixed measuring point, press again to get the distance of 2 Line, move to the 3 target point, press...
Page 15 AUTO LEVEL MEASUREMENT Press to select Auto level Measurement via according to reminding of the red line, press to get the distance of hypotenuse, vertical and horizontal lines, the result is displayed in line accordingly. AUTO HEIGHT MEASUREMENT Press to select Auto Height Mode , according to reminding of the red line, press to get the distance for 1...
Page 16 again for 2 line, then you can get vertical height displayed in summary line. POINT TO POINT (P2P) MEASUREMENT Follow the instruction: “To set the measuring reference for the center point of rotation, wait for stable performance before operating”, hold the device still and wait until the instruction icon disappear.
Page 17 TRAPEZIUM MEASUREMENT Press to select Trapezium Measuring mode ,according to reminding of the red line, press to get the distance for 1 line; press according to the reminding line again to get the distance of 2 and 3 line, meanwhile, the last line shall be displayed in the summary line.
Page 18 TRIANGLE AREA MEASUREMENT Press to select Triangle Measuring mode according to reminding of the red line, press to measure the length of the three lines of the triangle ,the result of area shall be displayed on screen. ATTENTION: if the Triangle could not be composed by those three measured lines, then outputs error.
Page 19 CIRCULAR AREA MEASUREMENT Press to select Circular Area Measuring mode , according to reminding of the red line, press to get the diameter, then area and circumference shall be automatically output on the screen. CYLINDER VOLUME Press to select Cylinder Volume Measuring mode ,according to reminding of the red line, press to get the diameter and...
Page 20: Stake Out
STAKE OUT Press to select Stake out , press to move the cursor and select the corresponding number, press to add/subtract the value until the desired distance is reached. Press start Stake out measurement. The green value would be the distance in real time.
Page 21: Error Code
confirmed, press to locate the target in the image. Press zoom in/out the image and press the when you confirm the target, the display will automatically switch to measuring mode, the result will be displayed at the bottom of the line. BLUETOOTH APP DOWNLOAD Users need download “Joyplan”...
