Summary of Contents for SCUDO KOGE
- Page 1 4 -I N -1 INSTALL ATI ON IN STRU C TIONS SC U D O.CO.U K...
- Page 2 Please ensure this guide and instructions is fully read Intended Use and understood prior to installation or operation of The Koge boiling water system, comprising the tap, the product. boiling unit, and filter, is intended for indoor use only. This system is designed to provide instant boiling It is assumed due to the installation requirements;...
-
Page 3: Important Notice
Koge from Scudo. Mixing always be used and replaced at least every 6 months. products from other suppliers pose a potential safety Failure to do so may affect water quality and void the hazard and will void the warranty. -
Page 4: Installation Requirements
I NSTA L LAT I O N I NST RU C T I ON S Installation Requirements Electrical Requirements Ventilation Requirements A standard 220/240v 50Hz earthed 13amp switched To avoid overheating or damaging electronic electrical socket is required. This must be placed components, a zone of 10-15cm around the boiling unit within reach of the boiler unit 13amp plug. - Page 5 I NSTA L LAT I O N I NST RU C T I ON S Description O-Ring Rubber Washer Metal Washer Mounting Nut Flex Hose Adaptor (3/8 to 1/2 thread) Cold Flexible Hose Hot Flexible Hose Hose from Filter Outlet to Tap Hose from Tap to T Adaptor Hose from Tap to T Adaptor Hose from Tap to Boiler Unit...
- Page 6 I NSTA L LAT I O N I NST RU C T I ON S Underview of Hose Placement COLD S C UD O.CO.U K PAG E 6...
- Page 7 I NSTA L LAT I O N I NST RU C T I ON S COLD Use a Phillips head screwdriver to Connect the Cold flexible hose thread the 2 screws. (1) & T Adapter (11) onto the cold matching water valves and secure the connection with a spanner.
- Page 8 I NSTA L LAT I O N I NST RU C T I ON S Before inserting the hose into filter Remove blue tab. Connect hose (3) Before plugging in the boiling unit, inlet, remove the blue tab and onto the filter outlet, then secure ensure to fill the tank fully and run replace once the hose is connected.
- Page 9 IN STA LL AT IO N INST RU C T ION S Boiling Water Tank Hold To set the water temperature Touch the “Temperature” key (B) several times to scroll through the available temperatures: C / 55 C / 65 C / 75 C / 85 C / 90...
-
Page 10: Troubleshooting
Inlet pipes have become twisted or pipes are not twisted or kinked and blocked. restricting flow. Remove and clean the aerator. “Set Temperature” indicator flashes “E4”. Product Catastrophic Failure Contact KoGE retailer if under warranty period. S C UD O.CO.U K PAG E 1 0... -
Page 11: Fault Code Description
IN STA LL AT IO N INST RU C T IONS Fault Code Description Please check and troubleshoot the following issues on your own when prompted: Code Possible Issue Temperature sensor short circuit, or temperature sensor interface short circuit. Temperature sensor open circuit, or temperature sensor not connected. After heating is completed, the temperature probe detects an excessively high temperature exceeding 100°C, displaying E8. - Page 12 I NSTA L L ATI ON I NSTRUCT IONS SC U D O.CO.U K SCU DO.CO.U K PAG E 12...
Need help?
Do you have a question about the KOGE and is the answer not in the manual?
Questions and answers

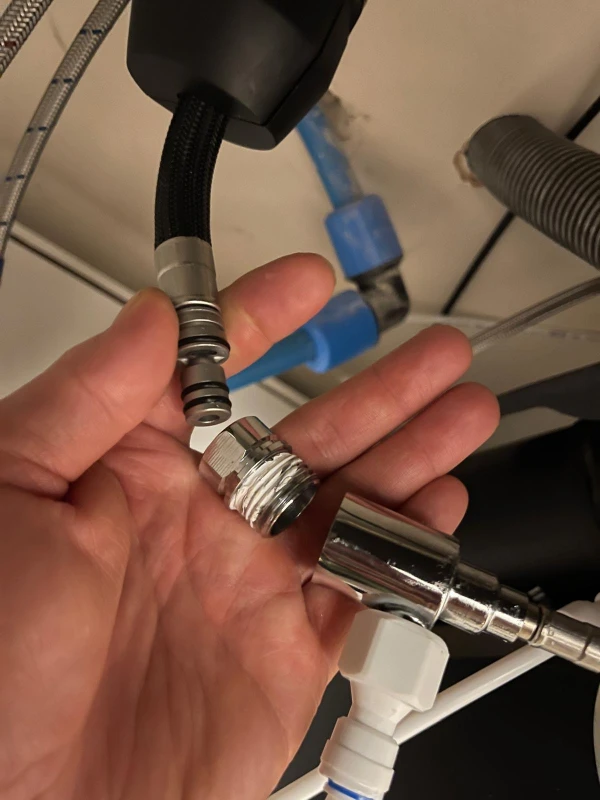

Hi, Please see the attached imagine. These are the only parts I have, but when the middle part is screwed in, it doesn't seem to hold the hose at all. So when the tap is on it just pushes it out and water leaks through it. Is there a part missing? Thanks
