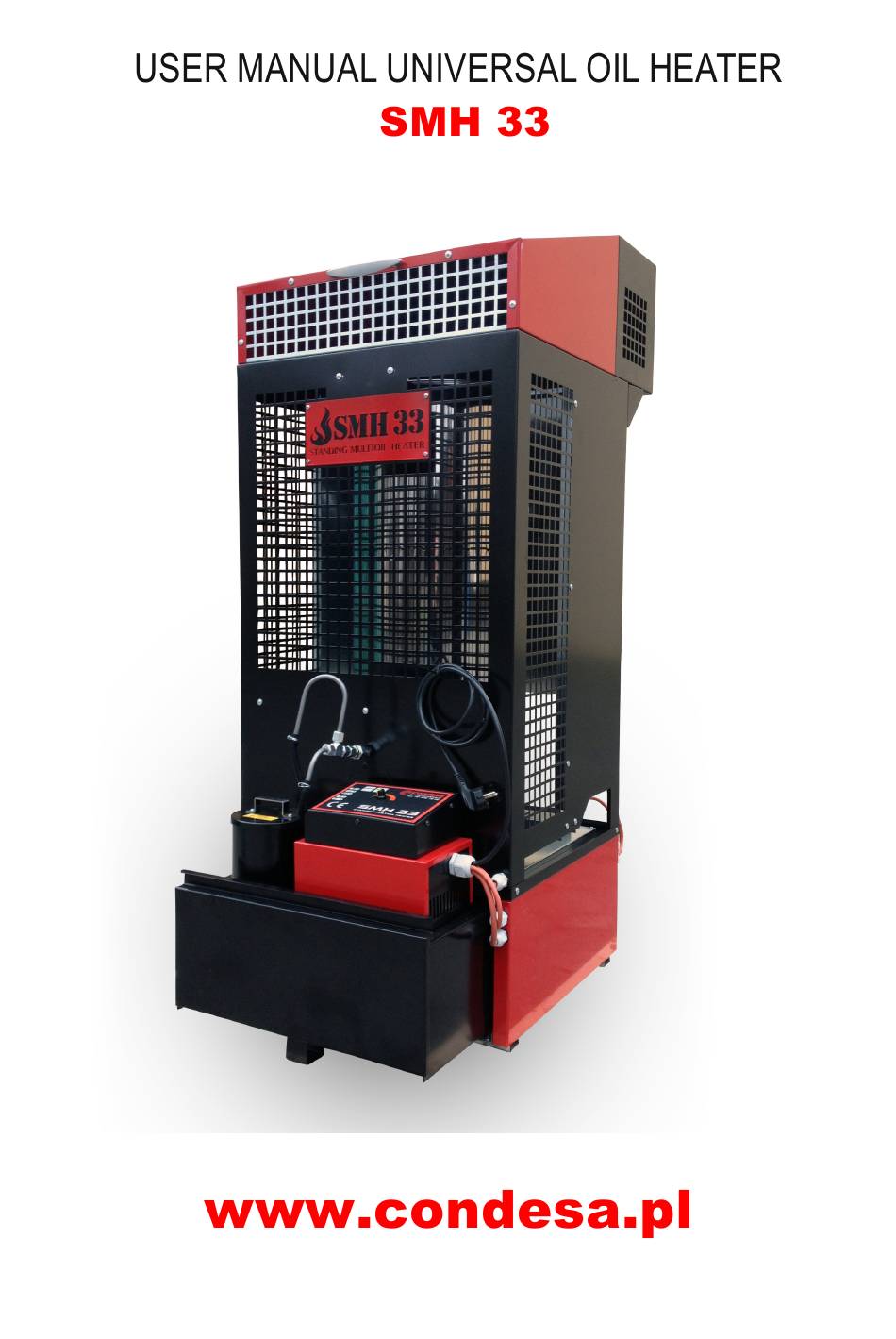

Summary of Contents for Condesa SMH 33

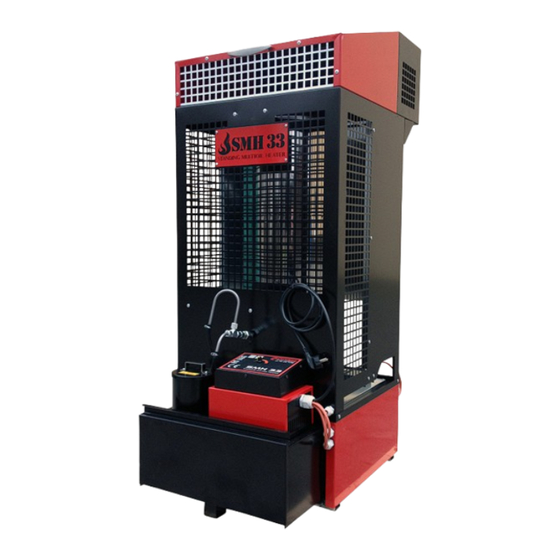

- Page 2 1 . Use 1 . Use SMH 33 universal oil heater are suitable for heating big size buildings without central heating (shops, service stations, industrial buildings, warehouses, inventory buildings, basements, garages, etc.) The heater runs on most oils of mineral and plant origin, such as motor oils, heating oil, gear oils, hydraulic oils, HBO I, II, III oils with maximum kinematic viscosity 6.00...
-
Page 3: Installation
(1 A, 250V) was installed in the casing of the control panel. The fuse should always be replaced with the power (230V/50Hz) switched off. SMH 33 universal oil heater is equipped with two bimetallic sensors assuring safe and effective functioning of the device. - Page 4 Ventilation fans working in the same room or area as the heater may cause disruptions. itting the flue To ensure the right combustion appropriate fitting of the flue in necessary. The following recommendations should be adhered to when fitting the flue: •...
- Page 6 7. Functionning Control panel The control panel of SMH-33 universal oil heater is equipped with two buttons enabling the user to control the operation of the heater and five diodes signaling the operating modes of the device. Figure 4. The front control panel of universal oil heater. Heater on switch Heater off switch Heater output control...
- Page 7 The device operates in the following modes: • STOP Device ready to use • Heating up Preliminary operating Phase • In operation The device is working normally • Shutting off The device is shutting off • Overheating Contingency switching off •...
- Page 8 In order to reset the overheating signal and regain normal functioning of the device, one should wait until the burner cools off completely (ventilation fan switches off) and press the button on the casing of bimetallic thermostat. Then press Start button, turn off and turn on power supply, which will cause the overheating diode to go off.
- Page 9 Shutting off: • Press Stop on the control panel (green diode goes off), pump stops feeding fuel onto the vaporising pan, and ventilation fan works only until the burner has cooled off. CAUTION The device must not be unplugged for as long as the ventilation fan is working, this can be done only after the burner has cooled down.
-
Page 10: Maintenance
Overheating control Burner lid Oil feed line Burner chamber thermostat Pump and control panel Fuel tank Cylinder Ring Wire ring Combustion chamber Vaporising pan Combustion chamber basin Flow gauge Overflow fuse Maintenance The burner requires various mainte-nance works. Following producer’s recommendations regarding main-tenance will assure failure-free and safe functioning of the device. - Page 11 CAUTION It is recommended to have all maintenance works done each se-azon by an authorised dealer. FAILURE CAUSE 6 - 3 - 7 Pump does not work and the pump indicator does not turn on 2 - 5 - 9 - 1 0 - 1 2 Flame goes off while the pump is still working 1 0 - 11 - 1 2 Combustion chamber makes noise...
- Page 12 TECHNICAL SPECIFICATIONS: Minimum heating performance Maximum heating performance Minimum oil consumption 1 ,7 Maximum oil consumption 1 000 Heated air flow Power supply V/Hz 230/50 Power intake Flue diameter 1 50 Width Height 1 36 Length Weight...
-
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY...
