This operating instruction book is designed for use with models EJ-MLA37E-W and EJ-MLA32E-W.

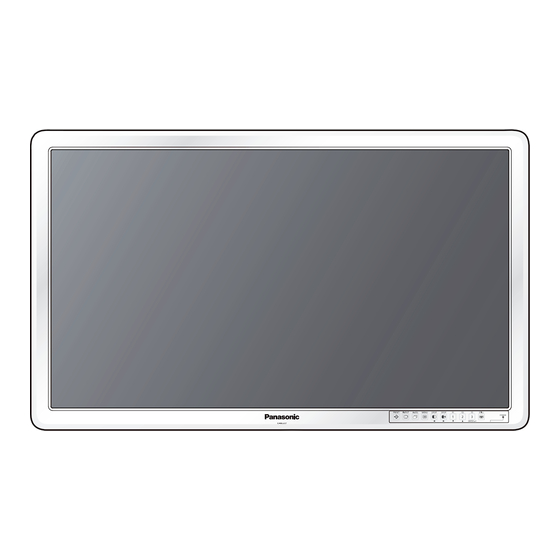

Illustrations in this manual show the EJ-MLA37E-W.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
English
Operating Instructions
LCD Monitor
EJ-MLA37E-W
Model No.
EJ-MLA32E-W
For medical use
LSQT1598-3
Advertisement
Table of Contents
Related Manuals for Panasonic EJ-MLA37E-W
Summary of Contents for Panasonic EJ-MLA37E-W
- Page 1 Model No. EJ-MLA32E-W For medical use This operating instruction book is designed for use with models EJ-MLA37E-W and EJ-MLA32E-W. Illustrations in this manual show the EJ-MLA37E-W. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.
-
Page 2: Introduction Features
Dear Panasonic Customer Welcome to the Panasonic family of customers. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and record the serial number of your set in the space provided on this page. -
Page 3: Table Of Contents
Contents Introduction Features......................... 2 Important Safety Instructions..................4 Before Use........................6 Accessories ........................8 Connecting the AC Cord ....................8 Location of Controls ..................... 9 Front View ..........................9 Rear View ..........................10 Basic Operation Basic Operation......................12 Turning on power ........................12 Selecting display language ..................... -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING: To prevent damage which may result in fire or shock hazard, do not expose this apparatus to rain or moisture. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set (including on shelves above, etc.). WARNING: 1) To prevent electric shock, do not remove cover. - Page 5 EEC Safety Compliance: This monitor unit meets the requirements of EN 60601-1 in conforming to the Medical Device Directive 93/42/EEC (general safety information). Caution for AC mains lead (UK only) For your safety, please read the following text carefully. This product is supplied with a moulded three pin mains plug for your safety and convenience. A 13 ampere fuse is fitted in this plug.
-
Page 6: Before Use
Before Use I When setting up G The terminal parts of the SDI terminal and DVI-D terminal are vulnerable to Please be careful about the following when setting up the static electricity, so be sure to work monitor. with care at installation. G Please ask qualified person for Installation work. - Page 7 G Liquid crystal response speed varies G Occasionally wipe the display panel according to environment. with a soft cloth (cotton, flannel, etc.). When the liquid crystal panel is in a room at low G For stains and fingerprints that have adhered to the temperature, response speed is slow.
-
Page 9: Location Of Controls
Location of Controls Front View Bottom view g F1/w button (page 17) a PRESET[ ] button (page 18) Executes function assigned to FUNCTION1. /Select items Displays preset menu. in the menu screen. b INPUT[ ] button (page 13) h F2/q button (page 17) Displays the input select menu. -
Page 10: Rear View
Location of Controls — Continued Rear View WARNING label Rating label c d e f g h i j k a Power terminal i GPI input terminal (D-sub 9pin) Connects the AC cord By assigning functions to each terminal, the monitor can be controlled by external devices. - Page 11 o Loop-through output Outputs input signal as is from b to h. Confirms input signal, connects to input terminal of other video devices. Furthermore, for a c VIDEO, d Y/G, e P /B, f P /R input terminal, when not connected to any output terminal, terminated with internal 75 ohm.
-
Page 12: Basic Operation
Basic Operation Turning on power Selecting display language Select the language of menus and messages displayed on the Connect the AC cord plug to the wall screen. outlet. Press [MENU]. The main menu is displayed. Input Config VIDEO Auto Video Config S VIDEO Auto System Config... -
Page 13: Switching Input Signal
E.g.: when PC image is input Switching input signal Select the signal input to the monitor, display it on the screen. HD15 DVI-D 1 1280x1024@60 1080-60p I Switching the input signal when Resolution (horizontal pixel number X vertical line using 1 screen number@vertical frequency) Press [INPUT]. -
Page 14: Display With 2 Screens, 3 Screens
Display with 2 screens, 3 screens Displaying the screen with 2 screens or 3 screens, and changing Operation with the main menu the subscreen display position and display size are possible. 2 screens and 3 screens can be displayed with P in P or P out P Displaying with P in P mode, and setting main/sub screen size mode. - Page 15 G When “3POP” is selected in procedure 3 Press [q/w] to select “Window Mode”, (A: main screen, B: subscreen 1, C: subscreen 2) and then press [e/r] to select mode Mode1: Subscreen 1, 2 display (display position, size). at 1/2 display size. Input Config Multi Window 2PIP...
-
Page 16: Rotating/Flipping The Screen
Rotating/flipping the screen Rotating/flipping the screen Press [q/w] to select “Display Direction”, and then press [e/r] to set the rotation The input screen can be rotated or flipped horizontally and angle or flip. displayed. Set the rotation angle or horizontally flip the main screen Press [MENU]. -
Page 18: Preset And User Setting
PRESET and USER setting It is possible to switch to PRESET, FACTORY, or the USER G When selecting the USER setting that has displayed to setting in advance. the right of the USER number, pressing [ENTER] displays PRESET: Basic settings are registered in advance at the the confirmation screen. -
Page 19: About The Main Menu
About the Main Menu In the main menu, settings can be made for the input, image, Press [e/r] to set. system, function, screen, remote control and control. G There may be more menus depending on the item. If “Next Menu” is displayed for items, press [e/r] and Operation via the main menu a new menu is displayed. -
Page 20: Input Configuration
Input Configuration Setting for each input terminal Sync. Select (RGB/HD15) G Input configuration menu Set synchronous signal input method at RGB/HD15 signal input. Input Config K Selectable Value VIDEO VIDEO Auto Video Config S VIDEO Auto Auto: HD/VD input/SYNC on G switches System Config RGB/YP RGB-VIDEO... - Page 21 I H Position To move screen left and right. K Adjustment Range 0 (left) to 100 (right) I V Position To move screen up and down. K Adjustment Range 0 (down) to 100 (up) I Dot Clock When a striped pattern is displayed, adjust so that noise will decrease when the synchronous striped pattern (noise) is produced.
-
Page 22: Video Configuration
Video Configuration Adjustment/setting for image display Backlight G Video configuration menu (1/3) Adjust brightness of backlight. In case of multiple windows, select the main screen. The setting cannot be changed when a Input Config screen other than the main screen is selected. Reset Video Config Color... - Page 23 G Bias Adjust the strength of green in dark areas. K Adjustment Range 0 to 100 B Bias Adjust the strength of blue in dark areas. K Adjustment Range 0 to 100 G Video configuration menu (3/3) Input Config NTSC Setup Video Config 3D I/P System Config...
-
Page 24: System Configuration
System Configuration Setting for devices Language G System configuration menu Set the language to be used for display in settings and all menus. Input Config K Selectable Value Menu Position Video Config English, Français, Español, Deutsch, Italiano Data Save USER1 System Config Status Display 3Sec... -
Page 25: Function Setting
Function Setting Setting for [F] buttons G Function setting menu F1, F2, F3 Set functions assigned to function buttons. Input Config Undef See “Registering Frequently Used Functions” on page 17 for Video Config Undef details. System Config Undef Function Function Display Mode1 Window Config Function Display... -
Page 26: Remote Setting
Remote Setting Setting for remote functions Input HD15: Switch main screen input signals to G Remote setting menu HD15. Input DVI-D 1: Switch main screen input signals to DVI-D 1. Input Config RS-232C Video Config Input DVI-D 2: Switch main screen input signals to GPI Control System Config DVI-D 2. -
Page 27: Control Setting
Control Setting Setting for lock functions G Control setting menu Input Config Lock Video Config System Config Function Window Config Remote Control Return Change Lock Changing settings via the main menu is prevented. K Selectable Value On: Changes of settings not possible. Off: Changes of settings possible. -
Page 28: Displayable Input Signals
Displayable Input Signals RGB/ RGB/YP , HD-15 Horizontal Vertical Dot Clock VIDEO, SDI 1, DVI-D 1, Signal name Frequency Frequency Frequency (RGB- S VIDEO SDI 2 DVI-D 2 (RGB-PC (kHz) (Hz) (MHz) VIDEO mode) mode) mode) NTSC 15.73 59.94 15.63 50.00 480/60i 15.73... -
Page 29: Troubleshooting
Troubleshooting Problem Check the following Page There is a black dot or dead G Liquid crystal panels are manufactured using technology with very pixel dot on the screen high precision, but there may be a missing pixel or bright spot on —... -
Page 30: Specifications
Specifications EJ-MLA37E-W EJ-MLA32E-W Type LCD monitor Power Source AC 100 V – 240 V, 50 Hz/60 Hz Input Current 1.5 A – 0.72 A 1.44 A – 0.69 A LCD Panel 37 inch (16:9 aspect ratio) 32 inch (16:9 aspect ratio) 819 mm (W) ×... -
Page 31: Pin Specifications
Pin Specifications I Pin assignment and signal name of RS-232C terminal Pin No. Signal name Content NC (no connection) Reception data Transmission data Short circuit at pin 6 on the monitor GND (ground) Short circuit at pin 4 on the monitor Short circuit at pin 8 on the monitor Short circuit at pin 7 on the monitor NC (no connection) -
Page 32: Dimensional Figure
Dimensional Figure EJ-MLA37E-W Units: mm Side Front Screw holes Rear Screw holes EJ-MLA32E-W Units: mm Side Front Screw holes Rear Screw holes... -
Page 33: Emc Relevant Information
EMC Relevant Information 1. The monitor needs special precautions regarding EMC and needs to be installed and put into service according to the following EMC information. 2. The portable and mobile RF communications equipment can affect the monitor. 3. WARNING: The monitor should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the monitor should be observed to verify normal operation in the configuration in which it will be used. - Page 34 EMC Relevant Information — Continued Guidance and manufacturer’s declaration – electromagnetic immunity The monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should ensure that it is used in such an environment. IEC 60601 Electromagnetic environment - Immunity test...
- Page 35 Guidance and manufacturer's declaration - electromagnetic immunity The monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should ensure that it is used in such an environment. IEC 60601 Compliance Immunity test Electromagnetic environment - guidance test level...
- Page 36 EMC Relevant Information — Continued Recommended separation distances between portable and mobile RF communications equipment and the monitor The monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the monitor as recommended below, according to the maximum output power of the communications equipment.
- Page 37 Memo...
- Page 38 Memo...
- Page 39 Meaning of symbols on the unit Symbol Description Symbol Description Symbol Description Alternating current This way up Stacking limit by number. Keep away from rain Fragile Weight Recycling symbol for Consult operating Temperature limits containers and packaging instruction for use. materials Recycling symbol for Do not keep/transport in...
- Page 40 This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Hagenauer Str. 43 65203 Wiesbaden, Germany 2 Jalan Kilang Barat, Panasonic Building, +49-611-235-0 Singapore 159346...
