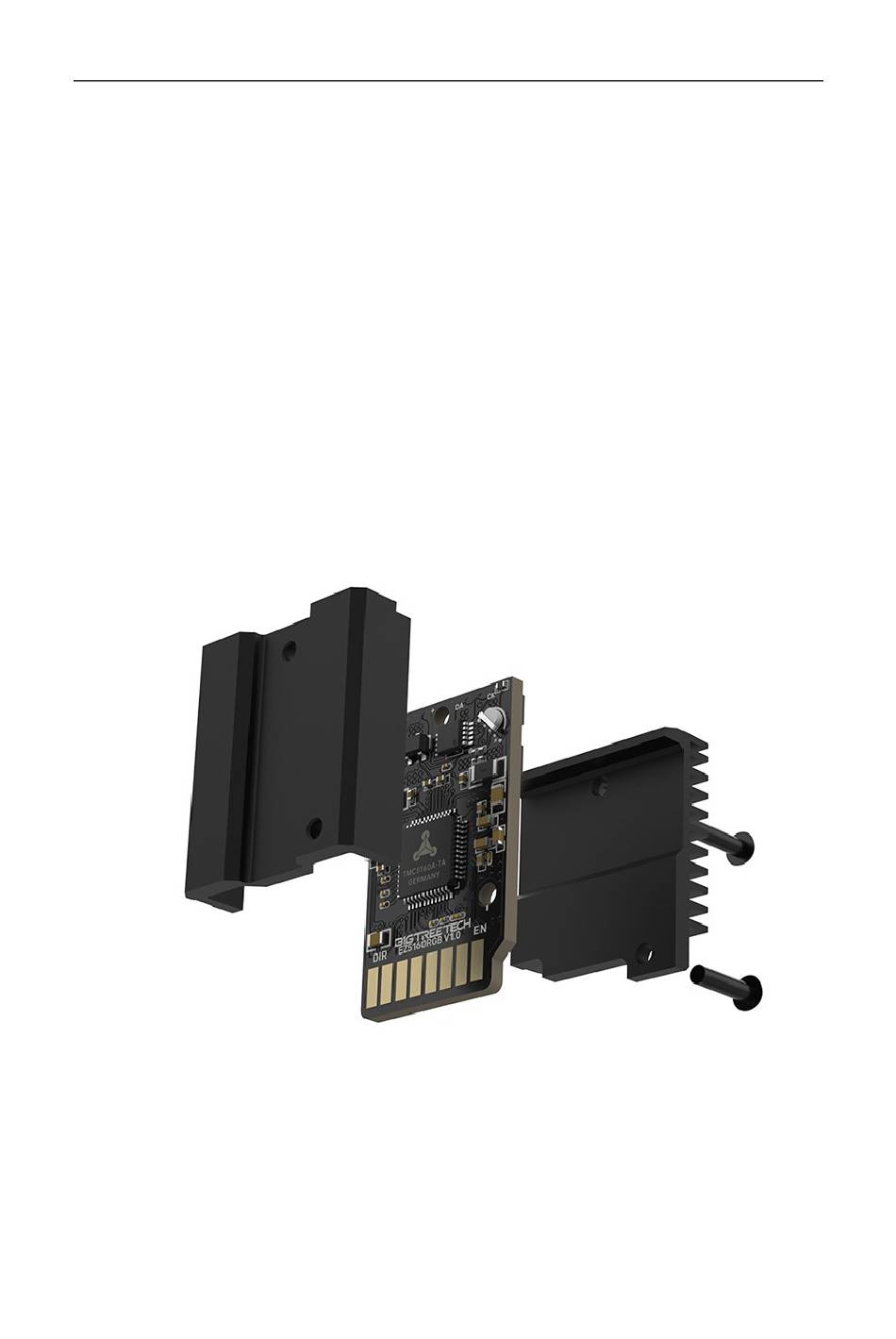

  • Page 1 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH BIGTREETECH EZ5160RGB V1.0 User Manual 1 / 11...
  • Page 2: Table Of Contents

    Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH CONTENTS Revision History ......................3 Product Profile ....................... 4 Feature Highlights ....................4 Specifications ......................4 Peripheral Interface ....................5 Dimensions ....................... 5 Connector Diagram ..................6 Interface Introduction ....................7 Installation ....................... 7 RGB Light Status ....................
  • Page 3: Revision History

    Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Revision History Version Revisions Date 01.00 Original 2023/04/15 3 / 11...
  • Page 4: Product Profile

    Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Product Profile The EZ5160 RGB is a high-power stepper motor drive control module with 8 external power MOSFETs. The maximum voltage can reach 56V, supporting a wider range of stepper motors with higher adaptability.
  • Page 5: Peripheral Interface

    Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Peripheral Interface Dimensions 5 / 11...
  • Page 6: Connector Diagram

    Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Connector Diagram Features Features (EN) Enable (VM) Motor Power Supply Voltage (SDI/CFG1) Data (GND) Ground (SCK/CFG2) Clock (B2) B Phase (CSN/CFG3) Chip Select (B1) B Phase (SDO/CFG0) Data (A1) A Phase (DIAG) Stall Detection...
  • Page 7: Interface Introduction

    Interface Introduction Installation To install the EZ driver into the EZ driver slot, follow the direction as shown in the figure below. (e.g.: Octopus MAX EZ + EZ5160RGB) RGB Light Status Blue: When the temperature is below 40°C. As the temperature rises from 40°C to 75°C, the RGB blue brightness decreases while the red brightness increases.
  • Page 8: Firmware Settings

    Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Firmware Settings Marlin Firmware Settings Important Note: Currently, only Marlin 2.0 and later firmware versions support TMC5160's SPI mode. Step 1: In the Marlin 2.0 firmware, locate and open the "Configuration.h" file, then find the line "#define MOTHERBOARD XXXXXX".
  • Page 9 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Step 3: In the file from Step 2, locate "#define TMC_SW_MOSI XXX", "#define TMC_SW_MISO XXX", and "#define TMC_SW_SCK XXX". Change "XXX" to the pins you want to use. Step 4: Find and open "Configuration_adv.h", then locate "#define TMC_USE_SW_SPI"...
  • Page 10 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Step 5: In the "Configuration_adv.h" file, find "#define X_CURRENT", "#define X_MICROSTEPS", and "#define X_RSENSE" and modify the parameters that follow (for each axis being used). The RSENSE value for each used axis should be changed to "0.050".
  • Page 11: Klipper Firmware Settings

    If you encounter other problems during use, please feel free to contact us, and we will be more than happy to assist you. If you have any suggestions or feedback for our products, we are open to hearing them. Thank you for choosing BIGTREETECH products! 11 / 11...
