Summary of Contents for Eisco PH0615

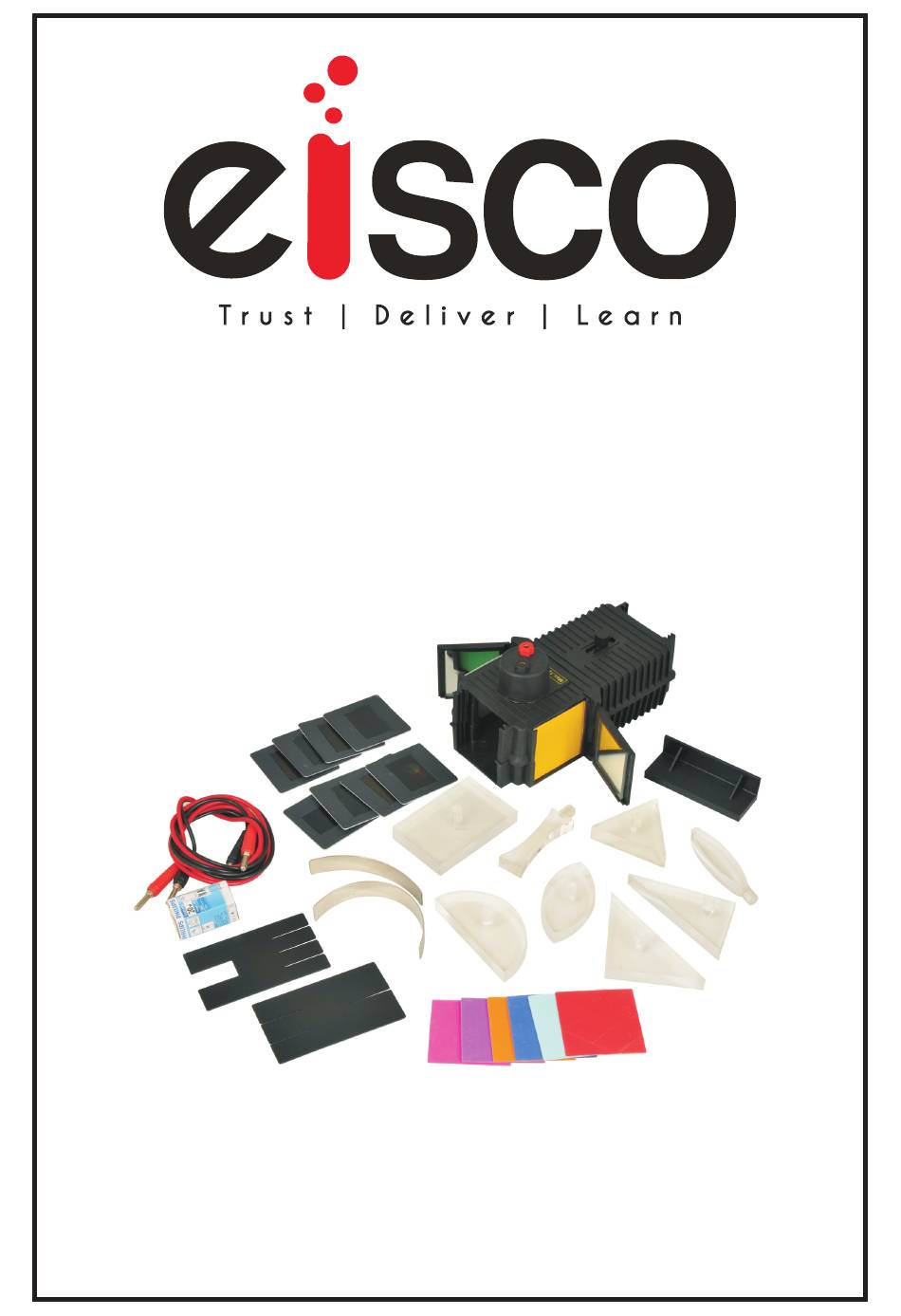

- Page 1 LIGHT BOX & OPTICAL SET CAT NO. PH 0615 Instruction Manual...
- Page 2 8 (red, magenta, orange, yellow, green, cyan, blue, violet) Rectangular prism 45, 45, 90 triangular prism Equilateral triangular prism 30, 60, 90 triangular prism Semicircular prism Bi-concave lens Bi-convex lens Parabolic mirror Semi-circular mirror Instruction manual Semi-circular dish © EISCO SCIENTIFIC www.eiscolabs.com...
- Page 3 Make sure the ray end of the box is uncovered and the underside of the box should be open to allow air to pass underneath it. Use only a 12V DC power source with the lamp in this kit. Higher voltages may blow the bulb. © EISCO SCIENTIFIC www.eiscolabs.com...
- Page 4 Take the lamp holder out of the case and insert the two plastic knobs through the notches and then twist 90 to lock the lamp into place. This is shown in diagram 2. two knobs two notches Diagram 2 © EISCO SCIENTIFIC www.eiscolabs.com...
