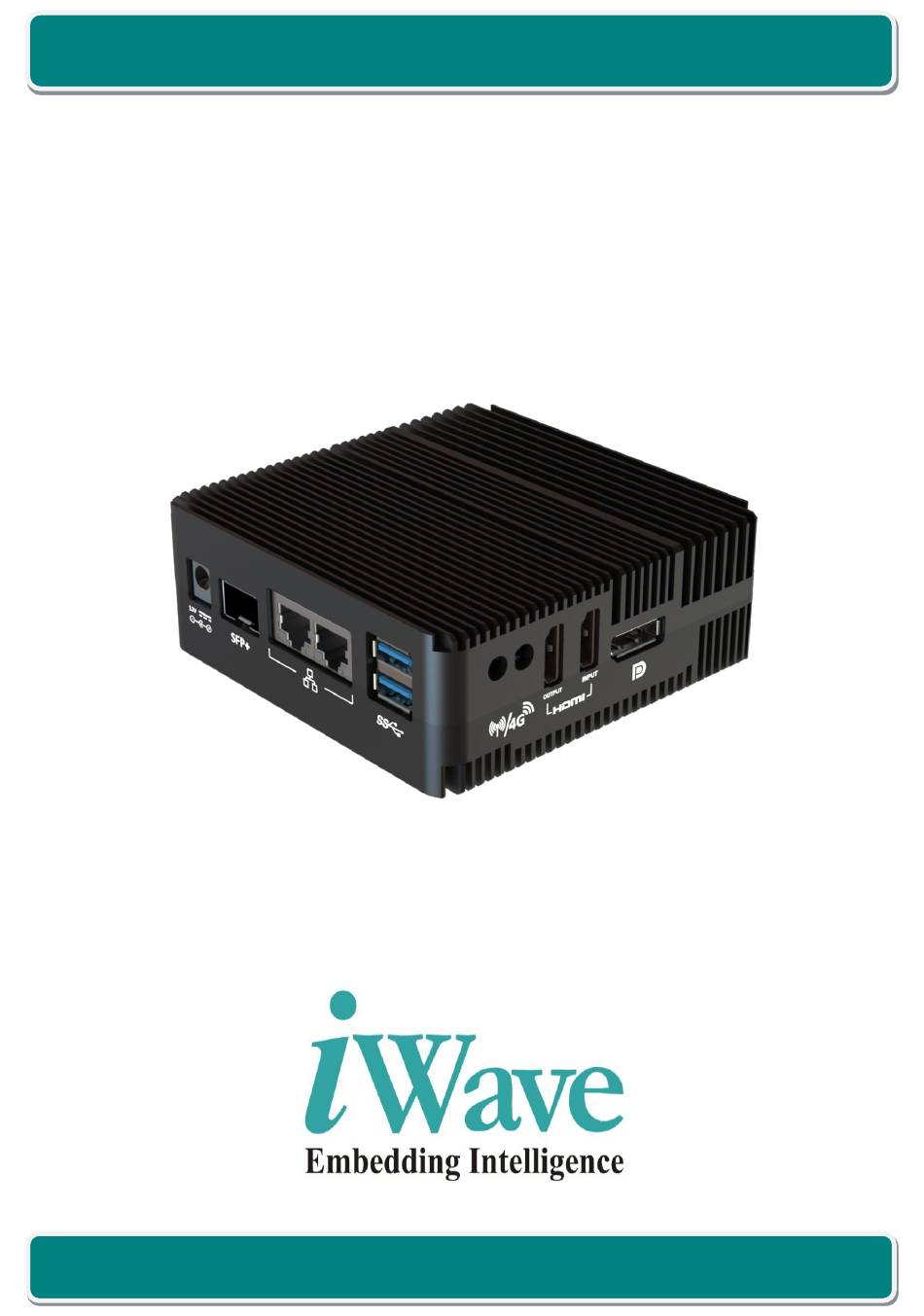

- Page 1 ARINC 818-2 Single Channel Converter ARINC 818-2 Single Channel Converter User Manual iWave Systems Technologies Pvt. Ltd. Page No. 1...
- Page 2 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
-
Page 3: Table Of Contents
ARINC 818-2 Single Channel Converter Table of Contents INTRODUCTION ............................6 Purpose ................................6 List of Acronyms ..............................6 Block Diagram ..............................7 GETTING STARTED ............................8 Guidelines for Inserting SFP module to SFP Cage ..................... 8 Guidelines for connecting OFC cable into SFP module ..................8 Guidelines for connecting HDMI cable to HDMI Port .................. - Page 4 ARINC 818-2 Single Channel Converter List of Tables Table 1: Acronyms ................................6 List of Figures Figure 1: Block diagram ..............................7 Figure 2: Supported Interfaces ............................7 Figure 3: Guidelines for Inserting SFP module to SFP Cage ....................8 Figure 4: Guidelines for Connecting OFC cable into SFP module ..................
- Page 5 ARINC 818-2 Single Channel Converter Figure 28: ARINC Recorder Configuration Component....................24 Figure 29: Recorder Status Component .......................... 25 Figure 30: Media Status Component ..........................26 iWave Systems Technologies Pvt. Ltd. Page No. 5...
-
Page 6: Introduction
ARINC 818-2 Single Channel Converter 1 Introduction 1.1 Purpose This document is intended to provide guidance and instruction for effectively utilizing the ARINC 818 Single Channel converter. 1.2 List of Acronyms Table 1: Acronyms Acronyms Description ARINC Aeronautical Radio, Incorporated... -
Page 7: Block Diagram
ARINC 818-2 Single Channel Converter 1.3 Block Diagram Active video is displayed on HDMI/DP HDMI/DP monitor Output ARINC data is received from ARINC818 SCC card SFP RX port ARINC video source HDMI Input HDMI video source ARINC video output ARINC data is... -
Page 8: Getting Started
ARINC 818-2 Single Channel Converter 2 Getting Started 2.1 Guidelines for Inserting SFP module to SFP Cage Plug in the SFP module to the SFP cage as shown in the below figure. Figure 3: Guidelines for Inserting SFP module to SFP Cage 2.2 Guidelines for connecting OFC cable into SFP module... -
Page 9: Guidelines For Connecting Hdmi Cable To Hdmi Port
ARINC 818-2 Single Channel Converter 2.3 Guidelines for connecting HDMI cable to HDMI Port System has HDMI input port and HDMI output port as shown in figure below. Based on the hardware configuration either HDMI input port will be functional or HDMI output port will be functional. HDMI input port is fixed to 1920x1080@60, that is, full HD at 60 frames per seconds. -
Page 10: Ethernet Setup
ARINC 818-2 Single Channel Converter 2.5 Ethernet Setup The SCC card is equipped with two Ethernet ports, as shown in the Figure 2. The port on the left is labelled as "Eth0", and the port on the right is labelled as "Eth1". -
Page 11: Input Power Jack Connection
ARINC 818-2 Single Channel Converter 2. Static: Selecting this option allows you to manually set a fixed IP address for the Eth1 interface. This is useful in situations where you want to ensure that the Eth1 interface always uses the same IP address, which can be important for network configurations where specific IP addresses are required for security, access control, or other network services. -
Page 12: Web Application Usage
ARINC 818-2 Single Channel Converter 3 Web Application Usage This section describes clear instructions on utilizing the ARINC Single Channel Converter web application to transmit receive and record ARINC video data. 3.1 System Requirements • Linux or Windows Host PC •... -
Page 13: Web Application
ARINC 818-2 Single Channel Converter 1. Configure Eth1: To use Eth1 for accessing the web application, first connect to the SCC card via Eth0 (as described in the section 2.5 Ethernet Setup) to configure the IP settings for Eth1. 2. Connect your computer or the SCC card’s Eth1 port to your organization’s network using an Ethernet cable. -
Page 14: Arinc Link Rate Setting
ARINC 818-2 Single Channel Converter Figure 9: Web Application Home Page The web application consists of the following pages: • ARINC Link rate Setting • ARINC Transmitter • ARINC Receiver • ARINC Recorder 3.3.1 ARINC Link Rate Setting ARINC Link Rate Setting page is used to configure the link rate of the transceiver dynamically. -
Page 15: Set Button
ARINC 818-2 Single Channel Converter • 1x (1.0625 Gbps). Figure 11: Transceiver Settings Component 3.3.1.2 Set Button The Set button is used to set the link rate. Figure 12: Set Button 3.3.1.3 Reset Button The Reset button is used to reset the link rate to 10 Gbps which is the default link rate. -
Page 16: Arinc Transmitter
ARINC 818-2 Single Channel Converter 3.3.2 ARINC Transmitter The ARINC Transmitter page allows user to configure and control the ARINC 818 transmission settings, including selecting the source, adjusting resolution, and configuring the video timing parameters to ensure optimal transmission performance. -
Page 17: Figure 15: Transmitter Source Component - Hdmi Input
ARINC 818-2 Single Channel Converter 3.3.2.1.1 HMDI Input To convert HDMI input to ARINC output select HDMI Input option as shown in the Figure 15. Figure 15: Transmitter Source Component - HDMI input This option consists of two labels, HDMI-In Resolution and Cable Status. HDMI-In resolution label displays the current resolution that is being sourced to HDMI input. -
Page 18: Arinc 818 Tx Configuration
ARINC 818-2 Single Channel Converter 3.3.2.1.3 Video File To convert Video File data to ARINC output select this option as shown in the Figure 17. This option consists of storage Media select drop-down menu, File Name select drop-down menu, Video resolution label and Encoder label. -
Page 19: Figure 18: Arinc Tx Configuration - Standard Resolution
ARINC 818-2 Single Channel Converter 3.3.2.2.1 Standard Resolution Configuration Standard resolution is the list of pre-defined resolution with video timing details calculated using CVT-RB standard. To configure standard resolution, select the Standard Resolution option as shown in the Figure 18. -
Page 20: Figure 19: Arinc Tx Configuration - Custom Resolution
ARINC 818-2 Single Channel Converter 3.3.2.2.2 Custom Resolution Configuration The Custom Resolution option allows users to manually input their own resolution and video timing parameters. By default, the application calculates the initial video timing values using the CVT-RB standard, but users can adjust these values according to their preferred video timing standard or specific requirements. -
Page 21: Start/Stop Buttons
ARINC 818-2 Single Channel Converter • SOF Class: This drop-down consists of the list of SOF class supported by ARINC IP. User can select any of the listed SOF class from the list to configure ARINC output with a particular SOF class ordered set. -
Page 22: Arinc Receiver
ARINC 818-2 Single Channel Converter 3.3.3 ARINC Receiver The ARINC Receiver page allows user to configure and control the ARINC 818 Reception settings, including selecting the video output port, selecting the video output resolution, and controlling the video stream from ARINC Receiver to video output interface. -
Page 23: Start/Stop Buttons
ARINC 818-2 Single Channel Converter • ARINC Rx Color Format: Displays the current color format being received by the ARINC receiver, indicating the encoding format of the input signal. • Video Out Port: This drop-down list is used to select the video output port. This option will be limited by the user’s choice of SCC card configuration. -
Page 24: Arinc Recorder
ARINC 818-2 Single Channel Converter 3.3.4 ARINC Recorder The ARINC Recorder page enables users to configure and manage the settings for the ARINC 818 Recorder. This recorder captures video data received by the ARINC receiver and saves it as an encoded video file. Users can easily adjust recording parameters and control the recording process, ensuring accurate and efficient video data capture from the ARINC 818 interface. -
Page 25: Recorder Status
ARINC 818-2 Single Channel Converter It consists of the following components: • ARINC Rx Resolution: Displays the current resolution being received by the ARINC receiver, providing real- time information on the input signal's resolution. • ARINC Rx Color Format: Displays the current color format being received by the ARINC receiver, indicating the encoding format of the input signal. -
Page 26: Media Status
ARINC 818-2 Single Channel Converter 3.3.4.3 Media status The Media status component is used to monitor and manage the storage media and the files stored on it, providing users with real-time information and control over the media's contents. Figure 30: Media Status Component It consists of the following components: •... -
Page 27: Technical Support
ARINC 818-2 Single Channel Converter 4 Technical Support iWave Systems Technologies Pvt. Ltd. # 7/B, 29th Main, BTM Layout 2nd Stage, Bangalore – 560 076 Phone: +91-80-26683700, 26786245 Fax: +91-80-26685200 Web: www.iwavesystems.com iWave Systems Technologies Pvt. Ltd. Page No. 27... - Page 28 ARINC 818-2 Single Channel Converter iWave Systems Technologies Pvt. Ltd. Page No. 28...
