- Page 1 ASUS STRIX G15 (G513R) series Service Guide...
- Page 2 LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property;...
- Page 3 Disclaimer ASUS is not responsible for direct, indirect, intentional or unintentional damages resulting from improper installation and operation. Safety precautions • Keep liquids or moisture away from your Notebook PC before installing or removing any components. • Ensure to place your Notebook PC on a stable surface before installing or removing any components.
-
Page 4: Table Of Contents
Table of Contents ⚫ Service Overview ⚫ ASUS ROG STRIX G15 (G513R) series Overview ⚫ Components Top View ⚫ Components Bottom View ⚫ Repair Overview ⚫ Appropriate Tools ⚫ Keyparts and Related Parts ⚫ Disassembly steps : • BOTTOM CASE •... -
Page 5: Service Overview
Service Overview • Carefully read through this Service Guide for a look at various components of the device before performing any service and repairs. • To provide the best service, we have provided the below information for technicians from distributors and resellers to perform the complete device disassembly and assembly. -
Page 6: Asus Rog Strix G15 (G513R) Series Overview
ASUS ROG STRIX G15 (G513R) series Overview Top View Bottom View Right View ❶ Air vents Left View ❶ Air vents ❷ Audio speakers ❸ Compartment cover ❶ Air vents ❷ USB 3.2 Gen 1 port ❸ Headphone/Headset/Microphone jack Rear View ❶... -
Page 7: Components Top View
Components Top View HINGE CAP HINGE COVER LCD COVER MODULE PANEL KEYBOARD MODULE HINGE LCD BEZEL BASE CASE TP FRAME TOUCHPAD THERMAL MODULE BATTERY BATTERY CABLE SPEAKER SET CLICKPAD NUMBERPAD LED FFC EDP CABLE MAIN BOARD SOUL KEY BD INDICATOR BOARD MIC BD LED BOARD (14P 0.5 L160mm) -
Page 8: Components Bottom View
Components Bottom View LCD BEZEL LCD COVER MODULE KEYBOARD MODULE BASE CASE LCD PANEL LCD ADHESIVE PANEL L/R MAIN BOARD SOUL KEY BD THM SSD GS THERMAL MODULE ASSY LED BOARD LCD BEZEL ADHESIVE ANTENNA CABLE ACETATE CLOTH TP FRAME MYLAR TOP CASE SPONGE TP PCB TAPE BEZEL ADHESIVE UP... -
Page 9: Repair Overview
Repair Overview This chapter describes disassembly and assembly (Assemble document please look up from the last page), please follow the information provided in this section to perform the complete disassembly procedure. Precautions: Before you perform any service or repair on the notebook, please pay special attention to the cautions prevent any damages to the notebook. 1. -
Page 10: Appropriate Tools
Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ASUS ROG Strix G15 (G513R) series notebook. Alcohol 95% Glove Dust-free Cloth Screwdriver Please accord to different screw specification to choose different screwdriver and head. Plastic Blade PLASTIC CARD T=0.35mm... - Page 11 Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ASUS ROG Strix G15 (G513R) series notebook. ❺ ❼ ❶ ❸ ❻ ❷ ❹ Item Part Name Memo ❶ Silicone scraping pen Please store it in the environment of 10 ~ 40 ℃.
-
Page 12: Bottom Case
BOTTOM CASE Disassembly Notice For G513RE/RC/RH (X60) Step 1 : Remove screws *10pcs. Screws Spec Torque (kgf-cm) There are cables which connected to MB, so please do not Step 2 : Use plastic blade to pry the bottom case. pull out the bottom case directly. M2.5*9L(4.6,0.85)(K) #1 2.5±0.2 Step 3 : Disconnect LED R and LED L connector. - Page 13 BOTTOM CASE Disassembly Notice Assembly Notice Step 1 : Remove screw*2pcs. If FFC is damage during disassembly, Step 2 : Remove LED module. please replace new one. Here are some samples of FFC Step 3 : Disconnect LED R and LED L FFC*2pcs. damage: Screws Spec...
-
Page 14: Battery And Ssd
BATTERY and SSD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Before disassembly battery connector, please be sure to pull out adapter and disconnect the battery more than ten seconds in order to IC damage. Step 1 : Disconnect the battery connector. -
Page 15: Ddr
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Tear off the DDR Absorber. Step 2 : Unlock the DDR. Step 3 : Remove the DDR. Assembly Notice After DDR assembly, please paste the Absorber on slot. Tear off Remove Unlock... -
Page 16: Soul Key Board
SOUL KEY BD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screw *2pcs. Screws Spec Torque (kgf-cm) Assembly Notice Step 2 : Remove SOUL KEY BOARD. M2*3.5L (4,0.8)(K) #1 2.0±0.2 If FFC is damage during disassembly, please replace new one. -
Page 17: Wifi Card
WIFI CARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the RF CABLE connector *2pcs. Screws Spec Torque (kgf-cm) Assembly Notice Step 2 : Remove the screw *1pc. M2*2.5L (5.0,0.8) (K) #1 2.0±0.2 Step 3 : Remove WIFI CARD. -
Page 18: Speaker
SPEAKER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Release tape and gasket *4pcs. Step 2 : Disconnect the SPEAKER connector. Assembly Notice Step 3 : Remove the SPEAKER. For Speaker assembly, please follow yellow and red mark below to tidy up cable. Disconnect Release Remove... -
Page 19: Fan
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Assembly Notice Step 1 : Disconnect (yellow mark) connector. If FFC is damage during disassembly, please Screws Spec Torque (kgf-cm) Step 2 : Remove screws *6pcs. replace new one. Here are some samples of M2*4.5L (4.5,0.8) (K) #1 1.8±0.1 Step 3 : Remove FAN *2pcs. -
Page 20: Thermal Module (With Main Board)
THERMAL MODULE(with MB) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect (yellow mark) connector and release tapes (orange mark). Assembly Notice Step 2 : Remove screws *8pcs (blue mark) and remove Thermal module (with MB). 1. -
Page 21: Main Board
MAIN BOARD Mainboard connector placement U LIGHT BAR L FFC LED FFC CPU FAN EDP CABLE VGA FAN RF CABLE and WIFI ANTENNA U LIGHT BAR R FFC SPEAKER SET TP FFC Supports using JIG BOARD to refresh F1 BIOS For G513RM/RS/RW BATTERY KB FPC... - Page 22 MAIN BOARD G513RX =X50 Materials on mainboard G513QC MB AL+ABSORBER G513RX =X50 G513QC HDMI GASKET|LONGYANG G513RX/RW/RS/RM/RC G513RX AMD PCB TAPE|TENYI G513RE/RC/RH=X60 G533QS GPU ABSORBER G533ZX TYPEC AL FOIL MYLAR G513RX =X50 G533QS CPU ABSORBER(X50 GPU) G532LWS CPU BKT ASSY Please refer Repair Notice G532LWS GPU BKT ASSY G533QS MB MYLAR G533QS DDR ABSORBER...
-
Page 23: Indicator Bd
INDICATOR BD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Release KB BRKT LED BD CONDUCTIVE TAPE *2pcs. Step 2 : Disconnect connect *2pcs. Assembly Notice Step 3 : Remove INDICATION BD. If FFC is damage during disassembly, please Release replace new one. -
Page 24: Touchpad Module
TOUCHPAD MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Take away the Antenna cable. Assembly Notice Screws Spec Torque (kgf-cm) Step 2 : Tear off the gasket. M2*2.5L (5,0.5)(K)#1 1.5±0.2 Step 3 : Disconnect and remove TP FFC. For New TOUCHPAD Module assembly, please follow the steps below. -
Page 25: Keyboard Module
KEYBOARD MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *4pcs. Screws Spec Torque (kgf-cm) Assembly Notice Step 2 : Remove hinge cover. Step 3 : Remove screws *6pcs. M2.5*4.5L(4.5,0.8) (K)#1 2.5±0.2 Please follow the red mark location to assembly and tidy up Step 4 : Open and remove keyboard module. -
Page 26: Mic Board
MIC BOARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the FFC and remove the screws*2pcs. Screws Spec Torque (kgf-cm) Assembly Notice Step 2 : Remove MIC RUBBER. M2*2L(8,0.8) (K)#1 2.0±0.2 If FFC is damage during disassembly, please replace new one. -
Page 27: Lcd Bezel
LCD BEZEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Remove LCD BEZEL. Assembly Notice Start from the bottom right corner of the bezel, using the Plastic Blade to pry open bezel. When reuse the LCD BEZEL: Please paste new LCD BEZEL ADHESIVE before assembly BEZEL. -
Page 28: Lcd Panel
LCD PANEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *8pcs, then remove R hinge. Screws Spec Torque (kgf-cm) Step 2 : Unlock hinge cap hook, then remove L hinge. Step 3 : Pull out LCD adhesive *2pcs. - Page 29 LCD PANEL Assembly Notice Please be sure to pull out adapter and disconnect the battery. When reusing the LCD PANEL or BEZEL : Before assembly L HINGE, please follow the steps to tidy up EDP cable, hinge cap and Please use the fingertip to clean the residual glue on PANEL or BEZEL. L HINGE.
-
Page 30: Lcd Cover
LCD COVER Please be sure to pull out adapter and disconnect the battery. Assembly Notice Please follow the green mark to tidy up the EDP cable. When reuse the LCD COVER : Please paste LCD ADHESIVE R and L *2pcs (yellow mark). (New LCD COVER already contains LCD ADHESIVE R and L *2pcs) Back...
Need help?
Do you have a question about the STRIX G15 Series and is the answer not in the manual?
Questions and answers

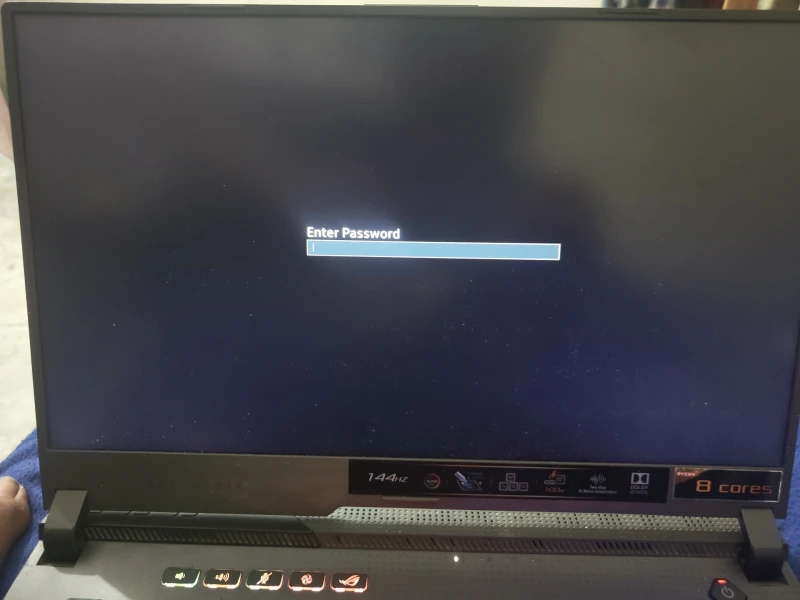

I forgot my bios password
The manual mentions using a JIG BOARD to refresh the BIOS for certain models of the Asus STRIX G15 Series (G513RM/RS/RW and G513RC). This suggests that resetting the BIOS password may require specialized tools or procedures, such as using a JIG BOARD to reflash the BIOS. If you need to reset the BIOS password, consider contacting the manufacturer or an authorized service provider for assistance.
This answer is automatically generated

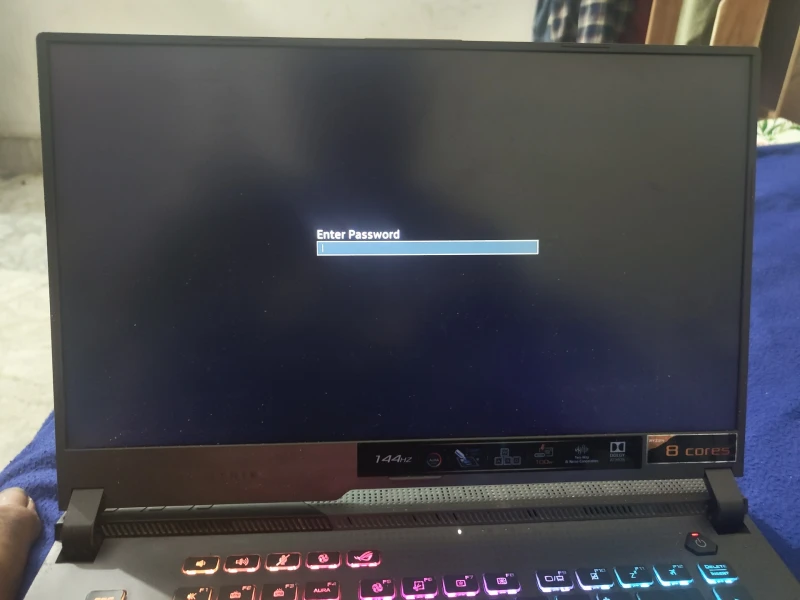

I forgot my bios password
