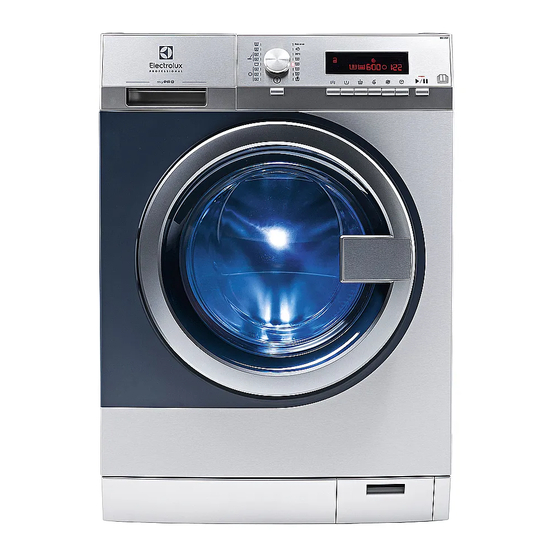

- Page 1 User manual Washer extractor WE170P PNC 914535312 157016025/EN Original instructions 2024.01.10...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Information ..........................5 Children and vulnerable people safety ..................5 Installation..........................6 Electrical connection ........................7 Water connection ........................7 Use............................7 Care and cleaning........................7 Internal lighting ..........................8 Service .............................8 Disposal............................8 2 Warranty terms and exclusions......................9 3 Product description..........................10 4 Accessories ............................11 Stacking kit..........................12 Pedestal with the drawer ......................12 Anchoring kit ...........................12... - Page 4 Contents 13.6 Cleaning the detergent dispenser....................27 13.7 Cleaning the drain filter......................27 13.8 Cleaning the inlet hoses and the valve filters ................27 13.9 Emergency drain ........................28 13.10 Frost precautions ........................28 14 Trouble shooting ..........................29 14.1 Alarm Codes and Possible failures ....................29 15 Emergency door opening ........................31 16 Technical data...........................32 17 Disposal information ..........................33...
-
Page 5: Safety Information
User manual 1 Safety Information Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the in- structions in a safe and accessible location for future reference. -
Page 6: Installation
User manual 1.2 Installation • This appliance is designed for washing clothes, linen, household goods made of woven and non woven materials and other products for which the manufacturer permits wash- ing in automatic washer extractors, both for domestic purposes and for professional purposes in institutions and organizations (including mini-hotels, hotels, kindergartens, schools, medical facilities, factories and industrial enterprises, laundries, beauty salons, catering establishments, sports clubs, fitness centers and others similar institutions... -
Page 7: Electrical Connection
User manual 1.3 Electrical connection • The appliance must be correctly earthed. The manufacturer is not responsible for the consequences of an inadequate earthing system. • Always use a correctly installed shockproof socket. • Make sure that the parameters on the rating plate are compatible with the electrical rat- ings of the mains power supply. -
Page 8: Internal Lighting
User manual 1.7 Internal lighting Warning Risk of injury. • Visible LED radiation, do not look directly into the beam. • To replace the internal lighting, contact the Authorized Service Centre. 1.8 Service • To repair the appliance, contact the Authorized Service Centre. •... -
Page 9: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 10: Product Description
User manual 3 Product description fig.X02928 Worktop Detergent dispenser Control panel Door handle Internal light Rating plate Drain pump filter and emergency door opening Feet for levelling the appliance... -
Page 11: Accessories
User manual 4 Accessories fig.X02930 Spanner To remove the transit bolts. Plastic hose guide To connect the drain hose on the edge of a sink. Plastic caps To close the holes on the rear side of the cabinet after the removal of the transit bolts. Inlet hoses To connect the appliance to the cold and hot water tap: blue cap hose for cold water and red cap hose for hot water. -
Page 12: Stacking Kit
User manual 4.1 Stacking kit It is available from your authorized vendor. Stacking kit can be used only with the tumble dryers specified in the leaflet. See the leaflet attached. Read carefully the instructions supplied with the accessory. fig.X02238 4.2 Pedestal with the drawer It is available from your authorized vendor. -
Page 13: External Detergent Dispenser
User manual 4.4 External detergent dispenser It is available from your authorized vendor. The liquid detergent can be loaded automatically from an external dispenser. Read carefully the instructions supplied with the accessory. fig.X02932 5 Before first use 1. Make sure that all transit bolts are removed. 2. -
Page 14: Control Panel
User manual 6 Control panel fig.X02975 Auto Off button Program knob Display Start/Pause button Delay start button No softener button Spin time button Extra rinse button Pre wash button Pre rinse button... -
Page 15: Display
User manual 6.1 Display fig.X02935 Symbol on the display Symbol description The child safety lock is activated. The child safety lock is deactivated. Extra rinse symbol. is the symbol indicating the rinse phase and “ + “ lights up when the Extra rinse is selected. -
Page 16: Programs
User manual 7 Programs The following table shows the available programs and a short description of those: Program Maximum load Reference spin Spin Time Description speed Temperature range 4.0 kg 1400 rpm 540 – 5 seconds White cotton and fast-coloured cotton. Normally soiled items. -
Page 17: Consumption Values
User manual 8 Consumption values Stated values are obtained in laboratory conditions with relevant standards. Different causes can change the data: the quantity and type of laundry and ambient temperature. Water pressure, the supply voltage and the temperature of inlet water may also affect the program duration. At the start of the program, the display shows the program duration for the maximum load capacity. -
Page 18: Options
User manual 9 Options 9.1 Pre rinse Press this button to add a pre rinse phase without detergent before washing. The display shows the related indicator 9.2 Pre wash With this option you can add a prewash phase to a program. Use this option for heavy soil. -
Page 19: Settings
User manual 10 Settings 10.1 Acoustic signals The acoustic signals operate when: • You activate the appliance. • You select a program. • You deactivate the appliance. • You press the buttons. • The program is completed. • The appliance has a malfunction. To deactivate/activate the acoustic signals, press at the same time for 6 seconds. -
Page 20: Daily Use
User manual 11 Daily use Warning Please refer to the “Safety information” sections. 11.1 Loading the laundry 1. Pull the handle to open the door. 2. Shake the items before you put them in the appliance. 3. Put the laundry in the drum, one item at a time. Make sure not to put too much laundry in the drum. 4. -
Page 21: Using Detergent And Additives
User manual 11.3 Using detergent and additives 1. Measure out the detergent and the fabric conditioner. 2. Put the detergent and the fabric conditioner into the compartments. 3. Carefully close the detergent dispenser. fig.X03523 11.4 Detergent compartments Caution Use only specified detergents for washer extractors. Always obey the instructions that you find on the packaging of the detergent products. -
Page 22: Setting A Program
User manual 11.7 Setting a program 1. Turn the program knob and set the program: • The related program indicator comes on. A tune sounds (if it is activated). • The indicator of Start/Pause button flashes. • The display shows the program duration and the indicators of the program phases. 2. -
Page 23: Cancelling A Running Program
User manual 11.12Cancelling a running program 1. Press the button for some seconds to cancel the program and to deactivate the appliance. Warning If the appliance has already uploaded water, the door remains locked. 2. Press the same button again to activate the appliance. Now, you can set a new program. Before starting the new program the appliance could drain the water. -
Page 24: Hints And Tips
User manual 12 Hints and tips Warning Please refer to the “Safety information” sections. 12.1 The laundry load • Divide the laundry in: white, coloured, synthetics, delicates and wool. • Obey the washing instructions that are on the laundry care labels. •... -
Page 25: Detergent Type And Quantity
User manual 12.3 Detergent type and quantity The choice of detergent and use of correct quantities not only affects your wash performance, but also helps to avoid waste and protect the environment: • Use only detergents and other treatments specially made for washer extractors. First, follow these generic rules: –... -
Page 26: Care And Cleaning
User manual 13 Care and cleaning Warning Please refer to the “Safety information” sections. 13.1 External cleaning Clean the appliance with soap and warm water only. Fully dry all the surfaces. Do not use a scouring pads or any scratching material. Caution Do not use alcohol, solvents or chemical products. -
Page 27: Cleaning The Detergent Dispenser
User manual 13.6 Cleaning the detergent dispenser fig.X02966 13.7 Cleaning the drain filter Do not clean the drain filter if the water in the appliance is hot. Regularly check the drain pump filter and make sure that it is clean. Repeat the steps 2 and 3 until the water stops flowing out. -
Page 28: Emergency Drain
User manual 13.9 Emergency drain Because of a malfunction, the appliance cannot drain the water. If this occurs, do steps 1–9 of the “Cleaning the drain filter” section. If necessary, clean the pump. When you drain the water with the emergency drain procedure, you must activate the drain system again: 1. -
Page 29: Trouble Shooting
User manual 14 Trouble shooting Warning Please refer to the “Safety information” sections. 14.1 Alarm Codes and Possible failures If the appliance does not start or it stops during operation; first try to find a solution to the problem (refer to the follow- ing tables). - Page 30 User manual If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorized Service Centre. In case of different problem with the washer extractor check the table below for possible solutions. Problem Possible solution The program does not start •...
-
Page 31: Emergency Door Opening
User manual 15 Emergency door opening In case of power failure or appliance failure the appliance door remains locked. The program continues, when the power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock feature. -
Page 32: Technical Data
User manual 16 Technical data Dimension Width x Height x Total depth 600 mm / 850 mm / 605 mm / 639 mm Electrical connection Voltage 230 V Overall power 2200 W Fuse 10 A Frequency 50 Hz Level of protection against ingress of solid particles and moisture ensured by the protective cover, IPX4 except where the low voltage equipment has no protection against moisture Water supply pressure... -
Page 33: Disposal Information
User manual 17 Disposal information 17.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 36 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
