OPERATOR'S MANUAL
MANUEL D'UTILISATION
MANUAL DEL OPERADOR

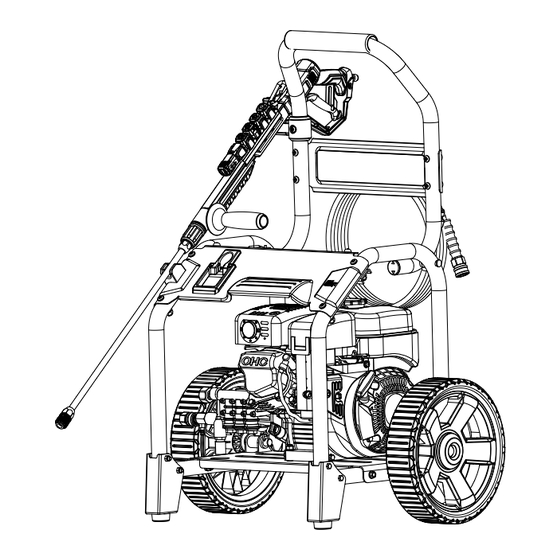

GASOLINE PRESSURE WASHER
NETTOYEUR HAUTE PRESSION À
L'ESSENCE
LAVADORA A PRESIÓN CON MOTOR DE
GASOLINA
MODEL NO. 986003
NO. DE MODÈLE / NÚM. DE MODELO
ITEM NO. GV80991A SERIES/ SÉRIE/ SERIE
ARTICLE NO. / ART. NÚM.
Y
our pressure washer has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this
product. If you do not understand the warnings and instructions in the operator's manual, do not use this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Ce nettoyeur haute pression à essence a été conçu et fabriqué
conformément à nos strictes normes de fiabilité, simplicité d'emploi
et sécurité d'utilisation. Correctement entretenu, cet outil vous
donnera des années de fonctionnement robuste et sans problème.
AVERTISSEMENT :
blessures, l'utilisateur doit lire et veiller à bien comprendre
le manuel d'utilisation avant d'employer ce produit. Si tous
les avertissements et toutes les consignes de sécurités et
instructions du manuel d'utilisation ne sont pas bien compris,
ne pas utiliser ce produit.
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
Pour réduire les risques de
NOTICE
Do not use E15 or E85 fuel (or
fuel containing greater than 10%
ethanol) in this product. It is a
violation of federal law and will
damage the unit and void your warranty.
Ne pas utiliser d'essence E15 ou E85 (ou un carburant
contenant plus de 10 % d'éthanol) dans ce produit. Une
telle utilisation représente une violation de la loi fédérale
et endommagera l'appareil et annulera la garantie.
No utilice combustibles E15 o E85 (ni combustibles que
contengan más de 10 % de etanol) con este producto.
Esto constituye una violación a la ley federal, dañará la
unidad y anulará la garantía.
Su lavadora de presión de gasolina ha sido diseñado y fabricado de
conformidad con nuestras estrictas normas para brindar fiabilidad,
facilidad de uso y seguridad para el operador. Con el debido cuidado,
le brindará muchos años de sólido funcionamiento y sin problemas.
ADVERTENCIA:
el usuario debe leer y comprender el manual del operador antes
de usar este producto. Guarde este manual del operador y
estúdielo frecuentemente para lograr un funcionamiento seguro
y continuo de este producto.
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
AVIS
AVISO
Para reducir el riesgo de lesiones,
20000893B
