- Page 1 OPERATING INSTRUCTIONS Digital Pressure Gauge DM 80 L...
-
Page 2: Table Of Contents
Legal notice This work is prodected by copyright . The rights established thereby remain with the company BTS Turbo GmbH. Reproduction of this work or parts of this work is only permitted within the limits of the statutory provisions of copyright law. Any modification, shortening or translation of this work without the explicit written consent of the BTS GmbH is prohibited. -
Page 3: Safety
2. Safety Safety notes and regulations To ensure safe and reliable work with the digital pressure gauge and to protect the user from injuries, the following points are to be observed: Read the operating instructions carefully. The digital pressure gauge may only be operated and installed in systems by trained specialists who possess the necessary expertise and qualifications to perform these tasks, and who are familiar with the applicable standards, regulations and requirements of the field of application. -
Page 4: Explanation Of Symbols
Ambient conditions The DM 80 L digital pressure gauge is only intended for use in commercial workshops. It is not approved for ATEX areas and therefore must not be used in potentially explosive areas. -
Page 5: Product Description

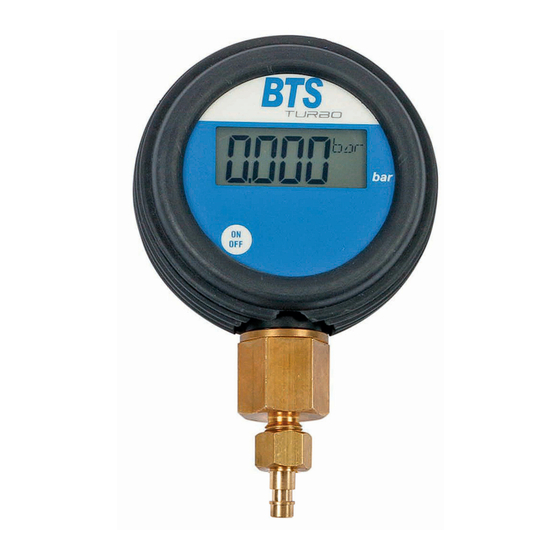

3. Product description The DM 80 L is a digital pressure gauge with actual value display, min/max display, accuracy class 0.5 FS and measuring unit bar. Device view, keys and functions Display: 3½ digit display, to display the measured values. -
Page 6: Delivery Content
Delivery content – 1 Pressure gauge – 1 Rubber protective cap, black If the device displays "OFL" (overflow), this means that the existing pressure is too high. The device switches off automatically after 5 minutes if there is a maximum pressure change of 2 % of the respective end value. 4. -
Page 7: Handling Instructions
Attention Follow the instructions and specifications of the system manufacturer regarding the tightening torque for screw fittings, adapters, etc. Install the pressure gauge in the system at the measuring point. To do this, loosen or open the screw connection and install the pressure gauge. Tighten the screwed connections to the specified torque. -
Page 8: Environmentally Friendly Disposal
95…100 Diameter without rubber cap ca. 80 Subject to technical alterations. 10/2022 BTS Turbo GmbH, Paradeisstr. 56, 82362 Weilheim, Germany w w w. b t s - t u r b o . d e - 8 -...
