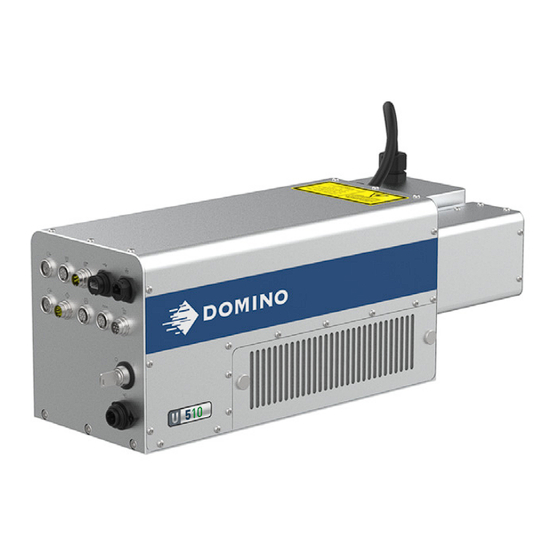

Domino U Series User Manual
  1. Manuals
  2. Brands
  3. Domino Manuals
  4. Laboratory Equipment
  5. U Series
  6. User manual

Domino U Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U-Series
User Guide
U510 Standard

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U Series and is the answer not in the manual?

Questions and answers

Related Manuals for Domino U Series

Summary of Contents for Domino U Series

  • Page 1 U-Series User Guide U510 Standard...

  • Page 2: Amendment Record

    Domino Printing Sciences has a policy of continuous product improvement. The Company, therefore, reserves the right to modify the specification contained in this manual without notice. For sales and service assistance visit the website below and select “Contact Domino in your country” for local technical support: http://www.domino-printing.com ©...
  • Page 3 ORIGINAL EU DECLARATION OF CONFORMITY EPT072000 Issue 2 January 2023...

  • Page 4: Translation Of The Original Declaration Of Conformity

    BROTHER INDUSTRIES, LTD., 15-1 Naeshiro-cho, Mizuho-ku, Nagoya, 467-8561, Japan Trademark DOMINO Authorized Representative Domino Laser GmbH, Fangdieckstrasse 75a, 22547 Hamburg, Germany Product Type Domino U-Series Laser Coding System Model/Typer Number(s) U510 STANDARD consisting of Laser Head and an optional Control Panel...
  • Page 5 ORIGINAL UK DECLARATION OF CONFORMITY EPT072000 Issue 2 January 2023...
  • Page 6 BROTHER INDUSTRIES, LTD., 15-1 Naeshiro-cho, Mizuho-ku, Nagoya, 467-8561, Japan Trademark DOMINO Authorized Representative Domino UK Limited, Bar Hill, Cambridge CB23 8TU, UK Product Type Domino U-Series Laser Coding System Model/Typer Number(s) U510 STANDARD consisting of Laser Head and an optional Control Panel...
  • Page 7 THIS PAGE INTENTIONALLY LEFT BLANK EPT072000 Issue 2 January 2023...

  • Page 8: Intended Use Of Equipment

    This document describes basic information and is aimed at anyone coming into contact with the equipment. Domino expects that all operators receive product training before operating the equipment. The equipment must only be operated by trained and competent users. Domino U510 STANDARD laser coding system is manufactured by Brother Industries Ltd.

  • Page 9: Warning, Caution And Note Definitions

    WARNING, CAUTION AND NOTE DEFINITIONS WARNING: A hazard which can cause death or injury Avoidance..Do/Do not..A warning is used to alert the reader to hazards that will cause loss of life, physical injury or ill health. It includes how to avoid the risk. CAUTION: A hazard which can cause damage to equipment or environment.
  • Page 10 U510 STANDARD LASER CODER WARNING: Class 4 Laser. Risk of personal injury. Fit the coder with class 1 laser safety guarding before it is operated or made ready for use. This is necessary to safeguard against accidental exposure to direct or scattered radiation.
  • Page 11 This manual has been produced for use for the Domino U510 STANDARD Laser Coder. This manual is designed to reinforce and complement any training program available with the product. It is not designed to replace a training program. WARNING: Class 4 Laser. Risk of personal injury.
  • Page 12 PRODUCT/BATTERY END OF LIFE WARNING: Flammable Material. Risk of Fire or Explosion. Do not dispose the battery in a fire, hot oven, by mechanically crushing or cutting. Obey local waste regulations when disposing of batteries. Do not store or leave the battery in high of low extremes of temperature. Do not store or leave the battery in a location that is subject to low air pressure at high altitude.
  • Page 13 LASER SPECIFICATION (SOURCE) Coding Laser Item Specification Notes Wavelength 355 nm Invisible Beam Laser Type Nd: YVO - THG Laser Oscillation Pulsed Nominal Output Power From the laser Pulse Repetition Frequency 0 - 500 kHz Range Pulse Duration 5- 50 ns Max.
  • Page 14 LASER SPECIFICATION (PRODUCT) Coding Laser Item Specification Notes Wavelength 355 nm Invisible Beam Laser Type Nd: YVO - THG Laser Oscillation Pulsed Nominal Output Power 4.5 W From the coder Pulse Repetition Frequency 50 - 500 kHz Range Pulse Duration 5- 50 ns Max.
  • Page 15 LASER CODER SPECIFICATION U510 STANDARD Electrical Requirements 100-240 VAC, max. 3A, 50/60 Hz Maximum Power Consumption 300 VA Nominal Laser Power Min. 4.5 W at a wavelength of 355 nm Max. (Peak) Laser Power 12 W Laser Type Nd: YVO - THG Laser Duty Cycle* 100%...
  • Page 16 Use this product indoors under the conditions listed below: • Altitudes: less than 2000 m or approximately 6500 ft • Power supply voltage fluctuation: ± 10% • Pollution degree: 2 • Transient over-voltage: Category II Switch Off Time The laser is safe 40 ms after opening the safety circuit. EPT072000 Issue 2 January 2023...
  • Page 17 INTENDED USE OF EQUIPMENT The U510 STANDARD laser coding system is intended for fully automated coding of packaging materials and products by laser radiation. If the laser coding system is used for any other purpose, all liability claims will be refused. Always obey the technical specifications listed.

  • Page 18: Health And Safety

    As sold, this is a Class 4 Laser Product. During operation, it will emit up to 12 W of pulsed invisible UV laser radiation at a wavelength of 355 nm. Note: Laser safety goggles (DLB6 IRLB8 (OD 8+)) can be ordered from Domino (Domino part number EPT074032SP). WARNING: Laser Radiation.
  • Page 19 Obey instructions listed below: • Only use the laser system after it has been installed and guarded to Class 1 laser safety standards (IEC60825-1:2014). • Only use the equipment for its intended purpose. • Only operate the equipment in good, serviceable condition. •...
  • Page 20 Specific Dangers Electrical Energy WARNING: High Voltage. Risk of Injury. Work on live electrical components must only be performed by authorized personnel. The maximum operating voltage of the U510 STANDARD is the connected mains voltage. If power supply becomes defective, stop operation of the laser coding system immediately.
  • Page 21 Lenses CAUTION: Sensitive Equipment. Risk of Damage to Lenses. Do not touch the lenses. Oils and dirt can cause damage to the laser. CAUTION: Sensitive Equipment. Risk of Damage to Lenses. Remove the lens cover before operation. Cover the lens with lens’ protective cover to avoid accidental water splashing.
  • Page 22 Scan Head Mirrors The scan head mirrors are located behind the lens. Do not access or touch the scan head mirrors. CAUTION: Sensitive Equipment. Risk of Damage to Mirrors. Do not touch the mirrors. Oils and dirt can cause damage to the laser. If the mirror is touched, carefully clean with Isopropyl Alcohol.
  • Page 23 This Domino laser coding system can emit class 4 laser radiation through the lens of the scan head when the dual channel safety circuit is closed and the system is powered.
  • Page 24 Mandatory Labelling With Warning Labels During Installation The laser system is fitted with international graphical laser warning signs and numbers of laser performance data based on Standard IEC 60825-1 “Safety of laser products” during manufacturing. To ensure that the meaning of the graphical laser warning symbols is understood, the laser safety standard defines supplementary text on these signs to increase comprehension.
  • Page 25 Laser Coder Warning Labels U510 STANDARD Warning Label and Explanatory Label Laser Emitting Aperture Aperture Label EPT072000 Issue 2 January 2023...
  • Page 26 Labels on the Type Sign Find below the labels used on the type sign and their description Label Description Authorized representative in the European Community Authorized representative in the United Kingdom Serial Number Date of Manufacture Model Number Manufacturer EPT072000 Issue 2 January 2023...

  • Page 27: Controls And Indicators

    CONTROLS AND INDICATORS The User Interface, Indicator Lamps and Software icon functions are described below: Controls (U510 STANDARD) Note: The On/Off Key Switch starts and stops the laser coder (fans and laser tube start). Ethernet Fume Beacon GPIO 1 Extraction On/Off Keyswitch AC Power...

  • Page 28: Indicator Lamps

    INDICATOR LAMPS Laser Status U510 STANDARD The Laser LED is powered by switching on the laser via the software. EPT072000 Issue 2 January 2023...
  • Page 29 The table below illustrates what colour lights are shown on the Beacon, UI, Status LED and Laser LED for each status: Laser Indicator Status Indicator State Beacon Initialising Blue Blue Flashing Green System Blue Blue Flashing Blue Green Standby Ready to Green Green Blue...

  • Page 30: User Interface

    USER INTERFACE LMEditor QS The software is operated using a PC. An entry is made with the left mouse button if a PC is used. HOME SCREEN When starting the software, the Home screen illustrated below is displayed. EPT072000 Issue 2 January 2023...
  • Page 31 Item Name Description Laser Enable/Disable Enable or Disable the laser. Status Bar Displays the coder and alert status. If more than one alert is present, the highest priority alert is displayed. Select the status bar to view and acknowledge alerts. •...

  • Page 32: Installation

    Lock screen. • Quit LMEditor QS INSTALLATION The installation of the laser coding system may only be performed by technicians trained according to Domino standards. See the U510 Product Manual on more details about installation. EPT072000 Issue 2 January 2023...

  • Page 33: Initial Operation

    INITIAL OPERATION WARNING: Laser Radiation. Risk of Injury. Initial operation of the laser coder must only be performed by a competent engineer. CAUTION: Sensitive equipment. Risk of damage to Laser Coder. Do not connect or disconnect electrical connections when the Laser Coder is switched on.
  • Page 34 TURN ON CAUTION: Sensitive equipment. Risk of damage to Laser Coder. Remove the protection cap from the output lens before operating the Laser Coder. • Remove the protection cap from the laser output lens. • At the rear panel, turn on the laser coder by turning the On/Off key switch clockwise. •...

  • Page 35: Maintenance

    The maintenance procedures are described in the Product Manual. Download the Product Manual from website below: https://mydomino.domino-printing.com/resources/U510-manual Regularly remove debris from the installation. Follow all procedures of the on site training. See the fume extraction for more details on removing debris.
  • Page 36 The lens must be checked monthly for dust, and if necessary be cleaned with (absolutely clean) compressed air from a can. For all other dirt, the lens must be cleaned with 99,9% Isopropyl Alcohol and the Domino lens cleaning kit. The kit consists of two parts (both are needed): •...
  • Page 37 EPT033842 EPT033843 EPT072000 Issue 2 January 2023...
  • Page 38 Domino U-Series User Guide Domino Printing Sciences plc has a policy of continuous product improvement, the Company therefore reserves the right to modify the specification contained within this document without notice. © Domino Printing Sciences plc 2023. All rights reserved.

This manual is also suitable for:

U510 standard
