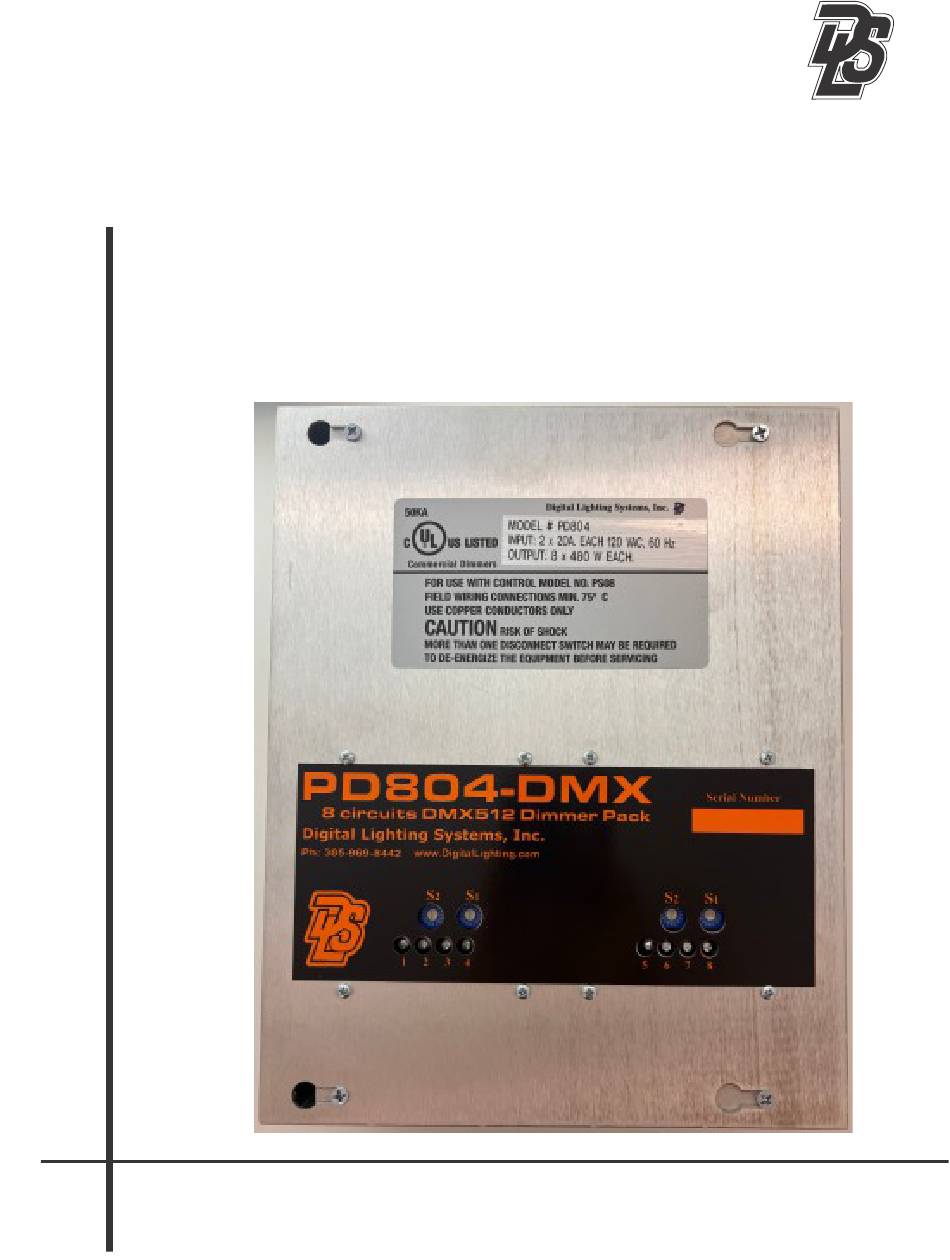

- Page 1 Digital Lighting Systems, Inc. PD804-DMX 8 dimmers x 4 A. DMX512 Dimmer Pack (includes information for PD804-DMX-S) USER'S MANUAL PD804-DMX 01/2025...
- Page 2 The LDM is equivalent to eight solid-state relays (SSR's) assembled on a single circuit board. Power is fed to the PD804-DMX from two 20 Amp. breakers on the same electrical phase. Each breaker feeds four relays and each relay is rated for a maximum output current of 4 amperes.
-
Page 3: Pin Function
12302 SW 128 Ct, STE 105 Miami, Fl. 33186 Tel: 305-969-8442 Tel: 305-969-8675 12302 SW 128 Ct, STE 105 Miami, Fl. 33186 Tel: 305-969-8442 Tel: 305-969-8675 PD804-DMX Copyright 2003 Digital Lighting Systems, All rights Reserved Copyright 2003 Digital Lighting Systems, All rights Reserved Printed in U.S.A. - Page 4 Refer to the drawings above for the proper dimensions. Conduit shall be pulled to the top of the dimmer packs. NOTE The PD804-DMX may create a slight buzzing noise and should not be located where this is objectionable. 12302 SW 128 Ct, STE 105 Miami, Fl. 33186 Tel: 305-969-8442 Tel: 305-969-8675 PD804-DMX Copyright ...
- Page 5 0 All wiring between the DMX control panel and PD804-DMX dimmers is CAT5 or CAT6 cable. 0 PD804-DMX dimmer packs may be fed by one or two 20 A (maximum) breakers on same phase and may have up to eight separately dimmed loads.
- Page 6 0 All wiring between the DMX control panel and PD804-DMX dimmers is CAT5 or CAT6 cable. 0 PD804-DMX dimmer packs may be fed by one or two 20 A (maximum) breakers on same phase and may have up to eight separately dimmed loads.
-
Page 7: General Wiring Instructions
Class 2) and may be run with one shielded twisted pair #18 A WG wire. Standard Industry DMX-512 compatible cables may be used. 0 PD804-DMX dimmer packs may be fed by one or two 20 A (maximum) br anch circuits and may have up to eight separately dimmed loads. - Page 8 Max. Load per circuit : 4 Amperes (96W at 24 VAC). NOTES 1 With PD804-DMX-24 you may use a single 24 VAC-800 VA or better transformer or two separate 24 VAC-400 VA or better transformers. 2 With PD804-DMX-12 you may use a single 12 VAC-400 VA or better transformer or two separate 12 VAC-200 VA or better transformers.
-
Page 9: Dmx Address Setting
2 for selectors location). The PD804-DMX is shipped from the factory with jumper S3 installed allowing a DMX address range between 1& 256 to be selected by S1 & S2 (See Table 4). For higher addresses ( 257-509) jumper S3 must be removed (See Table 5). - Page 10 S2 S1 Addr. S2 S1 Addr. S2 S1 Table 4 - PD804-DMX Decimal to Hexadecimal Address Chart. with JUMPER 3 INSTALLED Address Selection Chart Using S2-S1 12302 SW 128 Ct, STE 105 Miami, Fl. 33186 Tel: 305-969-8442 Tel: 305-969-8675 PD804-DMX Copyright ...
- Page 11 S2 S1 Addr. S2 S1 Addr. S2 S1 Table 5 - PD804-DMX Decimal to Hexadecimal Address Chart. with JUMPER 3 REMOVED Address Selection Chart Using S2-S1 12302 SW 128 Ct, STE 105 Miami, Fl. 33186 Tel: 305-969-8442 Tel: 305-969-8675 PD804-DMX Copyright ...
-
Page 12: Limited Warranty
LIMITED WARRANTY Digital Lighting Systems, warrants to the purchaser that its products Upon request, replacement unit(s) will be shipped as soon as available. Unless immediate shipment of replacement have been carefully manufactured and inspected and are warranted to merchandise is requested, Digital Lighting Systems will not ship be free from defects of workmanship and materials when used as intended.
