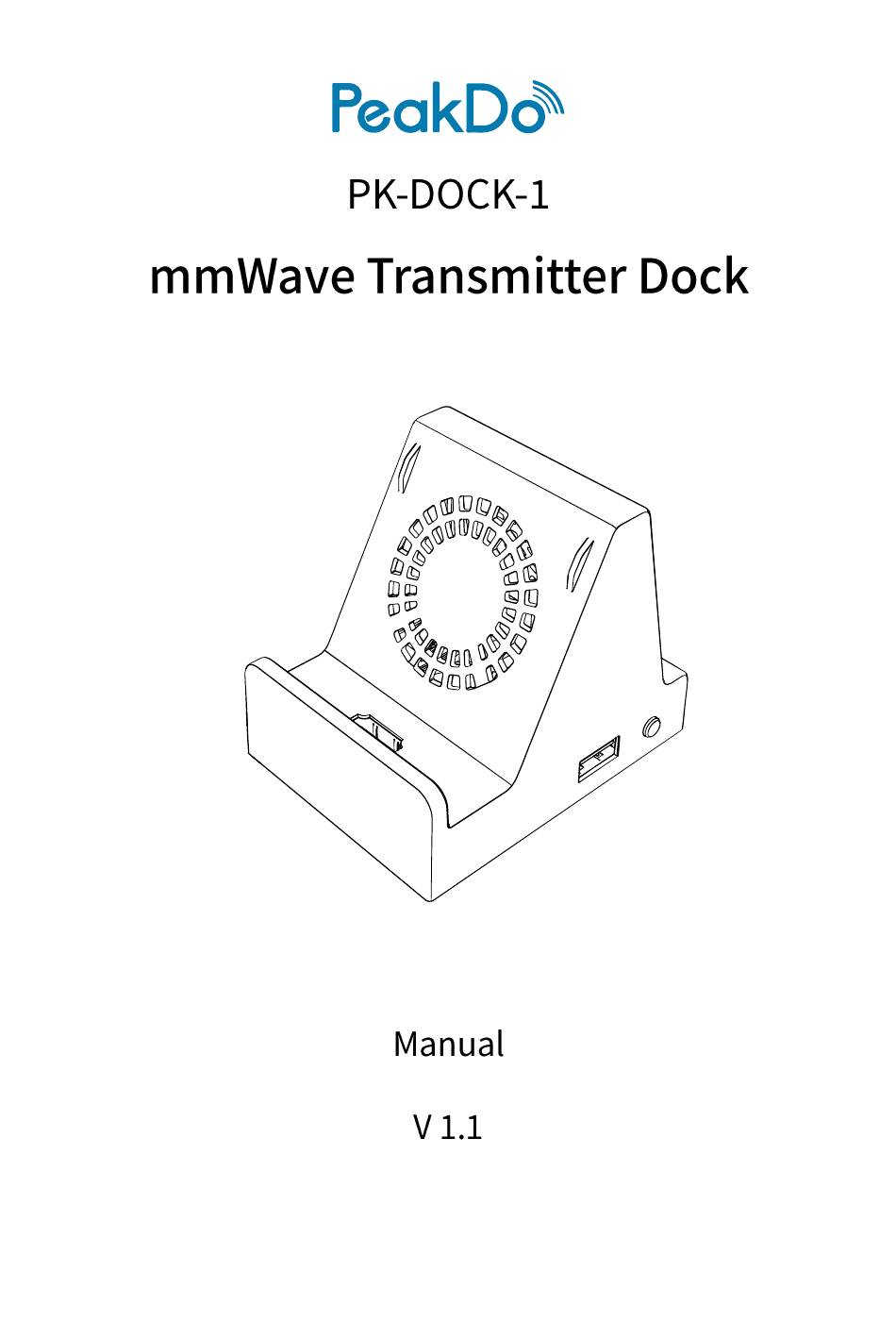

Summary of Contents for PeakDo PK-DOCK-1
- Page 2 Revisions: Version Date Revision 2024.04.28 Initial release 2024.05.15 + Added: Support PeakDo Handheld cooling + Added: Precaution for new version transmitter to support Remote Touch Control...
- Page 3 HDMI input ..........................6 Type-C DP input ........................7 Install a mmWave transmitter ....................7 (Optional) Mount on a tripod ....................8 (Optional) Cooler/Holder for PeakDo Handheld ..............8 USB hub ............................8 Instructions for use ..........................9 Power on/off ..........................9 Remote wake-up the dock and computer ................9 Condition of computer remote wake-up ...............9...
- Page 4 Intelligent hibernation. The dock will automatically sleep after the mmWave ⚫ transmitter is not working for a period of time; Work with the PeakDo handheld (latest version only) to automatically wake up the ⚫ dock when handheld is powered on;...
- Page 5 This package contains: mmWave transmitter dock (1 pc). ⚫ This product does not include cables and mmWave transmitter. Back view Bottom view Left view Right view 1 USB 3.1 Gen 1 2 HDMI input 3 5 USB-A 4 HDMI output 6 Power Button/LED 7 Air inlet 8 1/4 screw hole...
- Page 6 Please prepare 1 HDMI cable and 1 USB cable (see the section " "). The HDMI cable is used to transmit the video signal, the USB cable is used to power the dock and mmWave transmitter, also used for the PeakDo handheld’s remote touch control.
- Page 7 "Technical Parameters") for video transmission, remote touch control support of PeakDo handheld, and power the dock itself and mmWave transmitter. Connect the USB cable to the USB Type-C port on the back of the dock, and connect the other end to the Type-C DP output port of a video source (such as a game console, computer, set-top box, etc.).
- Page 8 When in use, adjust the gimbal as needed to get the best connection effect. In order to cool and/or hold PeakDo handheld, place it directly on the dock. This product provides USB hub function (Type-A ports on both sides), user can use it...
- Page 9 Press and hold the power button for 2 seconds when the power is off, and the LED indicator of the dock will light up and the color will be red, or b) Turn on a PeakDo handheld (that supports remote wake-up) will automatically wake up the dock nearby...
- Page 10 Press and hold the power button of the dock for 2 seconds to turn off the dock; Power on the PeakDo handheld (press and hold the handheld power button). After the handheld is started (the startup time is about 5~10 seconds), the dock will be automatically woken up (the power light of the dock will turn on, and the fan will start working);...
- Page 11 Q-06: The dock fan is still spinning after PeakDo handheld powered off A: After PeakDo handheld power off, the dock will continue to work for a while (see `Auto- sleep Duration` in "Technical...
- Page 12 popup notification of controller connected A: Refer to Q-08 and note that when using the new version of the mmWave transmitter, do not connect the USB cable from the power supply port of the transmitter to the USB-A port of the base. Q-10: How to distinguish between the old and new versions of mmWave transmitters? A: The shell of the new version transmitter has heat sink slots;...
- Page 13 Hazardous substances Polybromin Polybro cadmiu Hexavalent ated Part name lead mercur minated chromium diphenyl (Pb) biphenyls (Cd) Cr(VI) ethers (PBB) (PBDE) Transmitte × ○ ○ ○ ○ ○ receiver × ○ ○ ○ ○ ○ Cable × ○ ○ ○ ○...
- Page 14 PeakDo guarantees that all hardware products and accessories are covered by a one- year warranty from the date of purchase, and can only be enjoyed by purchased from the official PeakDo store, official website or authorized reseller. Equipment failure caused by unauthorized private disassembly of the device is not covered by the warranty.
