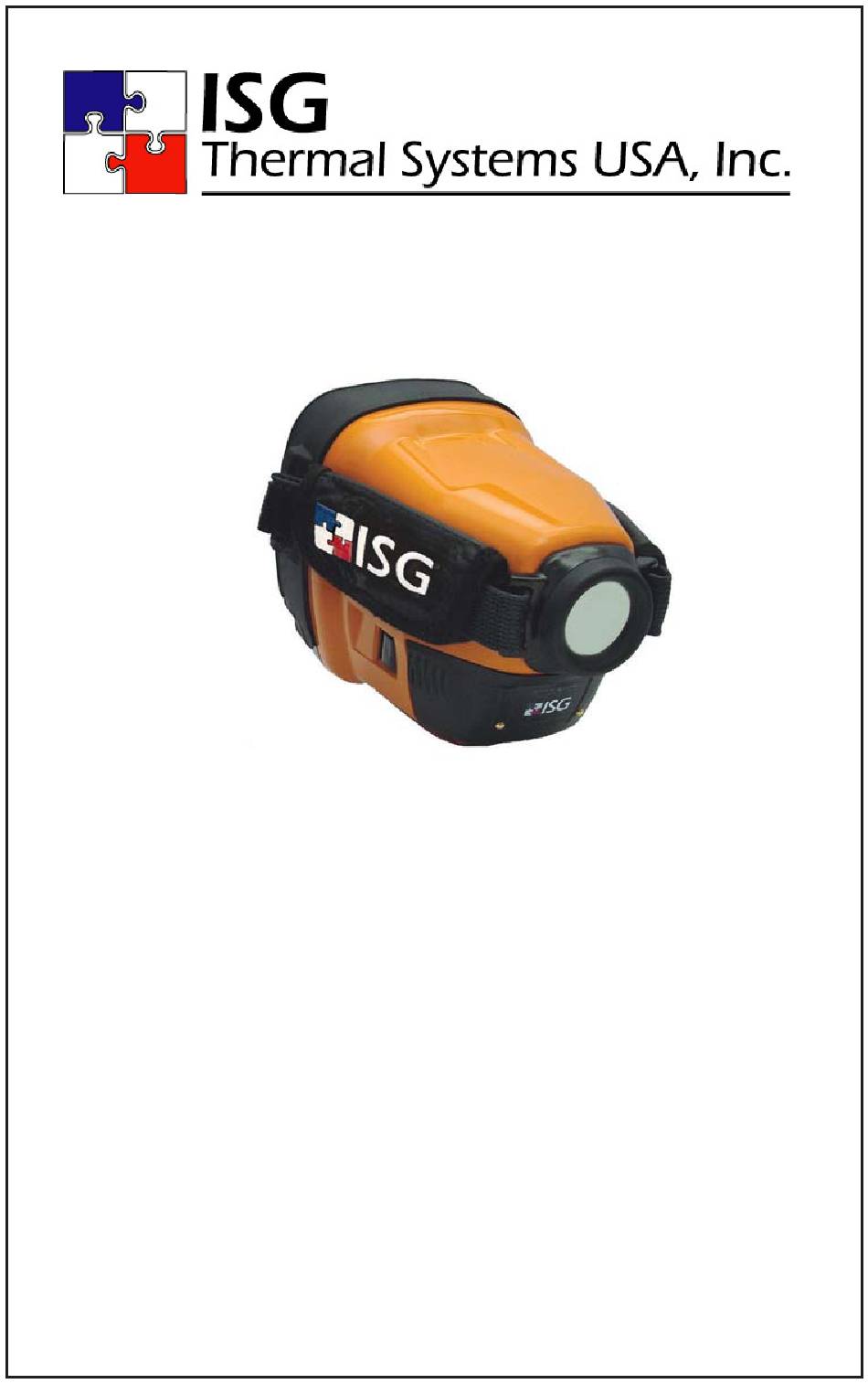

OPERATING MANUAL

Table of Contents

Need help?

Do you have a question about the K1000 ELITE and is the answer not in the manual?

Questions and answers

Summary of Contents for ISG K1000 ELITE

Page 2: Table Of Contents
Maintenance and/or repairs beyond those described herein shall only be performed by an authorized ISG Service Center. Failure to observe this information could result in death or serious injury.
Page 3: Company Background
K1000 ELITE Operating Manual COMPANY BACKGROUND Your imager was designed and manufactured by ISG, the world’s leading firefighting thermal imaging supplier. ISG system design engineers are specialists in the complex firefighting IR application and custom design the driving electronics and sensor support systems specific to the firefighting application.
Page 4 Users should be conscious of the battery life. Only enter a hazardous environment when a full battery charge is indicated on the battery charge indicator. The K1000 ELITE is not rated as "Intrinsically Safe". Do not use the system in environments or atmospheres where static or a spark will cause explosion.
Page 5 12. The service life of the K1000 ELITE depends in part on how it is used and the environmental conditions in which it is used. Under heavy usage, or under ex- treme environmental conditions, the service life of the equipment may vary.
Page 6: Specifications
Yes, Camera will power up below 32 Cold Climate Compensation: Not Required Operating Temperature: F to ~840 F (- 15 C to ~450 Water Resistance: IP 67, 3' 3" (1.0m) depth Contaminant Resistant: Drop: 6 feet Copyright 2008 ISG Thermal Systems USA, Inc.
Page 7: System Components
K1000 ELITE Operating Manual SYSTEM COMPONENTS Your K1000 ELITE comes complete with the following: • K1000 ELITE Thermal Imager • 2 SuperCell Batteries • Battery Conditioning Charger • Operating Manual on CD • Shipping Container OPTIONAL ACCESSORIES The following (optional) accessories are available.
Page 8: Charging The Batteries
ISG batteries and chargers have a 90 day warranty. In the event that the batteries are not charging, call ISG immediately.
Page 9: Fast Attack Truck Charger
This strap will also keep the battery from moving while the vehicle is in motion, thereby causing the charger to constantly re-initialize. Copyright 2008 ISG Thermal Systems USA, Inc.
Page 10: Operator Controls
Immediately release the POWER button. WARNING AND INFORMATION SYMBOLOGY Your K1000 ELITE is fitted with a sophisticated information and warning system. 7.1. Battery Charge State The Charge State of the battery is indicated by the ten moving bars located on the lower left hand side of the Display as illustrated.
Page 11: Digital Direct Temperature (Ddt)
Top of RED is approx. 450°F The bottom of RED is approx.150°F THOUSAND PLUS MODE Top of RED is approx. 2,000°F Beginning of RED is approx. 1,000°F Beginning of YELLOW is approx. 500°F Electronic Integration icon will appear. Copyright 2008 ISG Thermal Systems USA, Inc.
Page 12: Emissivity And Its Effects On Ddt
The better the characteristic to absorb heat (the higher the emissive value), generally the more accurate the temperature reading. The DDT installed in the K1000 ELITE assumes an emissivity of 0.95. That is, for objects with emissivity of 0.95, the DDT will return temperature readings accurate to within 10% of the actual temperature.
Page 13 DDT is measuring the temperature of an object and NOT the air temperature. Failure to observe this warning could result in death or serious injury. Copyright 2008 ISG Thermal Systems USA, Inc.
Page 14: Fitting Accessories
12. DIGITAL FRAME CAPTURE (OPTIONAL) ISG’s Digital Frame Capture option allows firefighters to capture up to 500 BMP images in the camera’s memory. To save an image to memory, press and release the YELLOW button. The screen will hold the image about 1 to 2 seconds.
Page 15: Wireless Video Transmission
6. Power up the thermal imager and activate the video transmitter. Select the proper channel on the receiver and video should be displayed. Your K1000 ELITE Thermal Imager may incorporate the optional features at time of order. These options may also be purchased and installed at any time after delivery.
Page 16: Cleaning And Maintenance
11. Inspect the mechanical hardware to make sure no screws have loosened or have come loose. 12. Store your ISG Thermal Imager in the optional Fast Attack or in the delivery case provided. 13. The thermal imager should be cleaned using warm soapy water and nonabrasive cleaners.
Page 17: Return Authorization (Ra)
K1000 ELITE Operating Manual 15. RETURN AUTHORIZATION (RA) Should our ISG Thermal Imager or Fast Attack ever be in need of repair, the following outline will speed the process of your request. Note: Prior to returning the thermal imager, the device should be fully decontami- nated.
Page 18: Warranty Information
ISG’s obligation under this warranty is limited to the replacement or repair, at ISG’s option, of articles if returned to ISG in Georgia, or an authorized distributor, with shipping charges prepaid by the owner, and which, upon inspection by ISG, shall prove to have been defective in normal, “intended...
Page 19: Important Export Information
United States without obtaining an approved export license from the US DOC, DOD or DOS. If you wish to export these items, please notify ISG Thermal Sys- tems USA, Inc. who will assist you in obtaining the proper export documentation.
Page 20 K1000 ELITE Operating Manual NOTES Copyright 2008 ISG Thermal Systems USA, Inc.
Page 21 All Rights Reserved ISG Thermal Systems USA, Inc. 305 Petty Road Lawrenceville, GA 30043 Toll Freel: (877) 733-3473 Fax: (678) 442-1295 Web: www.isgfire.com Email: info@isgfire.com Issue E 2008...
