barebones EDISON User Manual

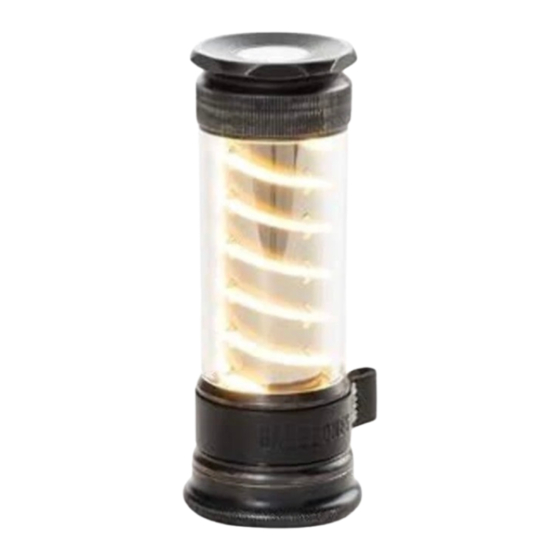

EDISON LIGHT STICK
POWER
Install battery before use.
1. Turn flashlight lens endcap counterclockwise to open battery slot.
2. Insert LI-Ion battery into battery slot with + terminal end first.
3. Re-attach flashlights lens endcap by turning clockwise. Do not cross threads. Do not overtighten.
4. For optimal performance, charge fully before first use.
LIGHT SETTING AND BRIGHTNESS
Rotate light selector knob in either direction to cycle through 8 settings.
BATTERY LEVEL INDICATOR (BLI)
Battery level Indicator (BLI) is located inside the lens, under the light selector knob.

When powering off, BLI light will quickly flash indicating remaining battery power.

When rotating light selecter knob, if Light Stick doesn't turn on or BLI light flashes red then off, battery
power is too low and must be recharged.
Operating instructions: see charts.
Bonus Candle Modus: Chart shows order when turned clockwise. Order reverses when turned
counterclockwise.
CHARGING INSTRUCTIONS
With Li-Ion battery installed, plug USB-C charging cable into Light Stick's USB-C port and other end into external power source to begin charging. BLI
light will fade on and off at various speeds indicating that power is being distributed to battery
POWER OUTPUT
Edison Light Stick is capable of power output via USB-C Port.

Plug one end of the USB-C cable into Edison Light Stick and other end into external device.

Edison Light Stick will automatically distribute power when external device is plugged in.
TECHNICAL SPECIFICATIONS
Light Stick
LED 2W
Lumen Low: 9-12/High: 90-120
Colour Temperature 2100-2400 Kelvin
Run time Low:35-45hrs/High: 3,5-4,5hrs
Battery Li-Ion 18650 / 2200 mAh 3,7V 8,14 Wh
Chargetime
Input / Output
USE AND MAINTENANCE
Your Light Stick is weatherproof under normal conditions of use. Dry/wipe the Light Stick
with a soft microfiber cloth. Do not disassemble the Light Stick. Doing so may damage the
Light Stick and void the guarantee. Use only a Barebones battery LIV-903.
COMPONENTS
A Light Selector Knob
B Leather Strap & Hang Loop G
C Battery Level Indicator
D LED Rope
E USB-C Port
USERS GUIDE
Flashlight
1,2W
Low: 11-15/High: 115-145
2800-3300 Kelvin
Low: 160-80 hrs/High: 6-8 hrs
4-5hrs
5V / 1A
F Lens
Flashlight Lens Endcap
H Li-Ion Battery 18650 (Barebones specific)
I USB-C to USB-C Cable (included)
J USB-C to USB-A Adapter (included)
Imported and distributed in Europe by:
Energy Distribution sa | rue de France 7 | 4280 Hannut | Belgium
© Barebones 2022 Barebones is a trademark of Barebones Living LLC
Click Setting
1 Light Stick / Low
2 Light Stick / Medium
3 Light Stick / High
4 Light Stick / Max
Light Stick &
5 Flashlight / Max
6 Flashlight / High
7 Flashlight / Low
8 Power off
Flashes Power Level
75-100%
50-74%
25-49%
less than 24%
Fade Speed Power level
Slow 0-49%
Medium 50-74%
Fast 75-99%
Solid 100%
