AMG Systems AMG810 Installation Manual

INTERFACE CONNECTIONS
① Connect the antenna to the SMA
connector.
② Insert the Cat5/6 cable for the
network into the RJ45 port.
③ Connect any PPS or Aux connections
to the grey 4-way screw terminal
connector.
④ Connect the USB console cable to
the USB Type C port.
RESET BUTTON
The front panel reset button can be used to perform the functions listed below.
CONNECTING TO THE NTP SERVER
Web GUI
Default IP Address:
Console CLI
USB-C Port
Username:
Password:
amg-support.com/AMG810-1F_Series
AMG Systems Ltd. 4 Pioneer Way, Castleford, WF10 5QU, UK T: +44 (0) 1767 600 777 E: technical@amgsystems.com
AMG Systems Inc. 62 Spring Hill Road, Trumbull, CT 06611, USA T: +1-855-AMGPOE1 (855-264-7631)
D35160-00
www.amgsystems.com
Pressing and holding the reset button will cause
the SYSTEM and NTP LEDs will flash rapidly to
indicate the opertion to perform.
Releasing the button initiates the action.
Hold For Release After Action
3-6 Seconds 2 Sets of Flashes Shutdown
8-11 Seconds 4 Sets of Flashes Reboot
14-17 Seconds 6 Sets of Flashes Factory Reset
18+ Seconds 1 Set of Flashes Cancel
192.168.1.101
115200,8,N,1
admin
See Product Label
To access the full software user guide for this product
please visit the product page using the QR code
above or the direct link opposite.

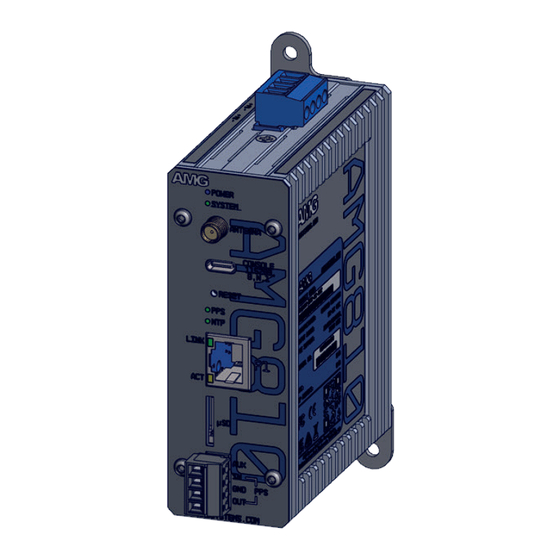

AMG810 Series AMG810 Series
Industrial NTP Server Industrial NTP Server
Installation Manual - Hardware Installation Manual - Hardware
amgsystems.com
