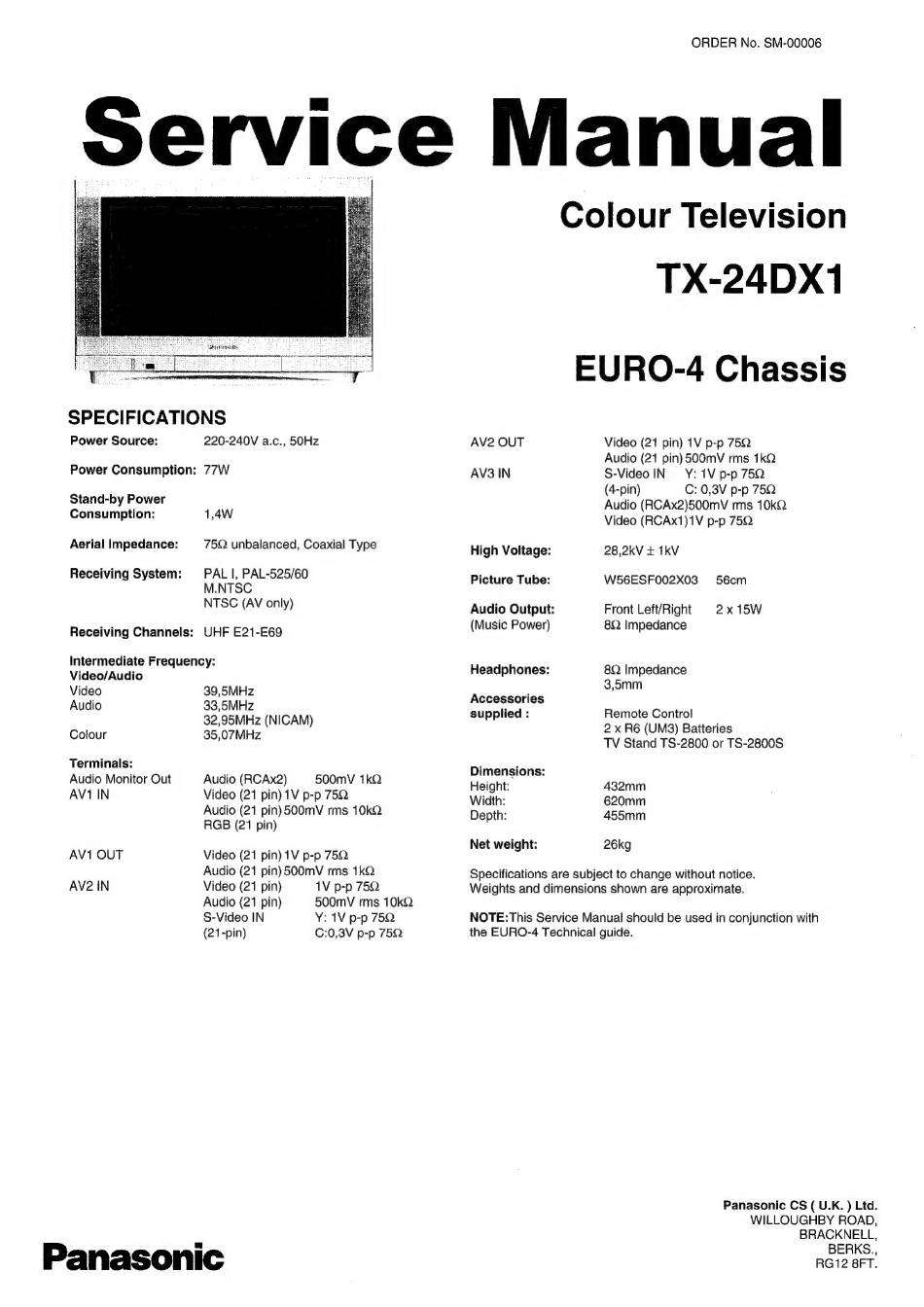

Panasonic TX-24DX1 Service Manual

ORDER No. SM-00006
service Manual
SPECIFICATIONS
Power Source:
220-240V a.c., 50Hz
Power Consumption: 77W
Stand-by Power
Consumption:
Aerial Impedance:
Receiving System:
1,4W
75Q unbalanced, Coaxial Type
PAL |, PAL-525/60
M.NTSC
NTSC (AV only)
Receiving Channels: UHF E21-E69
Intermediate Frequency:
Video/Audio
Video
Audio
Colour
Terminals:
Audio Monitor Out
AV1 IN
AV1 OUT
AV2 IN
39,5MHz
33,5MHz
32,95MHz (NIGAM)
35,07MHz
Audio (RCAx2) 500mV 1kQ
Video (21 pin) 1V p-p 75Q
Audio (21 pin) 500mV rms 10kQ
RGB (21 pin)
Video (21 pin) 1V p-p 75Q
Audio (21 pin) 500mV rms 1kQ
Video (21 pin) 1V p-p 75Q
Audio (21 pin) 500mV rms 10kQ
S-Video IN Y: 1V p-p 75Q
(21-pin) C:0,3V p-p 75Q
Panasonic
AV2 OUT
AV3 IN
High Voltage:
Picture Tube:
Audio Output:
(Music Power)
Headphones:
Accessories
supplied :
Dimensions:
Height:
Width:
Depth:
Net weight:
Colour Television
TX-24DX1
EURO-4 Chassis
Video (21 pin) 1V p-p 75Q
Audio (21 pin}500mV rms 1kQ
S-Video IN = Y: 1V p-p 75Q
(4-pin) C: 0,3V p-p 75Q
Audio (RCAx2)500mV rms 10kQ
Video (RCAx1)1V p-p 75Q
28,2kV + 1kV
W56ESF002X03 56cm
Front Left/Right 2x 15W
8Q Impedance
8Q Impedance
3,5mm
Remote Control
2 x R6 (UM3) Batteries
TV Stand TS-2800 or TS-2800S
432mm
620mm
455mm
26kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE:This Service Manual should be used in conjunction with
the EURO-4 Technical guide.
Panasonic CS ( U.K. ) Ltd.
WILLOUGHBY ROAD,
BRACKNELL,
BERKS.,
RG12 8FT.
