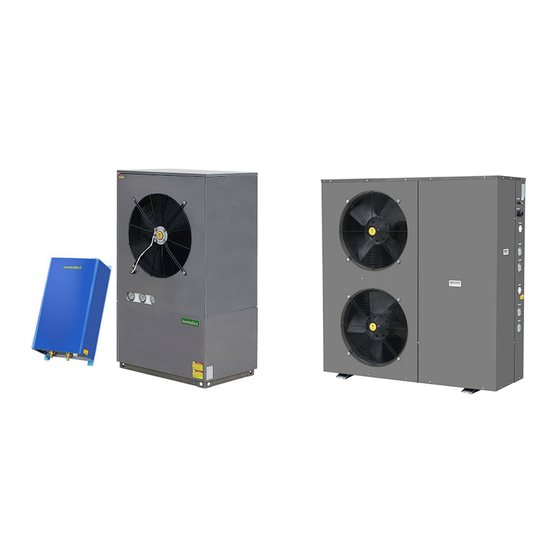

Sundez EVI SDAW-075BEVI Manual

Sundez EVI SDAW-075BEVI Manual

Low ambient air source heat pump

Advertisement

Quick Links

EVI
LOW AMBIENT
Air Source Heat Pump
Manual
Installation
Operation
Maintenance
Zhongshan Sundez Eco-energy Solution Co., Ltd.
www.sundez.cn
info@sundez.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVI SDAW-075BEVI and is the answer not in the manual?

Questions and answers

Summary of Contents for Sundez EVI SDAW-075BEVI

  • Page 1 LOW AMBIENT Air Source Heat Pump Manual Installation Operation Maintenance Zhongshan Sundez Eco-energy Solution Co., Ltd. www.sundez.cn info@sundez.cn...
  • Page 2: Table Of Contents

    INSTALLATION & OPERATION MANUAL Contents 1. Features/Benefits............1 2. Notes/Precautions............2 3. Model Number Nomenclature.........3 4. Technical Data...............4 4.1 Performance Data............4 4.2 Introduction on the System...........5 5. Dimension..............7 6. Installation..............8 6.1 Transportation and Positioning........8 6.2 Connect the Indoor and Outdoor Unit......9 6.3 Install the Water Pipeline..........12 6.4 Install Heat Consumer System........13 6.5 Electrical Connection..........14 6.6 Electrical Diagram............16...
  • Page 3: Features/Benefits

    FEATURES/BENEFITS 1. Features/Benefits Wide Application Ranges Designed for offering central hot water for bigger houses, as well as commercial buildings such as hotels, offices, schools, hospitals, apartments etc. The hot water outlet range is wide from 20Deg C to 55Deg C, meeting demands for most hot water project. The performance is at wide ambient temperature range from -25~40Deg C.
  • Page 4: Notes/Precautions

    NOTES/PRECAUTIONS 2. Notes/Precautions ■ The installation, commissioning and maintenance of the system should only be done by qualified personnel with adequate knowledge of the relevant standards and local regulations as well as experience with similar systems. ■ Please make sure the water flow is sufficient all the time. ■...
  • Page 5: Model Number Nomenclature

    AW - 125 - B -S-EVI Enhanced Vapor Injection Power Supply Manufacturer S - 3 phase Omit - Single phase SD - Sundez Type Case Structure AW - air to water A - vertical fan discharge WW - water to water...
  • Page 6: Technical Data

    TECHNICAL DATA 4. Technical Data 4.1. Performance Data Model SDA W -075BEVI SDA W -125BSEVI SDA W -250BSEVI Heating Capacity(A7/W35) 11.8 Power Input(A7/W35) Heating Capacity(A7/W45) 11.7 16.5 Power Input(A7/W45) 4.15 Heating Capacity(-15/W35) Power Input(-15/W35) 4.38 8.76 Heating Capacity(-15/W45) 11.5 Power Input(-15/W45) 4.79 9.58 Power Supply...
  • Page 7 INTRODUCTION ON THE SYSTEM 4.2 Introduction on the System 4.2.1 System Structure Diagram Condenser Sight glass Dry filter Receiver Solenoid Valve Compressor Evaporator Installation Example for Reference Indoor Unit Heat Pump Outdoor Unit Refrigerant Pipes...
  • Page 8: Introduction On The System

    INTRODUCTION ON THE SYSTEM 4.2.2 Components Components Photo Features/Advantages The EVI scroll compressor with R407C system, favoring high heat capacity and Scroll stable operation with low noise in Compressor particularly low ambient temperature. The reliable 4 way valve can avoid gas 4-way-valve mixing and unstable defrosting.
  • Page 9: Dimension

    DIMENSION 5 Dimension Model: SDAW-075BEVI 512mm Pressure gauge-H Pressure gauge-M Pressure gauge-L Wire controller hole Power cable hole Refrigerant in Aviation plug Refrigerant out Outdoor unit (front view) Outdoor unit (side view) 1164mm 430mm 116 4 Aviation Water inlet plug Water outlet Refrigerant in Refrigerant out...
  • Page 10 SDAW-250BSEVIM Front view Side view 1510mm Top view...
  • Page 11: Installation

    INSTALLATION 6 Installation 6.1. Transportation and positioning 6.1.1 Transportation (1) To protect the equipment against damage, it must be transported vertically inside its dedicated packaging. Storage and transport at temperature below -20 Deg C and in excess of +50 Deg C is not permissible. (2) The maximum acclivitous angle of heat pump must be less than 30 Deg C when moving and installation.
  • Page 12: Connect The Indoor And Outdoor Unit

    INSTALLATION Indoor unit is designed to be installed indoor on the wall, dry position. It should be considered about the length of the refrigerant copper pipes and the installation distance of the indoor and outdoor unit. Check the installation conditions: •...
  • Page 13: Leakage Check

    INSTALLATION 6.2.2 Connect the indoor and outdoor unit (1) The specification of copper pipes as follows; Copper pipe Spec. Length φ19 mm Refrigerant Inlet 5 meters φ12.7mm Refrigerant Outlet 5 meters (2) Refrigerant pipes connection The length of copper pipe between the unit and the heat pump should be less than 5 meters, and the height difference should less than 3 meters.
  • Page 14 INSTALLATION Heat Pump Outdoor Unit Indoor Unit Vacuum pump High pressure manometer Low pressure manometer Multiplex manometer Soft connection pipe Refrigerant inlet Refrigerant outlet Fig. Vacuum the refrigerant system Heat Pump Indoor Unit Outdoor Unit Refrigerant High pressure tank manometer Low pressure manometer Multiplex...
  • Page 15: Install The Water Pipeline

    INSTALLATION 6.2.5 Debug the indoor refrigerant system • When finish the connection, please release a little refrigerant from the Refrigerant outlet, or use the vacuum pump to vacuum the system, until the pressure is below 70Pa. • Once the system has been vacuumed, please open the Refrigerant inlet and the Refrigerant outlet until the pressure is balanced, and then check the joints with suds.
  • Page 16: Install Heat Consumer System

    INSTALLATION • Keep the water pipes straight and the pipeline allocation reasonable. Reduce pipe turnings as many as possible to reduce water resistance. • Prevent the pipeline and the connectors from water leakage. • The water pressure bearing capability of each part of the piping system should be tested after installation is finished.
  • Page 17: Oxygen Diffusion

    INSTALLATION 6.4.4 Oxygen diffusion Steel components, such as radiator ans pipes, can corrode if plastic under floor heating system pipes, which are permeable to oxygen, are used. The product of corrosion, for example, rusty sludge, can settle inside the heat exchanger and can result in output loss through a reduction of cross-section or in a heat pump shutdown triggered by the high pressure limiter.
  • Page 18 INSTALLATION Electric distribution box of SDAW-075BEVI (Part 2) 8. Comp. capacitor 9. start capacitor 10. Breaker 11. Power source terminal (220~240V/1Ph/50Hz) 12. tank sensor 13. Wire controller cable Electric distribution box of SDAW-075BEVI (Part 3) 1. breaker 2. Comp. AC contactor 3.
  • Page 19: Electrical Diagram

    INSTALLATION 6.6 Electric Diagram Model: SDAW-075BEVI Tank Temp. HX inlet Temp. Coil Temp. Exhaust Temp. Ambient Temp. HX outlet Temp. Electricl heater...
  • Page 20 INSTALLATION Model: SDAW-125BSEVI Tank Temp. HX inlet Temp. Coil Temp. Exhaust Temp. Ambient Temp. HX outlet Temp. hearing cable...
  • Page 21 INSTALLATION Model: SDAW-250BSEVI Electricl heater...
  • Page 22: Controller

    CONTROLLER C O N T R O L L E R 7 Controller 7.1 User Interface Logo readout LCD screen & Touchable key-board (Set in factory) Water level Unlock, power on/off Operating Adding function Heating mode Minus function, forced defrosting/coolin Water temp., error code, data readout...
  • Page 23 CONTROLLER C O N T R O L L E R 7.2.2 Power On/Off: Touch the “ON/OFF” key by finger to power on/off the machine. 7.2.3 Temperature setting of water tank: Touch the “Up”, then the symbol “temp. setting” is flickering and showing the temp. of the water tank.
  • Page 24 CONTROLLER C O N T R O L L E R Touch the “Setting” Key, checking code A1~A9; Er are available. For single system unit, touch “Setting” key twice to log out of the checking mode; for double system unit, touch “Setting” key twice, checking code b1~b9 are available, touch again to log out of the checking mode.
  • Page 25 CONTROLLER Timer mode. Set time is flashing. (Adjusted by “Up” and “Down” keys) Timer setting. Time mode for power on/off: 01—power on/off time setting 02—power on/off time setting Time mode for hot water supply: 03—water pump on/off time setting 04—water pump on/off time setting Timed Power On/Off set.
  • Page 26 CONTROLLER C O N T R O L L E R 7.2.6 Clock Time Setting: Under the condition of no time setting mode, keep touching “Timer” key for more than 8 seconds till “DO---“ sound is heard, then clock time setting comes.
  • Page 27 CONTROLLER Time-limited Code Setting: C1: When in time-limited code setting mode, C1 can be set. C2: C2 is set by touching “Setting” key again… Code Setting Notes: 1) The code is made of 5 groups of numbers: C1, C2, C3, C4, C5, among which there are 0~99 adjustable for C1, C2, C3, and C4;...
  • Page 28: Maintenance And Trouble Shooting

    MAINTENANCE 8. Maintenance and Trouble Shooting 8.1 Maintenance • The heat pump water heater is an advanced equipment with high automization. The reliability and operation life of the heat pump can be guaranteed and even increased by regular inspection and effective maintenance. •...
  • Page 29: Trouble Shooting

    TROUBLE SHOOTING 8.2 Trouble Shooting Users should contact with the professional maintenance staff when there is a problem with the heat pump. The following table may be helpful for maintenance technicians for troubleshooting. Disposing Methods Malfunction Possible Problems Heat pump unit is out 1.
  • Page 30 TROUBLE SHOOTING Compressor is out 1. Power source fault. 1. Check the power source and of operation 2. Compressor AC conttactor change faulty components. 2. Change the contractor. damaged. 3. Check every wire connection of 3. Loosen wire connection. compressor. 4.
  • Page 31: Error Codes

    ERROR CODES 8.3 Error Codes Error Code Error Description Error Error Description Wrong phase Coil temp. sensor error Default phase Exhaust gas temp. sensor error Water flow switch error Ambient air temp. sensor error High pressure error Returning water temp. sensor error Low pressure error Water level switch error...
  • Page 32: Record For Maintenance & Trouble Shooting

    RECORD FOR MAINTENANCE & TROUBLE SHOOTING 9 Record for Maintenance & Trouble Shooting Maintenance Record 1. Date: Content: 2. Date: Content: 3. Date: Content: Trouble-shooting Record 1. Time: Problem: Solution: 2. Time: Problem: Solution: 3. Time: Problem: Solution:...
  • Page 33 Thank You for Choosing Zhongshan Sundez Eco-energy Solution Co., Ltd. www.sundez.cn info@sundez.cn...

This manual is also suitable for:

Evi sdaw-125bseviEvi sdaw-250bsevi
