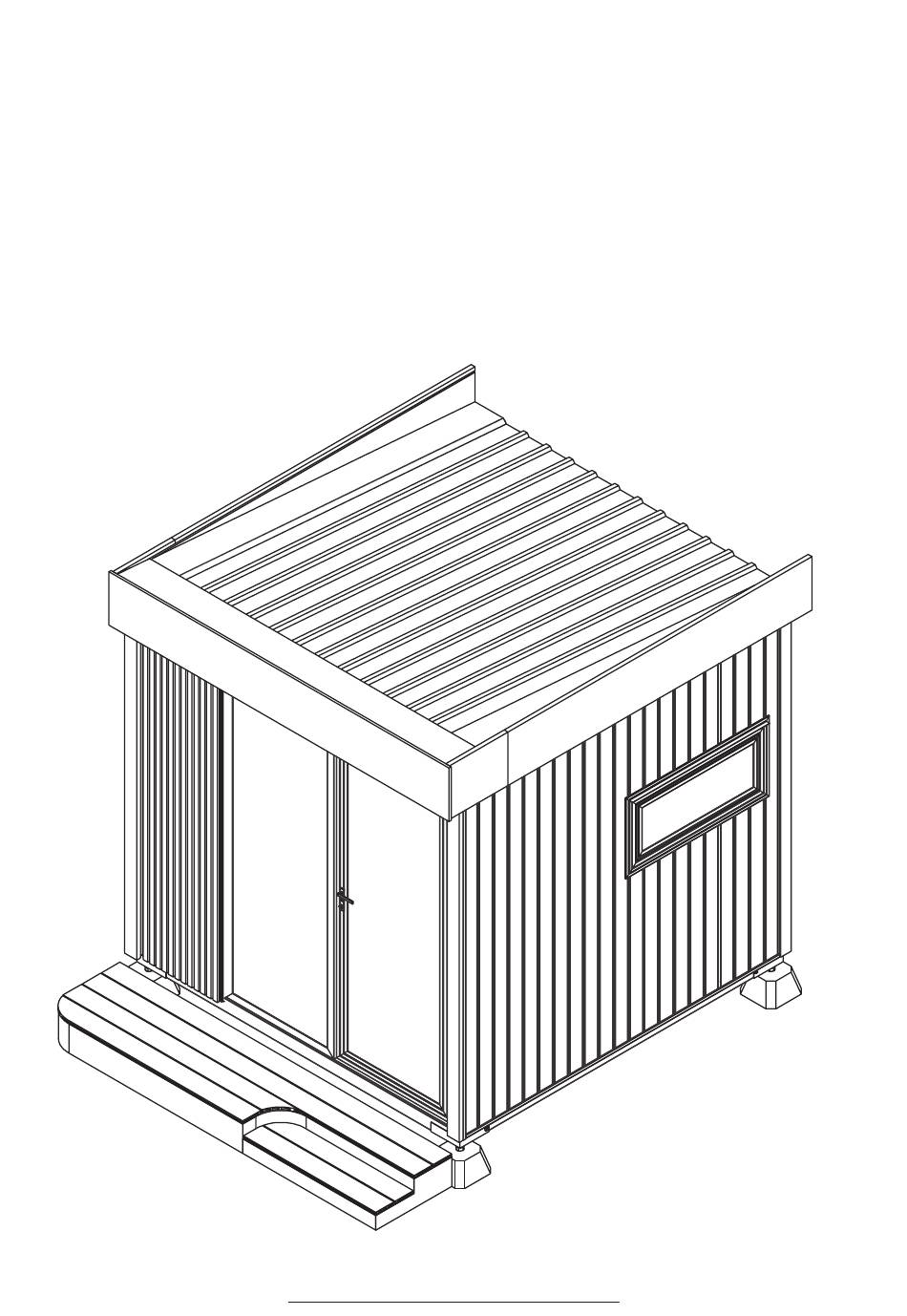

- Page 1 WorkPod mini How to build yours www.autonomous.ai/adus/workpod-mini...
-
Page 2: Checking List
Checking list Crate Items Components inside Right wall A A417-P1 Right wall B A417-P2 Back wall B A417-P3 Back wall A A417-P4 Left wall B A417-P5 Left wall A A417-P6 Floor A A417-FL-A Floor B A417-FL-B A417-A Ceiling A A417-CE-A Ceiling B A417-CE-B Power cord... -
Page 3: Side View
Preparation Pod was specifically engineered to be DIY friendly but if you’re a complete novice or feeling somewhat unsure, it can be helpful to have a spare pair of hands to help. Feel free to give us a call anytime, too. For optimal results, we recommend hiring professional help to assemble your Pod. - Page 4 Electrical devices in WorkPod mini Electrical devices in Pod: RCB (Residual Current Breaker): 1 Wall outlet: 2 Ethernet socket: 1 Double light switch: 1 Ceiling light: 1 Outdoor light: 1 Note: Maximum voltage: 110V AC (US Standard) Maximum current: 25A...
- Page 5 Connecting Pod to your power supply A 66ft power cable is provided, with 2 connectors – 1 that connects to the WorkPod mini and one that connects to your main power supply. Your power supply should be at least 20A at 110 VAC 50Hz/60Hz. If you do not have an outlet which can supply this minimum, an electrician will be able to assist you.
- Page 6 FOUNDATION & BASE FLOOR ASSEMBLY www.autonomous.ai/adus/workpod-mini...
- Page 7 FOUNDATION & BASE FLOOR ASSEMBLY STEP 1 Place the Adjustment Foundation in position and make sure the distances between them adhere to the ones in the figure below. Left Back Adjustment Foundation Right Front 11" [280 mm] Adjustment Foundation " [2454 mm] www.autonomous.ai/adus/workpod-mini...
- Page 8 Adjust the Adjustment Foundation to the lowest level. Place the Front frame, Back frame slat like the figure below. (Note: Install the pad to match the bearing on the Adjustment Foundation). Back Back frame Front frame Front Have to adjust to the lowest position Back Front www.autonomous.ai/adus/workpod-mini...
- Page 9 FOUNDATION & BASE FLOOR ASSEMBLY STEP 3 Similar, place slat Left frame, Right frame into position and connected by bolts. (note: bolt screw don't tight). Back Left frame Right frame Front Back Front Flat Washer Hexnut '' Bolt www.autonomous.ai/adus/workpod-mini...
- Page 10 FOUNDATION & BASE FLOOR ASSEMBLY STEP 4 Install Floor frame B like the figure below Back Front Floor frame Floor frame Left Back Left frame Back frame Right frame Front frame Right Front www.autonomous.ai/adus/workpod-mini...
- Page 11 FOUNDATION & BASE FLOOR ASSEMBLY STEP 5 Double check that all slat are in the correct position and orientation (this step is important). Back " [2544±1 mm] Back frame Left frame Right frame Left Right Floor fraem Front frame Front www.autonomous.ai/adus/workpod-mini...
- Page 12 Level Ruler Use a wrench to adjust the height of the concrete. Checking the size and balance of the steel frame after assembly is extremely important, it helps to avoid many problems later, remember to pay attention. www.autonomous.ai/adus/workpod-mini...
- Page 13 FOUNDATION & BASE FLOOR ASSEMBLY STEP 7 Place the Floor A in position like the figure below. Floor A Front Back Front Patch align to floor Place floor align to patch www.autonomous.ai/adus/workpod-mini...
- Page 14 FOUNDATION & BASE FLOOR ASSEMBLY STEP 8 Similar to the Floor A. Place Floor B in position and push the mount into Floor A. Floor B Floor A Front Back Front Floor B Mounting Floor B and Floor A Floor A www.autonomous.ai/adus/workpod-mini...
-
Page 15: Wall Assembly
WALL ASSEMBLY www.autonomous.ai/adus/workpod-mini... - Page 16 Place Back wall A in position. Align the locating pin with the hole available on the floor steel frame and bolt connection. Do not over tightening the bolts. Back wall A Front Hexnut is fixed on the steel frame Flat Washer Back '' Bolt Back wall A Front Back www.autonomous.ai/adus/workpod-mini...
- Page 17 Place Back wall B in position. Align the locating pin with the hole available on the floor steel frame and bolt connection. Do not over tightening the bolts. Back wall B Back wall A Front Flat Washer Back Right '' Bolt Front Connect Back wall A and Back wall B by Bolts, like the figure beside. www.autonomous.ai/adus/workpod-mini...
- Page 18 STEP 3 Install Right wall B similar with Back wall, connect Right wall B and Back wall B by bolts. Do not over tightening the bolts Right wall B Front Right Flat Washer '' Bolt Right wall B Front Right www.autonomous.ai/adus/workpod-mini...
- Page 19 Install Left wall A, Left wall B, Front wall and Right wall A into position. Connect the walls by bolts. Left wall B Left wall A Back wall A Back wall B Right wall B Front wall Front Right Right wall A Front Right www.autonomous.ai/adus/workpod-mini...
- Page 20 WALL ASSEMBLY STEP 5 Place ceiling B like the figure below Ceiling B Front Right '' Bolt Flat Washer Front Right www.autonomous.ai/adus/workpod-mini...
- Page 21 Place ceiling A like the figure below and connect all power connector. Male Jack Main line connection Ceiling B Ceiling A Female Jack Male Jack Female Jack Outdoor light connection Main line connection Front Right Ceiling B Ceiling A 3-pins connector Bolt "x3" Hex Nut Front Right www.autonomous.ai/adus/workpod-mini...
- Page 22 WALL ASSEMBLY STEP 7 Place window into position like the figure below, use Self-drilling screws to assemble Window Inside Right Back Self-drilling screw "x " Inside **Some modules has been hidden Right Back for a clear inside-view www.autonomous.ai/adus/workpod-mini...
- Page 23 WALL ASSEMBLY STEP 8 Place Glass door in to position like the figure below. Glass door Left Front Self-drilling screw "x " Glass door Self-drilling screw Left Front "x " www.autonomous.ai/adus/workpod-mini...
- Page 24 WALL ASSEMBLY STEP 9 Use Silicone to seal gaps around the Combination Door Right Front Running silicone around the combination door www.autonomous.ai/adus/workpod-mini...
- Page 25 BITUMEN & HOUSE WRAP WALL ASSEMBLY www.autonomous.ai/adus/workpod-mini...
- Page 26 BITUM & HOUSE WRAP WALL ASSEMBLY STEP 1 Use Bossil Glue to seal gaps at Bolt's Cap positions. Right Front www.autonomous.ai/adus/workpod-mini...
- Page 27 3. Use a bitumen roll to seal the seam straight and not wrinkle 4. Use a rubber hammer to tap the entire bitum line to press the surface 5. Check to see if there are any non-stick areas with your hands Bitumen roll Front Right Left Back www.autonomous.ai/adus/workpod-mini...
- Page 28 3. Installing the second course, be sure to overlap the bottom layer by a minium of 10 inch 4. Taping all seams and penetration using construction tape Wrap line Housewrap nails Front Right 4" " " [550 mm] [550mm] [100 mm] 8" " " [200 mm] [550 mm] [550 mm] Section Right www.autonomous.ai/adus/workpod-mini...
- Page 29 BITUM & HOUSE WRAP WALL ASSEMBLY STEP 4 Install HouseWrap in the Back similar with the Right. Wrap line Back Right " " " " [550 mm] [550 mm} [550 mm] [550mm] 8" [200 mm] Section Back www.autonomous.ai/adus/workpod-mini...
- Page 30 BITUM & HOUSE WRAP WALL ASSEMBLY STEP 5 Install HouseWrap in the Left similar with the Right. Left Back " " " " [550 mm] [550 mm} [550 mm] [550mm] 8" [200 mm] Section Left www.autonomous.ai/adus/workpod-mini...
- Page 31 Right Front 8" " " " " [550 mm] [550 mm] [200 mm] [550 mm] [550 mm] 4" [100 mm] The gap between modules *Layout for housewrap screws at left/right side of the pod Section Right www.autonomous.ai/adus/workpod-mini...
- Page 32 Housewrap nails Right Front 6" 12" 6" " " " " [150 mm] [492 mm] [492 mm] [300 mm] [492 mm] [492 mm] [150 mm] The gap between modules Yout for housewrap ws at roof of the pod Front www.autonomous.ai/adus/workpod-mini...
- Page 33 Right Front The gap between modules Yout for housewrap ws at roof of the pod 6" 12" 6" " " " " [150 mm] [492 mm] [492 mm] [300 mm] [492 mm] [492 mm] [150 mm] Front www.autonomous.ai/adus/workpod-mini...
- Page 34 BITUM & HOUSE WRAP WALL ASSEMBLY STEP 9 Running tape to seal all HouseWrap gap line, do this step at all sides of the pod. Tape sealing gap line Right Front www.autonomous.ai/adus/workpod-mini...
-
Page 35: Roof Assembly
ROOF ASSEMBLY www.autonomous.ai/adus/workpod-mini... - Page 36 ROOF ASSEMBLY STEP 1 Install Roof Front Roof Front Front Right Self-drilling screw "x1" Right Front www.autonomous.ai/adus/workpod-mini...
-
Page 37: Table Of Contents
ROOF ASSEMBLY STEP 2 Install Roof Left and Roof Right Roof Left Roof Right Self-drilling screw "x1" Front Hex Nut Flat washer Bolt "x " Front Right www.autonomous.ai/adus/workpod-mini... -
Page 38: Step 3
ROOF ASSEMBLY STEP 3 Install Roof Back Roof Back Self-drilling screw "x2" Front Right Front Right www.autonomous.ai/adus/workpod-mini... -
Page 39: Hex Nut
STEP 4 Install Roof Frame Roof Frame Front Right Hex Nut Flat washer Bolt "x2" Front Right www.autonomous.ai/adus/workpod-mini... -
Page 40: Self-Drilling Screw
Metal Roof A Metal Roof B Metal Roof A Section Back Self-drilling screw "x " Use self-drilling screws to install metal roof to the Roof Frame at the labeled location Note: Apply silicone glue before screwing Silicone Back Right www.autonomous.ai/adus/workpod-mini... - Page 41 ROOF ASSEMBLY STEP 6 Apply Bossil Glue to all seams beween metal roof and Roof components Bossil Glue Right Back www.autonomous.ai/adus/workpod-mini...
- Page 42 ROOF ASSEMBLY STEP 7 Install Roof flashing Apply Bossil Glue to the groove line and slide roof flashing into place Roof flashing Self-drilling screw "x " Roof flashing Metal Roof Right Back Roof Frame Roof flashing Right Back www.autonomous.ai/adus/workpod-mini...
- Page 43 ROOF ASSEMBLY STEP 8 Install Roof foam using 2 side-tape Roof foam Right Back Roof foam " [230 mm] Right Back www.autonomous.ai/adus/workpod-mini...
- Page 44 ROOF ASSEMBLY STEP 9 Install Front flashing Apply Bossil Glue to the groove line and slide Front flashing into place Front flashing Right Back Apply Bossil Glue to all seams beween Flashing and roof components Right Back www.autonomous.ai/adus/workpod-mini...
- Page 45 VINYL SIDING ASSEMBLY www.autonomous.ai/adus/workpod-mini...
- Page 46 VINYL SIDING ASSEMBLY STEP 1 Install Picomat cover into place Self-drilling screw "x2" Front Right A417-Picomat Right Front www.autonomous.ai/adus/workpod-mini...
- Page 47 VINYL SCREWING INSTRUCTIONS To ensure the long-term quality of the product. Vinyl needs appropriate space and conditions to expand in an outdoor condition properly. Non-concentric Screw The screw standard for vinyl is as followed: • Must be concentric with the vinyl hole. Non-screw •...
- Page 48 VINYL ASSEMBLING RULES To prevent vinyl siding from falling out of position when deformed by temperature, vinyl siding assembly must follow these rules: 1. Vinyl siding mounts must be securely, firmly interlocked together. Incorrect interlocking Correct interlocking 2. Vinyl siding mounts must be evenly, straight interlocked throughout their length.
- Page 49 VINYL SIDING ASSEMBLY STEP 2 Install VCORNER and VRIM 1 like the figure below VCORNER VRIM 1 VCORNER VRIM 1 Right Front Screw "x " Right Front www.autonomous.ai/adus/workpod-mini...
- Page 50 VINYL SIDING ASSEMBLY STEP 3 Install VRIM 2 and VRIM 3 VRIM 3 VRIM 2 VRIM 3 VRIM 2 Right Front VRIM 2 Screw "x " Right Front www.autonomous.ai/adus/workpod-mini...
- Page 51 VINYL SIDING ASSEMBLY STEP 4 Install Vinyl Right Cover VR7-T VR8-T VR9-T VR10-T VR12 VR11 VR9-B VR10-B VR8-B Front VR7-B Right Front Right www.autonomous.ai/adus/workpod-mini...
- Page 52 VINYL SIDING ASSEMBLY STEP 5 Install Vinyl Back Cover VB11 VB10 Right Back Back Right www.autonomous.ai/adus/workpod-mini...
- Page 53 VINYL SIDING ASSEMBLY STEP 6 Install Vinyl Left Cover VL12 VL11 VL10 Front Left Front Left www.autonomous.ai/adus/workpod-mini...
-
Page 54: Final Assembly
FINAL ASSEMBLY www.autonomous.ai/adus/workpod-mini... - Page 55 FINAL ASSEMBLY STEP 1 Place the Ventilation Cover in position like the figure below. Use Silicone to seal gap Air Conditioner Cover Left Front Left Front www.autonomous.ai/adus/workpod-mini...
- Page 56 FINAL ASSEMBLY STEP 2 Assembling the Outlet Cover in position like the figure below by screws Left Front Left Front www.autonomous.ai/adus/workpod-mini...
- Page 57 FINAL ASSEMBLY STEP 3 Plug in the Adapter and Network Cable like the figure below and you can use the pod. Left Front www.autonomous.ai/adus/workpod-mini...
- Page 58 FINAL ASSEMBLY STEP 4 Connecting Outdoor Light connector and sliding into place Left Front Outdoor light Left Front www.autonomous.ai/adus/workpod-mini...
- Page 59 FINAL ASSEMBLY STEP 5 Place Outdoor Steps in position www.autonomous.ai/adus/workpod-mini...
