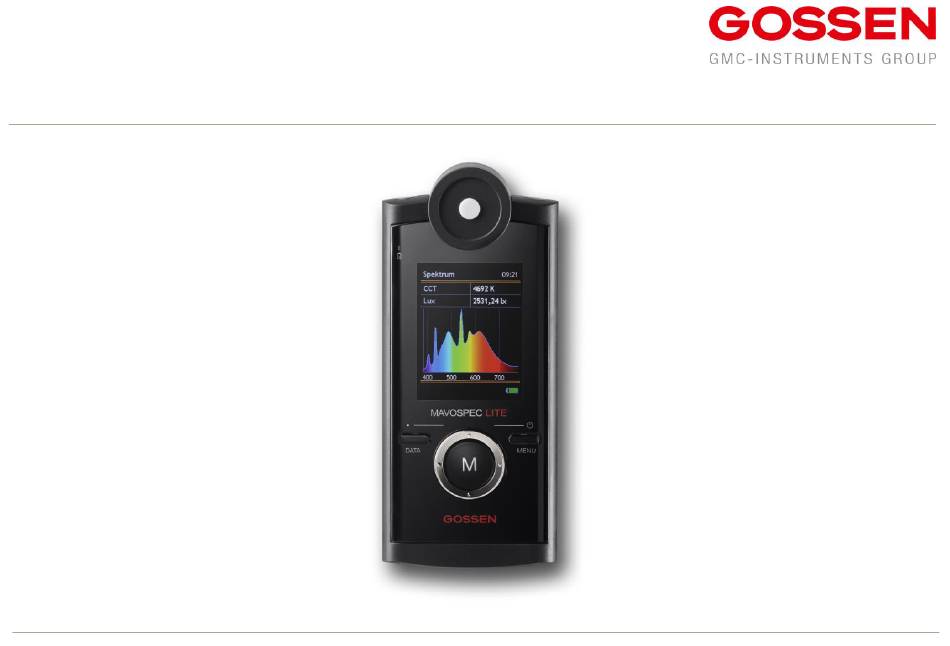

- Page 1 Operating Instructions MAVOSPEC LITE 15633 Spectrometer 1.1/05.24...
- Page 2 Thank you for selecting a GOSSEN product. You’ll enjoy easy operation, top quality and precise measurement, as well as an extensive range of applications. Please check to makes sure that all of the parts listed below have been included in the scope of delivery. If anything is missing, please contact your dealer. •...
-
Page 3: Table Of Contents
Table of Contents Page Safety Precautions, Warnings and Other Notes Initial Startup Inserting the Memory Card Inserting the Rechargeable Battery Charging the Battery Default Settings The Meter and its Controls Device Overview Controls Display Functions Switching the Meter On Measuring 3.2.1 Measured Value Windows 3.2.2... - Page 4 USB Port Firmware Update EXCEL Templates Documenting Measured Values Data Logger Practical Tips Factory Calibration Service Error Messages Technical Data...
-
Page 5: Safety Precautions, Warnings And Other Notes
Safety Precautions Please read these safety precautions carefully before using your meter. This will help you to avoid damaging the product and prevent personal injury. This symbol identifies important warnings which should be read in any case before initial startup of your GOSSEN product. Warnings In the event of malfunctioning, switch the meter off immediately. - Page 6 Do not dismantle the meter. Never touch any parts inside the housing. Injury may result. Do not repair the meter yourself. Repairs may only be conducted by appropriately trained personnel. If the meter’s housing is damaged due to dropping or other external influences, remove the rechargeable battery or power pack and contact your local dealer or GOSSEN Service for repair.
- Page 7 Other Notes • Reproduction of product documentation or duplication of any excerpts therefrom necessitates the express consent of GOSSEN Foto- und Lichtmesstechnik GmbH. This applies as well to duplication in any electronic format and translation into other languages. • GOSSEN Foto- und Lichtmesstechnik GmbH reserves the right to make changes of any type without providing advanced notice. •...
-
Page 8: Initial Startup
Initial Startup The MAVOSPEC LITE works with an interchangeable micro SD card for measured value storage and a device-specific, rechargeable lithium-ion battery. Use only the original V070A GOSSEN rechargeable battery included with the meter, or available as an optional accessory, and the USB charger. •... -
Page 9: Charging The Battery
Charging the Battery Connect the included USB cable first of all to the USB port on the meter and then to the USB socket on the power pack, and then connect the power pack to a mains outlet. The LED in the housing top indicates the charging status of the rechargeable battery. It lights up red as long as the battery is charging, and changes to green when the battery has been fully charged. -
Page 10: The Meter And Its Controls

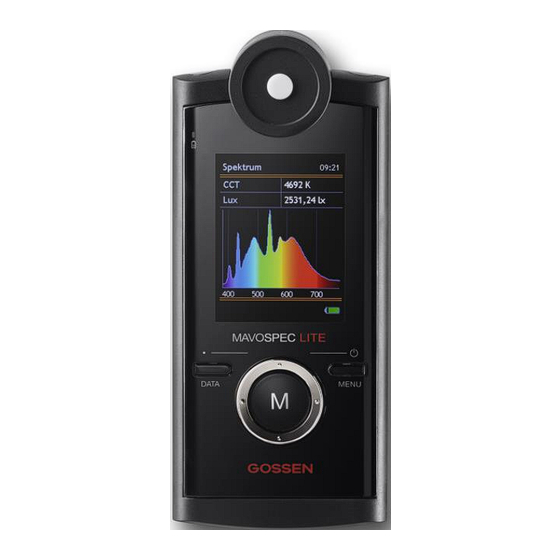

The Meter and its Controls Device Overview Cosine-Corrected Measuring Probe Charging Status LED Display Panel DATA Key MENU Key Measurement Key Ring Controller USB Port for Charging Battery or Carrying Strap Holder for Data Transmission... -
Page 11: Controls
Controls DATA Key MENU Key DATA + MENU Key Press key briefly: Open menu, Pressing and holding both of these keys Storage of the last measurement, exit menu simultaneously switches the device off. inactive in case of automatic storage Press and hold: Measurement Key Retrieve stored measured values Measurement:... -
Page 12: Display
Display Status Bar Shows the name of the active measured value window or the measured value memory’s directory, and time of day Measured Value Window Shows the active measured value window or the measured value memory’s directories and files Information Bar Shows currently running actions such as measurement, storage, loading, the file name and the battery’s charging status... -
Page 13: Functions
Functions Switching the Meter On Use the … and the initial screen measurement The meter appears with an empty key to switch the is initialized ... display field. meter on. Measuring Configurable Individual Functions in the MENU Units of measure lx / °C - fc / °F Decimal separator Comma - point... -
Page 14: Measured Value Windows
3.2.1 Measured Value Windows Spectrum Report Data CIE1931 After the measurement has been performed, results are displayed in the selected measured value window. 380 … 780nm CCT, E vis CCT, Duv, x, y Ra, R9, Balken E vis The ring controller is CCT, Duv used to switch amongst CIE 1931 x... -
Page 15: Spectrum
3.2.2 Spectrum This measured value window displays the spectral power distribution of a light source and also provides information concerning color temperature and illuminance. The window as well as the colored background for the spectral power distribution can be shown or hidden with the help of the corresponding function in the presentation menu (see section 4). E vis Illuminance (lx/fc) Correlated color temperature in Kelvin (K) -
Page 16: Cie
3.2.4 These measured value windows display the color coordinates in the respective CIE standard color system and depict chromaticity graphically in the associated standard color diagram. In addition the correlated color temperature CCT, the distance to the Planckian curve and the color coordinates are displayed. Furthermore, there is a zoom function on the Planckian curve. -
Page 17: 3.3 Measured Value Memory
3.3 Measured Value Memory The MAVOSPEC LITE has an interchangeable micro SDHC memory card in the battery compartment to which measured values can be saved either automatically or manually. Manual saving is selected as a default setting. The respective memory modes can be selected in the memory menu (see section 4.6). -
Page 18: Quick Load Function
3.3.3 Quick Load Function When the DATA key is held down, the stored measurements of the selected folder can be Quick Load Function displayed one after the other via the ring controller in the measured value window. Thus, a simple view of the stored measurements is possible... -
Page 19: Menu
MENU This chapter expands upon the above described functions and explains the great variety of options for default settings and presets offered by the MAVOSPEC LITE. Overview General Default Setting Options Information LCD Brightness (%) 100 - 90 - 80 - 70 - 60 - 50 Serial No. -
Page 20: Navigation - Setup
Navigation – Setup Press the MENU key to open the main menu. Use the ring Use the ring Use the ring controller ... controller ... controller ... to select the desired to navigate through to select a submenu. menu. the user settings. Use the ring Use the ring Use the ring... -
Page 21: Menu - General
MENU – General LCD Brightness (%) Display brightness can be adjusted to suit the respective requirements. Minimal display brightness results in low current consumption and increases availability of the meter during battery operation. • LCD Brightness (%) 100 - 90 - 80 - 70 - 60 - 50 Display off (min.) In order to further extend battery operating time, a display shutdown time can be selected. -
Page 22: Menu - Settings
MENU – Settings All settings apply to the display at the device as well as the stored measured value file. Where the decimal separator and date are concerned, country specific adaptation may be required in order to assure that the CSV file is read in correctly by the respective software program. Units Units of measure can be switched from the metric system to the imperial system. -
Page 23: Menu - Measurements
MENU – Measurement The measuring range, and thus the sensitivity of the spectrometer, are controlled by means of integration time, i.e. the time during which the sensor collects light. The brighter the light source, the shorter integration time must be, and vice versa. In this respect it must be assured that the sensor is not saturated even during the shortest integration time. -
Page 24: Menu - Memory
MENU – Memory Data storage to the micro SDHC memory card offers the following setting options. Auto. saving The measured values for the last measurement are saved either manually by briefly pressing the DATA key, or automatically after every measurement. The auto save function can be activated in this menu. •... -
Page 25: Menu - Presentation
MENU – Presentation The content and the availability of the individual measured value windows can be adapted to the user’s own specific requirements. Spectrum The following settings are available for the “Spectrum” measured value window: • Spectrum off - colored - simple Report The individual measured quantities can be shown or hidden for the “Report”... -
Page 26: Menu - Information
Various display formats can be selected for the CIE measured value window. The measured value window can be hidden, all CIE standard color systems can be shown, or just one selected CIE standard color system can be shown. • off - 1931 – 1976 MENU –... -
Page 27: Usb Port
USB Port The meter’s USB port is located on the bottom of the housing. The meter is connected to a PC via the USB interface cable, and the PC detects the integrated micro SDHC memory card as a removable data storage medium. The measurement files stored in CSV format can then be easily opened, copied, moved or deleted. -
Page 28: Excel Templates
EXCEL Templates The built-in microSDHC memory card contains the following templates for Microsoft EXCEL. The current versions are available on the MAVOSPEC LITE product page at www.gossen-photo.de and can be downloaded from there. The templates are already supplied with sample data and can also be viewed without a connected device. -
Page 29: Data Logger
Data Logger Das EXCEL template „Datenlogger Vx.xx.xlsm“ provides a data logger function. Either individual measurements or continuous measurements with adjustable measuring interval can be carried out and stored in the data worksheet. The respective spectral curve appears in the graphic display and below the positions are displayed in the CIE 1931 and CIE 1976 color space. -
Page 30: Factory Calibration
Factory Calibration The MAVOSPEC LITE with intuitive user interface is one of the most accurate and reliable spectrometers in its class, and reflects the most up-to-date technology available on the market. Like all other precision light meters, this product also requires regular maintenance, recalibration and firmware updates in order to continuously fulfil performance capabilities within the tolerances and specifications stipulated by the manufacturer. -
Page 31: Error Messages
Error Messages The error messages listed below may appear during operation and are displayed in the information bar. Error Message Situation Cause Elimination Calibration data memory illegible or Faulty calibration data Initial window faulty If this error occurs several times after a restart, please send the meter for repair. -
Page 32: Technical Data
Technical Data Sensor Technology, Measuring Uncertainty Sensor CMOS image sensor, 256 pixels Diffusor light-entry surface 7 mm diameter Distance, diffuser to surface to be measured 25 mm Error limit, cosine correction < 3% (comparable with the f2 failure of a class B device according DIN 5032-7) 380 …... - Page 33 Operation, Interfaces, Memory Display 2.1" TFT color display, 320 x 240 pixels, brightness adjustable from 50% to 100%, shutdown adjustable from 0.5 … 5 min. or off Controls 3 keys, ring controller Languages German, English Interface USB 2.0, data transmission, battery charging, open interface protocol Data storage 4 GB micro SDHC memory card, manual and automatic memory modes, CSV data format, memory occupancy per measurement: 2 kB, per thousand measurements: 2 MB...
- Page 36 GOSSEN Foto- und Lichtmesstechnik GmbH I Lina-Ammon-Str.22 I D-90471 Nuremberg I Germany Phone: +49 911 800621-0 I e-mail: info@gossen-photo.de www.gossen-photo.de I Member of GMC-INSTRUMENTS GROUP Printed in Germany - Subject to change without notice...
