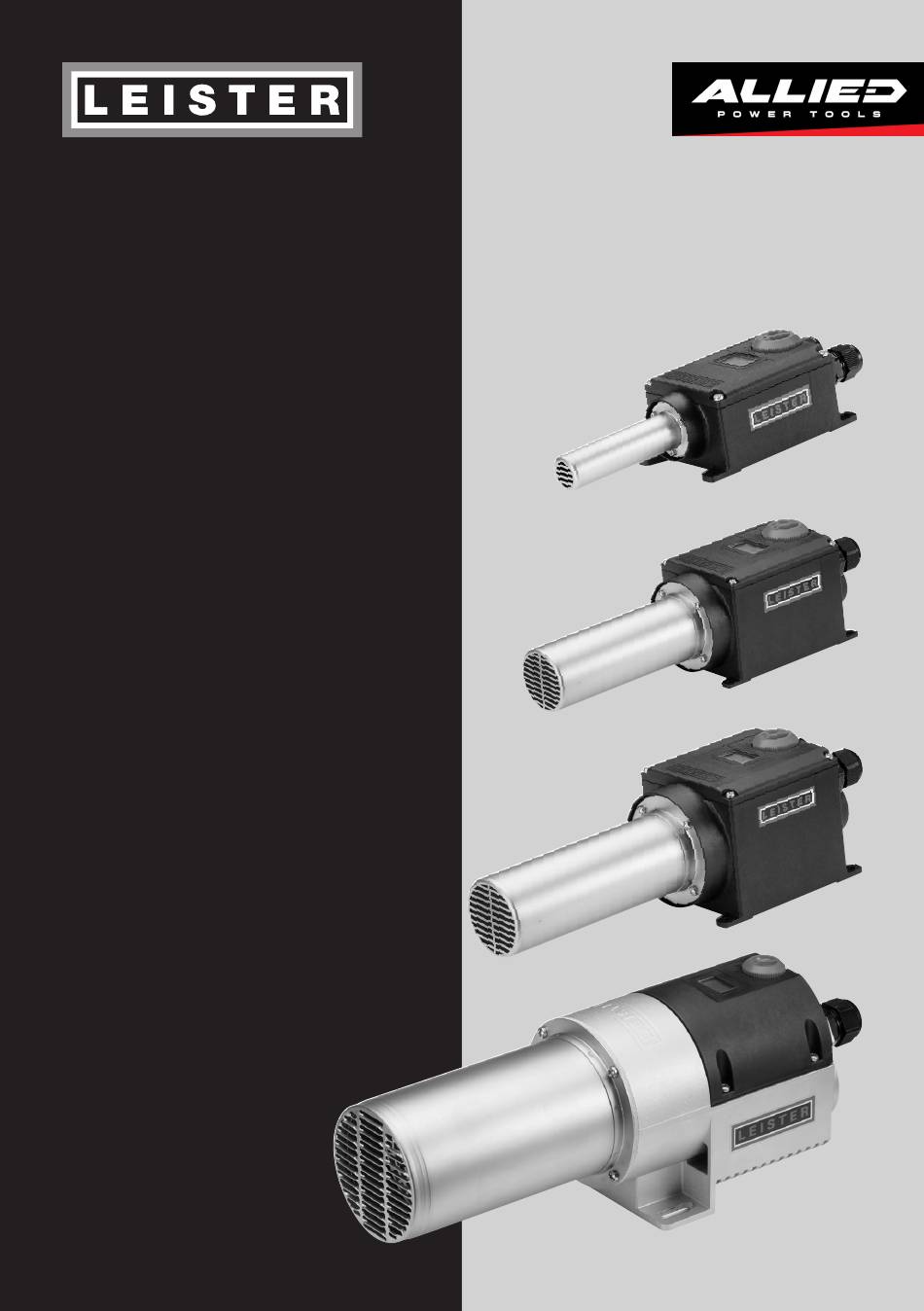

- Page 1 ® Air Heaters LHS 15 LHS 21 LHS 41 LHS 61...
-
Page 2: Air Heaters
Operating Instructions Please read operating instructions carefully before use and keep for future reference. Air heaters LHS 15; LHS 21 S; LHS 21 L; LHS 41 S; LHS 41 L; LHS 61 S; LHS 61 L CLASSIC, PREMIUM or SYSTEM Application The Leister LHS air heaters are suitable for building into machines, installations or appliances and are designed for continuous operation. - Page 3 Disposal Electrical equipment, accessories and packaging should be recycled in an environmentally friendly way. For EU countries only: Do not dispose of electrical equipment with household refuse!
-
Page 4: Technical Data
Technical data Type LHS 21 S 21 L 41 S 41 L 61 S 61 L 61 S 120 – 120 – 120 – 230 – 3 × 230 – 3 × 230 – 400 – Voltage 3 × 480 –... - Page 5 Technical data for interfaces Max. voltages AC 250 V, DC 30 V Max. currents AC 3 A, DC 3 A CLASSIC, PREMIUM, SYSTEM Max. contact resistance 100 m Ohm at DC 6 V / 1 A Relay output Type of contact SPST - NO Insulation IEC/EN 60065 AC 2000 V (50 - 60 Hz) 1 min...
-
Page 6: Device Description
Device description LHS 15, LHS 21 S, LHS 21 L, LHS 41 S, LHS 41 L: LHS 61L, LHS 61 S: CLASSIC, PREMIUM, SYSTEM CLASSIC, PREMIUM, SYSTEM CLASSIC, PREMIUM, SYSTEM PREMIUM, SYSTEM 1 Mounting straps 9 Potentiometer for temperature setting 2 Connection housing cover 3 Screws for connection housing SYSTEM... -
Page 7: Air Supply
Air supply • In order to protect the device and heating element, the specified minimum air volume must never be fallen below and the maximum temperature (hottest point measured 3 mm in front of the heating element tube) must never be exceeded (see technical data). - Page 8 Operation LHS SYSTEM • Optionally different operating modes which are set with an integrated dip switch – Steplessly adjustable heat output via red potentiometer on the device – Steplessly adjustable heat output via interface – Steplessly adjustable temperature via red potentiometer on the device –...
-
Page 9: Warranty
Error Display Description Fault correction Check environment temperature Err 01 Device temperature too high Check air intake temperature Err 02 Heating element temperature too high Check air supply volume Err 03 Temperature probe Check probe connection Err 04 Err 05 Contact your Leister Service Centres Err 06 Err 07... - Page 10 ® © Copyright by Leister Your authorised Service Centre is: Allied Power Tools 12/ 76 Rushdale St, Knoxfield VIC 3180 Australia T: + 61 3 9764 2911 E: sales@alliedpowertools.com.au W: www.alliedpowertools.com.au...
