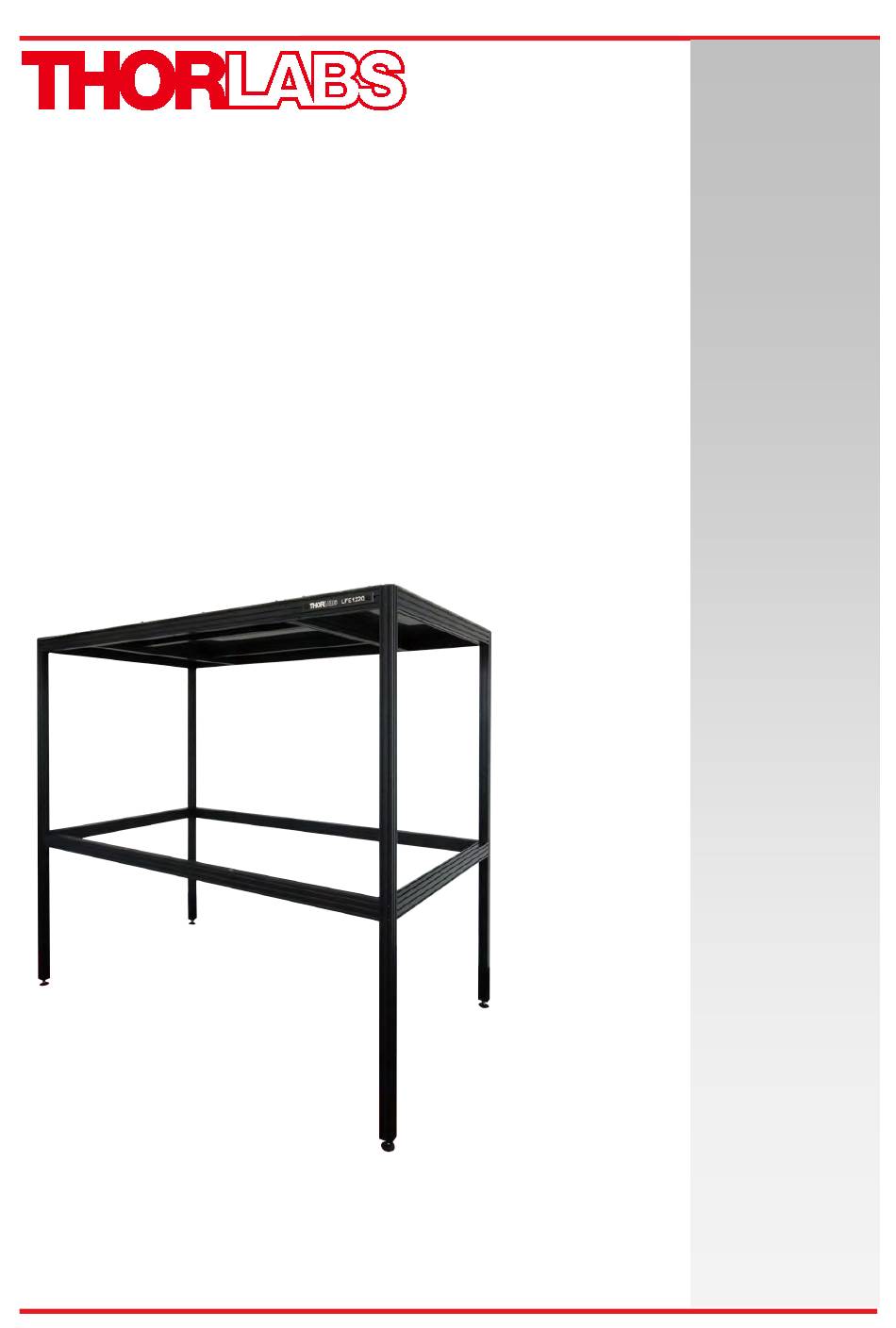

LFE1220 Optical Table Enclosure
LFE1220
Optical Table Enclosure
Installation Manual
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LFE1220 and is the answer not in the manual?

Questions and answers

Summary of Contents for THORLABS LFE1220

  • Page 1 LFE1220 Optical Table Enclosure LFE1220 Optical Table Enclosure Installation Manual Original Instructions...
  • Page 2: Table Of Contents

    LFE1220 Optical Table Enclosure Table of Contents Introduction........................1 Chapter 1 Safety ..........................2 Chapter 2 2.1. General Warnings and Cautions ................2 Installation .......................... 3 Chapter 3 3.1. Installation Requirements ..................3 3.2. Environmental Conditions ................... 3 3.3. Parts List ......................4 3.4.
  • Page 3: Chapter 1 Introduction

    Monitor (AQM) or other devices can be added according to requirements. The LFE1220 is intended to be used as a wrap around enclosure for 1.2 m x 2.0 m (4’ x 6’) Nexus optical tables, enclosing only the table surface to reduce the space required for installation.
  • Page 4: Chapter 2 Safety

    LFE1220 Optical Table Enclosure Chapter 2: Safety Chapter 2 Safety For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself.
  • Page 5: Chapter 3 Installation

    LFE1220 Optical Table Enclosure Chapter 3: Installation Chapter 3 Installation 3.1. Installation Requirements The Laminar Flow Enclosure is designed to be installed around an optical table. Warning Due to the weight and dimensions of the components, the following procedure must be performed by at least two persons.
  • Page 6: Parts List

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.3. Parts List Note The various supports and uprights look very similar to each other and some differ only in the placement of attachment holes. The different parts can be identified by colored stickers on the packaging as indicated in the table below.
  • Page 7 LFE1220 Optical Table Enclosure Chapter 3: Installation Accessories Box Code Description Image Barrel Plug Push Rivet Adjustable Foot 4mm T-handle hex driver 19 mm Spanner 14 mm Spanner Assembly tool *2 extra components included Rev A August 2021 Page 5...
  • Page 8: Installing The Roof Frame Assembly

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.4. Installing the Roof Frame Assembly 3.4.1. Required Parts: Code Description  Longitudinal Filter Support  Lateral Filter Support  Long Top Cross Member Tools Required 4 mm T-handle hex driver Assembly tool 3.4.2.
  • Page 9 LFE1220 Optical Table Enclosure Chapter 3: Installation The construction rails are assembled by sliding the head of low profile screws into the T-slots of the construction rail. To enable the assembly, the spacing between the end of the construction rail and the underside of the screw head must be set to a specific distance.
  • Page 10 LFE1220 Optical Table Enclosure Chapter 3: Installation Fit the second Longitudinal Filter Support: Figure 4 Assembly of Longitudinal and Lateral Filter Supports – Step 4 To assemble construction rails together, the low profile screw heads are tightened inside the T-slots, clamping the parts together.
  • Page 11 LFE1220 Optical Table Enclosure Chapter 3: Installation It is recommended that two people perform this step. Repeat steps 3 to 5 to fit the remaining lateral support to the opposite ends of the longitudinal supports. Figure 6 Assembly of Longitudinal and Lateral Filter Supports – Step 6...
  • Page 12: Roof Frame Assembly

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.4.3. Roof Frame Assembly Set the spacing of the low profile screws in both ends of each Lateral Filter Support (as per step 2). Figure 7 Roof Frame Assembly – Step 7 Set the spacing of the low profile screws in both ends of each Long Top Cross Member (C ).
  • Page 13 It is recommended that 2 people perform this step. Insert and slide the inner frame (from step 6) into the Long Top Cross Member (note that the inner frame fits to the face WITHOUT the Thorlabs name plate). Tighten the screws using the T-handle hex driver (as per step 5), ensuring the upper faces of the construction rails are flush.
  • Page 14 LFE1220 Optical Table Enclosure Chapter 3: Installation 10. It is recommended that 2 people perform this step. Repeat step 9 to attach the remaining Long Top Cross Member. Ensure the top faces are flush before tightening the screws. Figure 10 Roof Frame Assembly – Step 10...
  • Page 15: Roof Panel Fitting

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.5. Roof Panel fitting 3.5.1. Required Parts: Code Description Roof Panel - Inner Roof Panel - Outer Roof Panel - Blanking Barrel Plug Push Rivet 11. Peel back the protective plastic film from Roof Panels (H, I and J) just enough so that the fixing holes can be accessed.
  • Page 16 LFE1220 Optical Table Enclosure Chapter 3: Installation 12. Lay the Roof Panels (H, I and J) onto the roof frame (from step 0). Note that the panels have 1 glossy and 1 matte side. The panels can be assembled with either finish on the inside of the frame; orientate your parts according to the desired finish.
  • Page 17 LFE1220 Optical Table Enclosure Chapter 3: Installation 13. Secure with qty 42 push rivets (AH) through the smaller (7 mm) holes. The alignment mark should be parallel to the edge that the push rivet is located in as indicated in the image below. The push rivets have 2 parts – 1: the lower part inserts into the hole and the 2: the top part is then pushed in which expands the rivet and locks it in place.
  • Page 18 LFE1220 Optical Table Enclosure Chapter 3: Installation 14. Fit 6x barrel plugs (AG) – push fit. Figure 14 Fitting the Barrel Plugs 15. Adjust the screws in each end of the roof extrusion as per step 2. Put finished Roof Frame Assembly to one side.
  • Page 19: Upright Frame Assembly

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.6. Upright Frame Assembly 3.6.1. Required Parts: Code Description  Short Top Cross Member  Frame Upright  Long Lower Cross Member G  Short Lower Cross Member Adjustable Foot Tools Required 4 mm T-handle hex driver...
  • Page 20 LFE1220 Optical Table Enclosure Chapter 3: Installation 17. Set the spacing of the low profile screws (as per step 2) in the end faces of all the construction rails needed for   the Upright Frame Assembly: 2x Short Top Cross Members (D...
  • Page 21 LFE1220 Optical Table Enclosure Chapter 3: Installation Warning During steps 19 to 22, ensure that the cross members are supported until the fixing screws are tightened. Do not let the cross member drop. 19. It is recommended that 2 people perform this step. Insert and slide one of the Long Lower Cross Members ...
  • Page 22: St Short Side Assembly

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.6.3. 1 Short Side Assembly  20. It is recommended that 2 people perform this step. Select a Frame Upright (E ) and a Short Lower Cross  Member (G ). Ensure the T-slot recesses and positioning screw are aligned as shown. Similarly to step 19, fit the Short Lower Cross Member into the uprights and tighten the screws.
  • Page 23: Nd Long Side Assembly

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.6.4. 2 Long Side Assembly  21. It is recommended that 2 people perform this step. Assemble the remaining Frame Upright (E ) and Long  Lower Cross Member (F ), similarly to step It is recommended that 2 people perform this step. Select a ...
  • Page 24: Nd Short Side Assembly

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.6.5. 2 Short Side Assembly  22. It is recommended that 2 people perform this step. Fit the remaining Short Lower Cross Member (G ) into the assembly and tighten the screws. The frame will flex sufficiently for the screw heads to be inserted through the T-slot recesses.
  • Page 25 LFE1220 Optical Table Enclosure Chapter 3: Installation  23. It is recommended that two people perform this step. Insert one of the Short Top Cross Members (D ) from the top of the uprights until the screw heads align with the through holes. Ensure that the top of the cross member is flush with the top of the uprights, then tighten the screws.
  • Page 26: Roof Fitting

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.7. Roof Fitting 3.7.1. Required Parts: Code Description Tools Required 4 mm T-handle hex driver 3.7.2. Roof Fitting 24. Lift the roof frame (from step 15) onto the upright frame completed in step 23, and slide down until the roof is seated on the positioning screws;...
  • Page 27 LFE1220 Optical Table Enclosure Chapter 3: Installation 25. Fit the remaining 4x barrel plugs and 6x push rivets in the roof panels. Figure 23 Fitting the Barrel Plugs and Push Rivets Rev A August 2021 Page 25...
  • Page 28 LFE1220 Optical Table Enclosure Chapter 3: Installation 26. Fit qty 10 (AG) barrel plugs into the corresponding holes on the underside of the top cross members. Figure 24 Fitting the Barrel Plugs to the Underside of the Top Cross Members...
  • Page 29: Using The Slot Cover Profile

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.8. Using the Slot Cover Profile The slot cover profile (K) is supplied for use as a dust cover, panel holder, or to route cables in the slots in the extrusion. When inserted with the flat side facing out, the extruded plastic profile covers the T-slot in the frame, preventing dust and dirt build up for clean applications.
  • Page 30: Removing Push Rivets

    LFE1220 Optical Table Enclosure Chapter 3: Installation 3.9. Removing Push Rivets • This can be done by lifting the head of the rivet with a flat head screw driver or similar tool. Page 28 ETN057351-D02...
  • Page 31: Chapter 4 Specifications

    LFE1220 Optical Table Enclosure Chapter 4: Specifications Chapter 4 Specifications General Specifications 1, 2 Maximum Load on Roof (For Storage) 260 kg 1, 2 Maximum Load per Construction Rail 100 kg Total Weight 82 kg Foot Height Adjustment +/- 11.5 mm...
  • Page 32: Chapter 5 Thorlabs Worldwide Contacts

    Contact Thorlabs for more information. Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
