Summary of Contents for SBR ST400

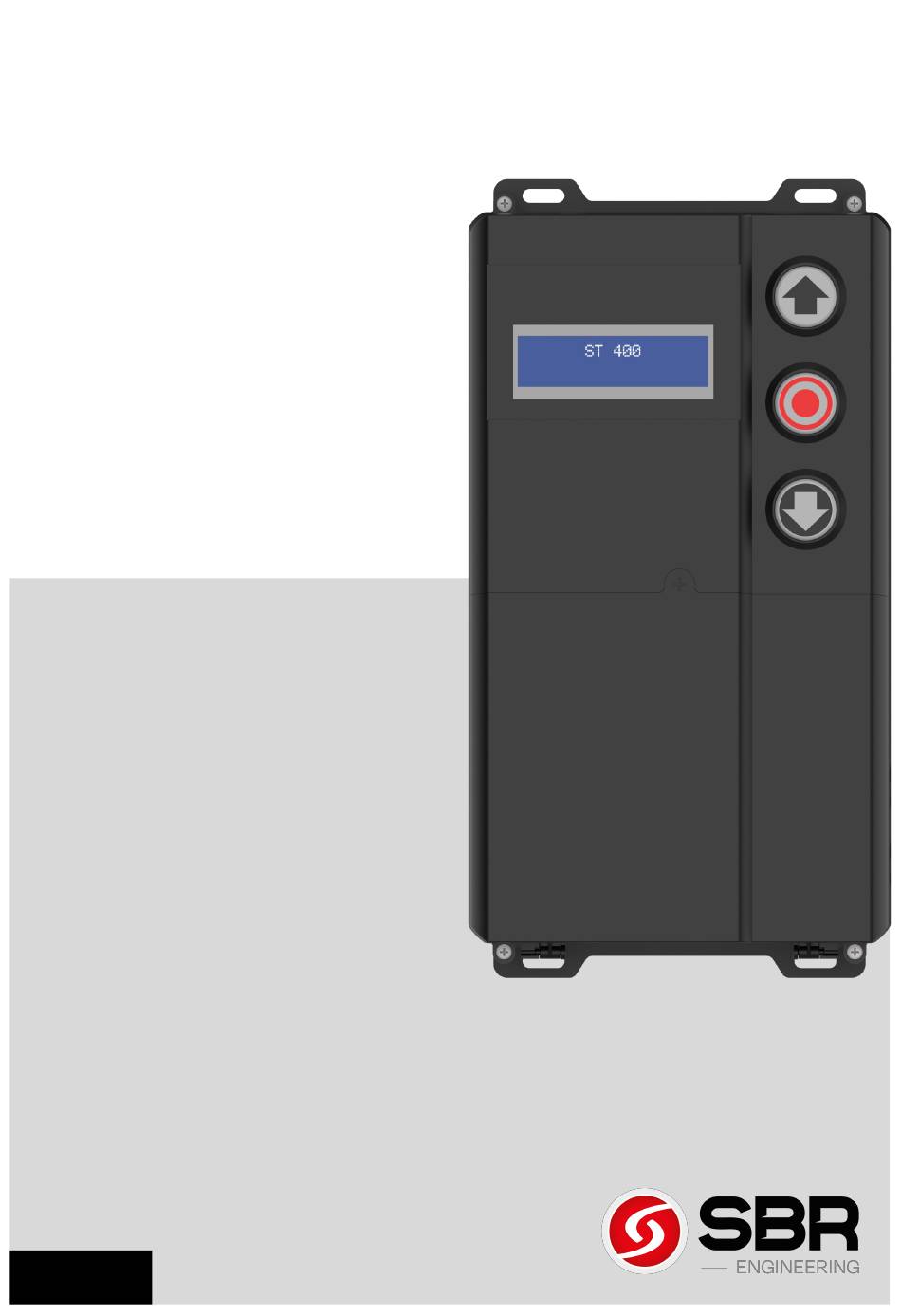

  • Page 1 ST400 USER GUIDE SW : 1.00 ENGLISH...
  • Page 2 ST400 CONTROL UNIT USER GUIDE OPERATING INSTRUCTIONS ST400 control unit is compatible with universal voltage range (85-305V 50/60Hz L-N). ST400 control unit can be used to control one single-phase 230V motor up to 800W or one three-phase 400V motor up to 1,5kW.
  • Page 3 • Trained in the use and maintenance of appropriate safety equipment • Recognizing electrical hazards NOTE: ST400 control unit does not contain substances such as Asbestos, PCB (Polychlorinated Biphenyl) and HG (Mercury) that are harmful to human health and is not used in its production. SW:1.00...
  • Page 4 ST400 CONTROL UNIT USER GUIDE OVERVIEW X1 – COMMAND AND SECURITY DEVICES CONNECTION TERMINAL Function Description Common connection STOP Emergency Stop connection (NC contact) PHOTO Photocell connection (NC contact) START Start button connection (NO contact) OPEN Open button connection (NO contact)
  • Page 5 ST400 CONTROL UNIT USER GUIDE CONNECTIONS X1 - Command and Security Devices Connection Connections of command and safety devices are shown on the left. You can give a STOP command to the door by connecting a NC contact button to the STOP (2)terminal. If this input will not be used, it must be connected to COM(12).
  • Page 6 3N~400VAC-50/60Hz X5 - Programmable Relay Module Connection SBR Engineering programmable relay module can be connected this terminal. Our relay module includes three-way traffic light control and three independent programmable relay outputs. Those outputs can be programmed as flasher, door opened, door closed, buzzer etc. output from INPUT -OUTPUT ADJUSTMENTS menu.
  • Page 7 ST400 CONTROL UNIT USER GUIDE X7 - Limit Information Connection As shown in the figure that is on the left, this terminal can be used for both ENC (Electronical limit switch) and MEC (Mechanical limit switch). Connections as follows; 12Vdc(28) and GND(27) should be used to power ENC. If MEC is used, GND(27) is common connection.

  • Page 8: Input/Output

    ST400 CONTROL UNIT USER GUIDE Programming with LCD Information Display Various functions of the control unit can be programmed using LCD information screen located on the front of the unit and setting the necessary parameters in the programming menu as described below.
  • Page 9 ST400 CONTROL UNIT USER GUIDE 1-PARAMETERS ADJUSTMENT 100auto. closing Automatic close time. After countdown, control unit closes door. TIME: 40 SEC 101.MAX. OPEN Maximum opening time. This parameter restricts maximum elapsed time on TIME: 30 SEC opening direction. 102.max. CLOSE Maximum closing time.
  • Page 10 ST400 CONTROL UNIT USER GUIDE 2-lojiC ADJUSTMENT 200.auto.closing Parameter to set automatic shutdown mode enable/disable 201.block pulses Sets whether the START (Step-by-Step) signal or CLOSE button signal will be effective or not during opening phase. 202.fast close Enable/disable status setting for quick shutdown mode.
  • Page 11 ST400 CONTROL UNIT USER GUIDE 3– END POSITION ADJUSTMENT 300.open endpos. Click OK button to set open limit position. 5000 300.open endpos. Press OPEN button to set opened position and press OK button to 5000 4000 save. Set Value Actual Value 301.close endpos...
  • Page 12 ST400 CONTROL UNIT USER GUIDE 4-DOOR WORKING information 400.total cycle Total cycle counter. count: 401.service warn Service warning value for cycle counter. count: 20000 402.spring warn. Spring warning value for cycle counter. count: 20000 403.produc. date Production date. 21.11.2018 404.mount. Date Installation date.
  • Page 13 ST400 CONTROL UNIT USER GUIDE 5-input-output ADJUSTMENTs 500.input10 swc Menu for setting closed limit switch input ON/OFF. 501.input11 swo Menu for setting opened limit switch input ON/OFF 502.input 12 ose 1.Optosensor 2.Pneumatic NC 2.pneumatic nc 3.Pneumatic NO 503.input 7 IN1 1.Pedestrian door switch...

  • Page 14: Lcd Adjustments

    ST400 CONTROL UNIT USER GUIDE 6-lcd adjustments 600-language Language selection menu. 1.turkish 1.Turkish 2.English 601.menu passwrd Password change menu. 602eroor history Error history menu. SW:1.00...

  • Page 15: Fault Messages

    ST400 CONTROL UNIT USER GUIDE FAULT MESSAGES Ep500a Phase sequence is incorrect. Check phase sequence or fuses. Power error Ep500a Check motor connection cables or motor. Mot. Power error Ep500a Check emergency stop button or emergency button cables. Emergency stop1...
  • Page 16 Address: Phone : +90 850 533 1727 Fevziçakmak Mah. Sıla Cad. : +90 332 238 4182 48-O, Elit Sanayi Sitesi, Mail : info@sbr.com.tr Karatay / KONYA : www.sbr.com.tr...
