- Page 1 Tip Commander A 1694 Instruction manual Version 1.1.1, Code No. 20 753 034...
- Page 2 Mark on your equipment certifies that this equipment meets the requirements of the EU (European Union) concerning safety and interference causing equipment regulations © 2020 METREL No part of this publication may be reproduced or utilized in any form or by any means without permission in writing from METREL.
-
Page 3: Table Of Contents
A 1694 Tip Commander Table of contents ABLE OF ONTENTS General description ....................... 4 Warnings and notes ....................4 1.1.1 General safety warnings ..................4 1.1.2 Markings on the Tip Commander ................4 Standards applied ....................... 5 Tip Commander set and accessories ................6 Standard set of the Tip Commander ................ -
Page 4: General Description
Do not use the accessories if any damage is noticed! A 1694 shall be connected to DB9 connector (3-Phase adapter) and P/S, AP/A connector. Do not connect the A 1694 to FLASH output connector (MI 3360F model). -
Page 5: Standards Applied
A 1694 Tip Commander General description 1.2 Standards applied The A 1694 Tip Commander is manufactured and tested according to the following regulations, listed below. Safety (LVD) EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements... -
Page 6: Tip Commander Set And Accessories

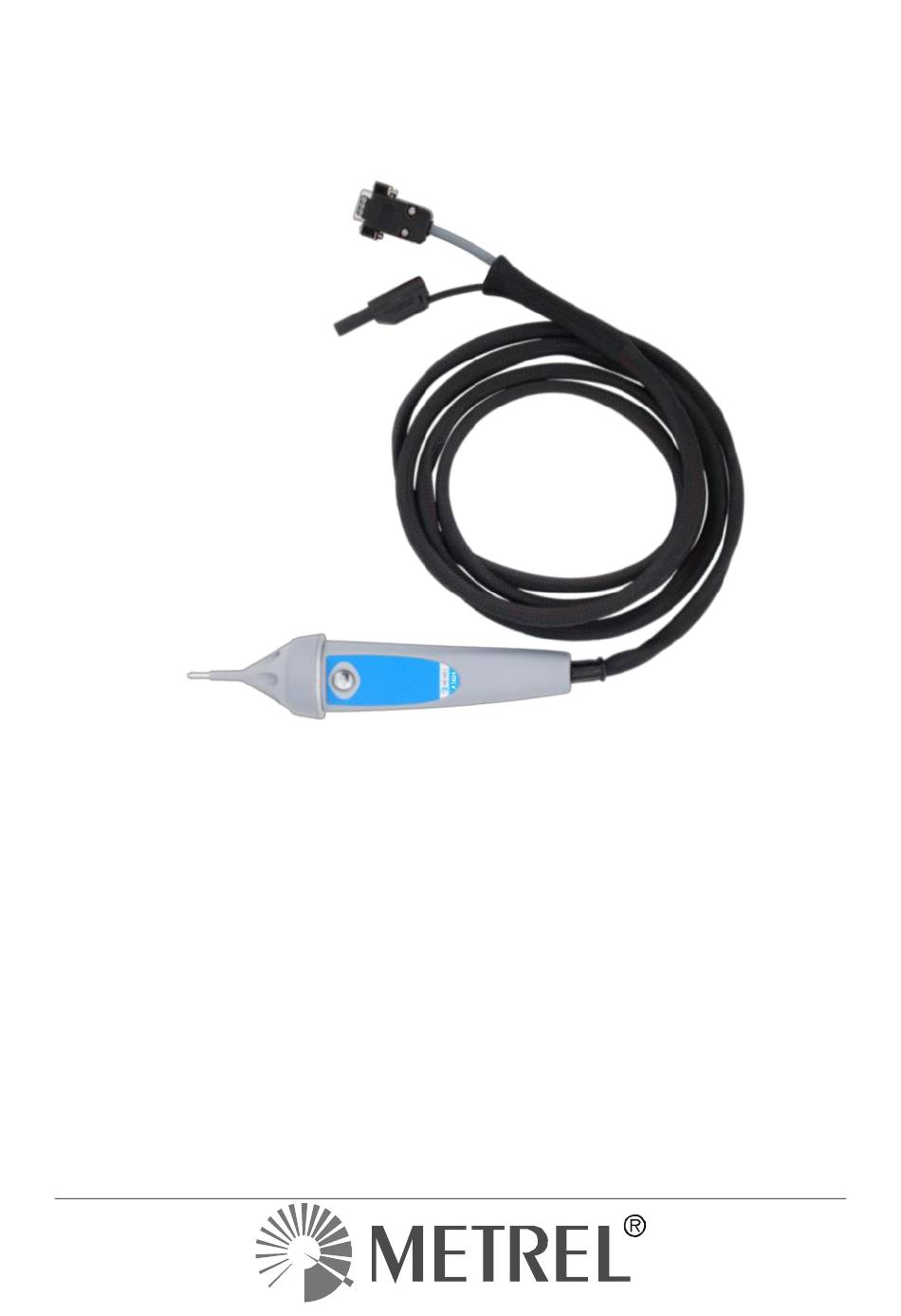

A 1694 Tip Commander Set and accessories 2 Tip Commander set and accessories 2.1 Standard set of the Tip Commander A 1694 Tip Commander Instruction manual Figure 2.1: Tip Commander A 1694... -
Page 7: Tip Commander Description
Legend Figure 3.1: Tip Commander Legend TEST Start / Stop test button TEST tip Measuring test tip Note: A 1694 Tip Commander does not require batteries. It is supplied from the MI 3360 OmegaPAT/GT instrument. -
Page 8: Operation Of Tip Commander
Consecutive measurements within test loop can be started or stopped with TEST button. Tip Commander A 1694 should only be used with MI 3360 series of METREL test instruments. ® Full functionality of A 1694 is supported in AutoSequence and Single tests. -
Page 9: Maintenance
A 1694 Tip Commander Maintenance 5 Maintenance 5.1 Service Unauthorized person is not allowed to open the Tip Commander. There are no user replaceable parts inside the instrument. For repairs under or out of warranty, please contact your distributor for further information. -
Page 10: General Data
Pollution degree ..........2 Degree of protection ........IP 40 Weight A 1694 ............0,4 kg Operation conditions Working temperature range: ......0 C ... +40 C Maximum relative humidity: ......85 % RH (0 C ... 40 C), non-condensing Altitude ............
