ESD-PROTECT EM Eye Installation, Operation And Maintenance Manual

USER GUIDE EP0201100
EM Eye - ESD Event Detection Meter
Installation, Operation, and Maintenance

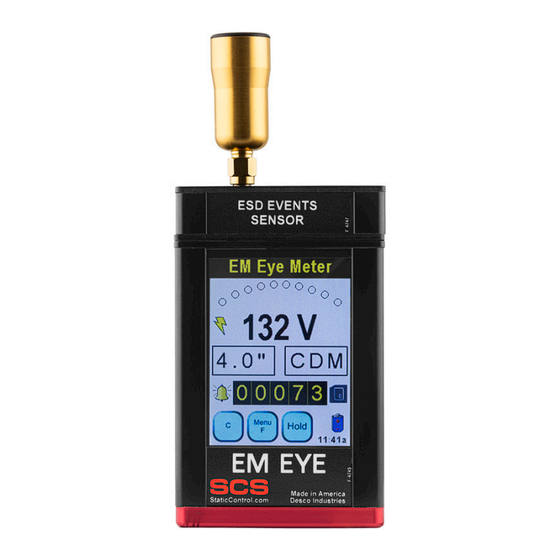

Figure 1. SCS EM Eye - ESD Event Meter
Description
The SCS EM Eye - ESD Event Meter detects, counts
and measures ESD events that can damage ESD
items and cause tool lock-ups, erratic behavior, and
parametric errors. It calculates event magnitude for
Charged Device Model (CDM), Human Body Model
(HBM), and Machine Model (MM). All measurements
are recorded onto a microSD card for PC download.
It features a touchscreen display and rechargeable
lithium ion battery. Each EM Eye - ESD Event Meter
is calibrated with accepted procedures and standards
traceable to the National Institute of Standards and
Technology (NIST).
Resistive Touchscreen
The EM Eye Meter is designed with a modern user
interface. All buttons and controls are within the display
itself. With its display and touch screen, it is easier for
users to quickly navigate through the features that were
built into the meter.
Figure 2. Using the resistive touchscreen
ESD-PROTECT GmbH
TB-9119 Page 1 of 10 July 2024
Data Logging
The EM Eye Meter supports data logging by using a
microSD card and exports to an Excel spreadsheet.
Having data at hand enables quick analysis. Solutions
can be decided quickly and can be measured on the
spot.
Figure 3. Inserting a microSD card
Speaker & Headphone Audio
The EM Eye Meter, with a speaker and headphones,
allows flexible means for audible indications, beeping
or "warbling" like a radio. If one is in a noisy place, a
headphone jack for optional headphones can be used
for clearer audio.
Figure 4. Using the headphone output
