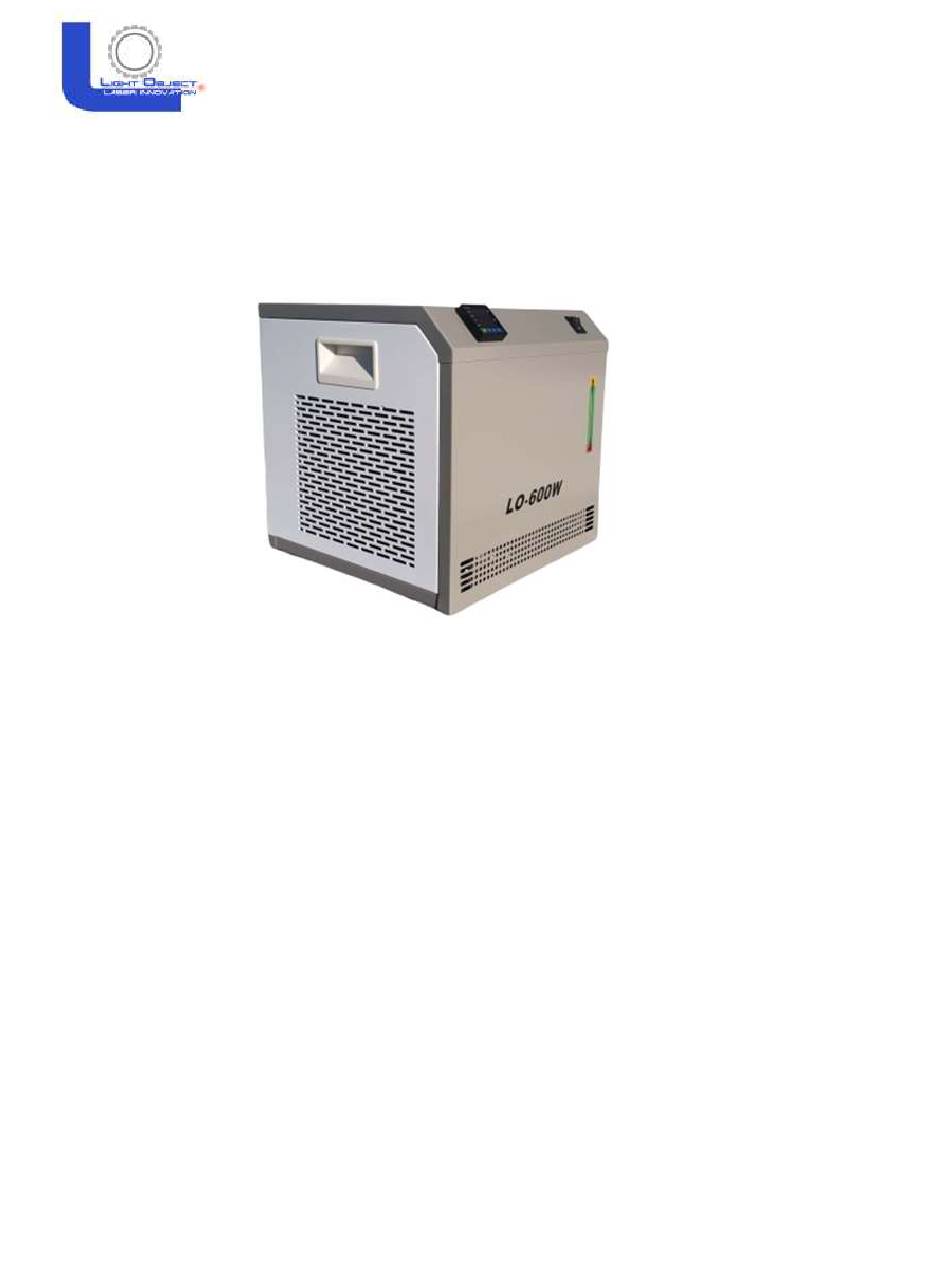

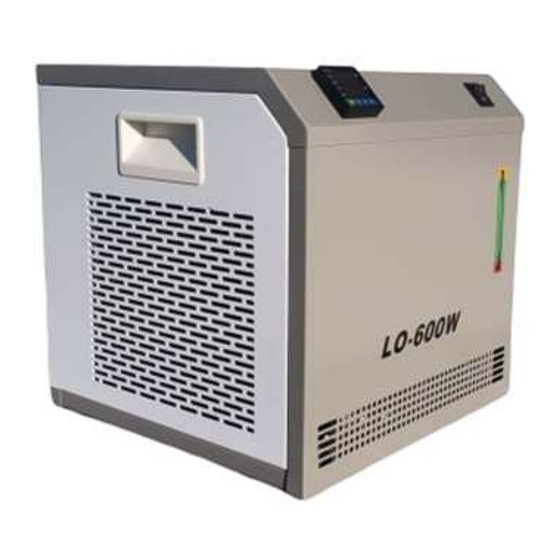

LightObject-600W Water Chiller Manual
Specifications:
Input power: AC 110V, 60Hz
Full power current: 3Amp
Refrigerant: R134A
Pump power: 30 W
Pump lift (cut off): 8m (26 ft)
Flow rate: 10L/min, 158 GPH
Water tank capacity: 4L
Water Inlet/Outlet diameter: 10 mm
Ambient Temperature: ≤35°C (95°F)
Chilled Water Temperature: 18~30°C
Weight: 20kg (45lb)
Dimension: 355×420×370mm (14" x 16.5" x 14.5"height)
Built in water flow and high temperature alarm.
Cautions and Conditions
1) Ensure good contacts on the AC power plug: Live, Neutral, and Ground
2) Stable AC voltage is necessary for operation. AC 110V +/-5%
3) Stable AC frequency (Hz) is required. No square wave or modified sinusoidal wave.
LightObject 2020
Advertisement
Related Manuals for Lightobject LQ-600W
Summary of Contents for Lightobject LQ-600W
- Page 1 LightObject-600W Water Chiller Manual Specifications: Input power: AC 110V, 60Hz Full power current: 3Amp Refrigerant: R134A Pump power: 30 W Pump lift (cut off): 8m (26 ft) Flow rate: 10L/min, 158 GPH Water tank capacity: 4L Water Inlet/Outlet diameter: 10 mm Ambient Temperature: ≤35°C (95°F)
- Page 2 2) Use the silicone water tubing to connect the water chiller to the machine. Connect the chiller’s water outlet to the laser machine’s water inlet. Connect the chiller’s water inlet to the laser machine’s water outlet. LightObject 2020...
- Page 3 If the current temperature is higher than AH1, the chiller will start to cool down water at full power. If the current temperature is higher than SV and lower than AH1, the chiller will keep cooling down water at low power. If the current temperature is lower than AL1, the chiller will stop chilling. LightObject 2020...
