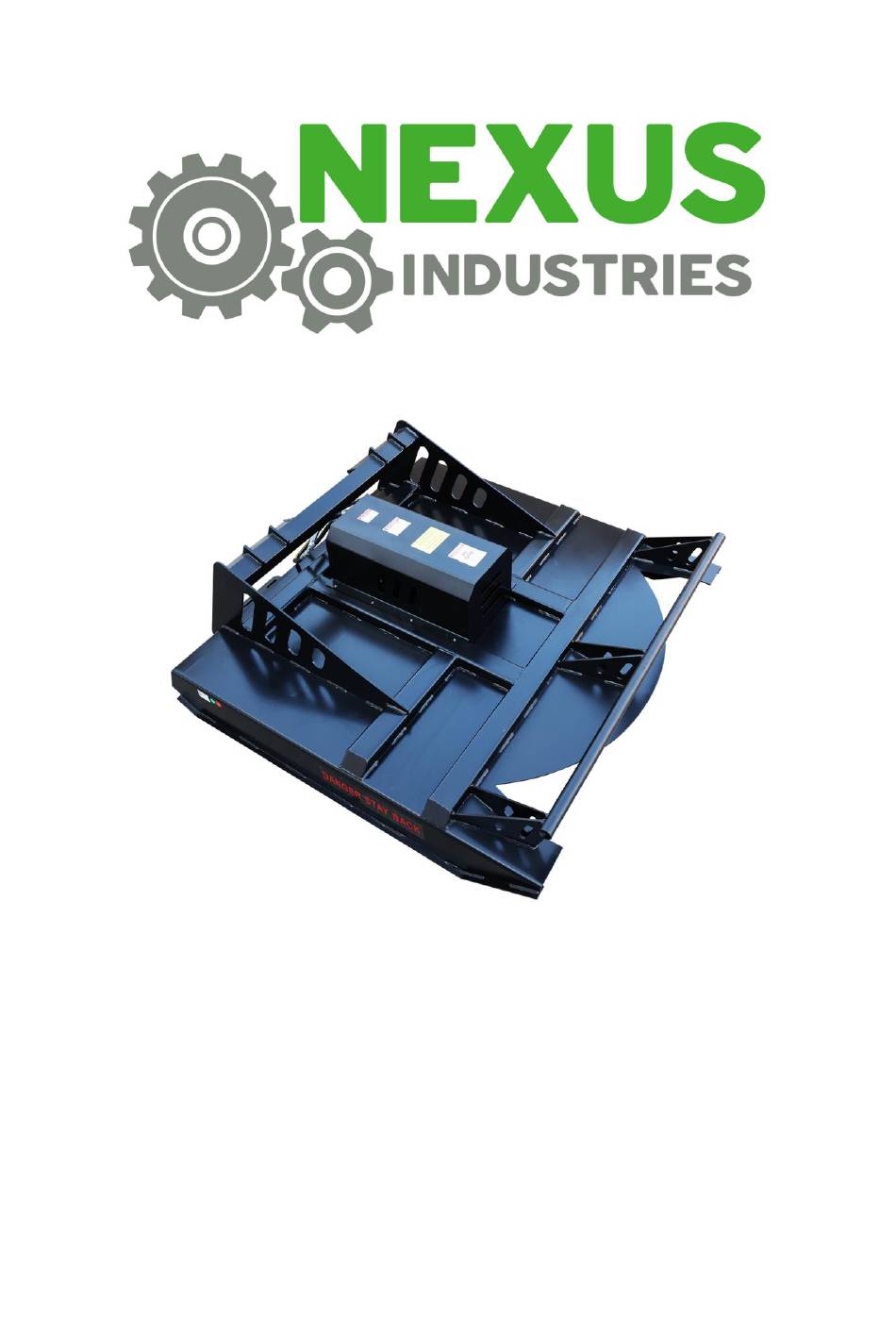

- Page 1 72” Brush Cutter Model: BC72-MP1220...
- Page 2 Keep this manual for future reference and make sure to hand it over to a new owner. The cornerstones of the product development of NEXUS attachments are quality, durability and economy. The products are engineered to be high-performing, safe and durable in professional use. Any feedback on our products is welcome and contributes to the further development of our products.
-
Page 3: Table Of Contents
Table of contents 1. PURPOSE OF USE ..................................3 2. SAFETY PRECAUTIONS ................................3 3. PARTS OF THE BRUSH CUTTER ............................4-5 4. USING THE BRUSH CUTTER ..............................6 5. OPERATING THE BRUSH CUTTER ............................6 6. MAINTENANCE OF THE BRUSH CUTTER ..........................7... -
Page 4: Purpose Of Use
1. PURPOSE OF USE Brush Cutter Mowing deck for Skid Steer Loaders. 2. SAFETY PRECAUTIONS Make sure you know your equipment before you start using it. Equipment may be operated only by an individual who is thoroughly familiar with its use. Before connecting hydraulics to the base machine, make sure that: - there is no-one between the attachment and the base machine - the base machine is turned off and the parking brake is on. -
Page 5: Parts Of The Brush Cutter
3. PARTS OF THE BRUSH CUTTER DIAGRAM NO. DESCRIPTION Brush Cutter Motor Bearing Housing Cover Plate Gear Blade Fiber Liner Motor Flat Washer Fitting Hose T-connector Valve Adapter... -
Page 6: Before Using The Brush Cutter
Hose Hex Bolt Hex Nut Bolt Hex Bolt Flat Washer Hex Nut Bonded Washer Plate Gear Box Hex Bolt Flat Washer Hex Nut 29-32 Stick Adapter Fitting Connector Name Plate 4. BEFORE USING THE BRUSH CUTTER 4.1. MAKE SURE all locking cotters are secured and intact. When coupling brush cutter to the base machine, please pay attention to the instructions on the use of the base machine. -
Page 7: Using The Brush Cutter
*** PLEASE CHANGE the Gear Oil every 2-3 month. If the Brush Cutter to be used frequently, please change the Gear Oil every month. *** 4.3. Attaching the brush cutter to the base machine The brush cutter is attached to the base machine by welded or bolted quick hitches. The machine is connected to connected to a hydraulic system. -
Page 8: Maintenance Of The Brush Cutter
hydraulic connectors are clean and the hoses are intact. 5. Check carefully the attachment’s, the base machine’s and the fitting’s trajectory for collision. Make sure that the needed space for hydraulic hoses and -attachments is adequate. Check that the brush roll rotates outwards from the. If not, switch hoses in the base machine.
