Gent 32000 Standalone Installation Manual

Analogue addressable fire detection and alarm system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

SYSTEM

32000

NALOGUE

DDRESSABLE

IRE

AND

LARM

Installation

Manual

Version 3.4X

32599 Issue 1-1

July 1999

Gent Limited

Waterside Road

Hamilton Industrial Park

Leicester, LE5 1TN

Tel: 0116 246 2000

Telex: 342367 Fax: 0116 246 2300

ETECTION

YSTEM

Notes to Installer

EMC Compliance and

LVD Compliance

Cables

Loop Circuit

Connections

Standalone System

Installation

Network overview

Network System

Installation

Parts

Table of Contents

Need help?

Do you have a question about the 32000 Standalone and is the answer not in the manual?

Questions and answers

Jeremiah

April 6, 2025

Wiring connections for 32000 smoke and heat detectors

1 comments:

Mr. Anderson

April 6, 2025

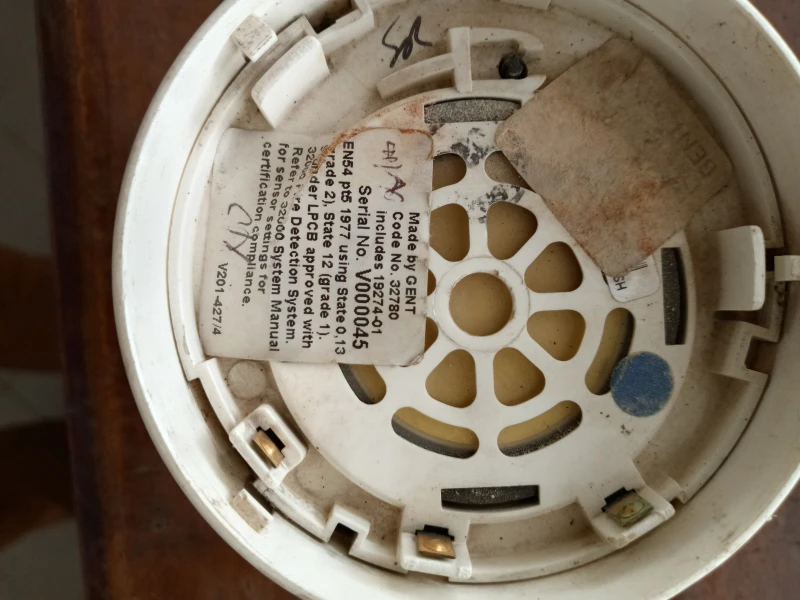

The wiring connections for Gent 32000 standalone smoke and heat detectors involve connecting the loop cables to the sensor terminal plate. Each detector must be fitted to a terminal plate in a location specified by site-specific information. The terminal plate includes:

- Elongated fixing holes for loop cable (L1 and L2) entry.
- Connection points for loop cables.
- A metallised coating to ensure base earth continuity to the loop cable screen.
- OV (common ground) connection point.

The terminal plate is fixed to a ceiling tile or suitable surface, and loop cables (such as MICC, FIRETUF, etc.) with 2-core plus screen and 1.5mm² cross-sectional area per core are used. Proper tools and techniques must be used during installation to avoid damaging components.

This answer is automatically generated

Summary of Contents for Gent 32000 Standalone

Page 1 Standalone System LARM YSTEM Installation Network overview Installation Manual Network System Version 3.4X Installation 32599 Issue 1-1 July 1999 Parts Gent Limited Waterside Road Hamilton Industrial Park Leicester, LE5 1TN Tel: 0116 246 2000 Telex: 342367 Fax: 0116 246 2300...
Page 2: Associated Documents
The information contained herein is supplied without liability for errors or omissions. No part of the manual may be reproduced in any form whatsoever without prior consent of the Gent Limited. Due to the on going development of 32000 system the information contained in the manual is subject to change without notice.
Page 3: Customer Feedback
Customer feedback If you have any comments on this manual, then please provide them below. Post completed sheet to the address overleaf or pass on to your are sales representative. Thanks Your name: Address: Manual number and title 32599 Issue 1_3/99 System 32000 Installation Manual...
Page 4 Technical Publications Gent Limited Waterside Road Leicester LE5 1TN System 32000 Installation Manual 32599 Issue 1_3/99...
Page 5: Table Of Contents
Contents Table of Contents Notes to Installer ..... 1-1 EMC Compliance ..... 2-1 LVD Compliance .
Page 6 Contents 32022 Fire Alarm Control Panel ....6-1 Fuses and locations ......6-1 32330 Battery Unit .
Page 7 Contents Semi-Flush Fixing ......12-3 Testing ....... . . 12-3 Alarm Sounders .
Page 8 Contents 32620 Network Interface ..... . . 21-1 Fuses and locations ......21-1 Network Wiring .
Page 9: Notes To Installer
The power-up and commissioning is done by Servicing organisation. The manual contains fixing and wiring information to cover the installation of the GENT System 32000 Standalone and Network. Installation It is recommended that the installer follow the general requirements of...
Page 10 Parts for later installation Notes to Installer Parts for later All unused parts should be retained in their respective container for safe installation keeping until required. NOTE: The installation of all outstanding parts are usually carried out during Commissioning of the System. Loop earth To maintain earth continuity the loop cable screen must be connected continuity...
Page 11 Notes to Installer Wiring test CAUTION: DO NOT undertake high voltage insulation tests Wiring test WITH THE CABLES CONNECTED to their terminals. Such a test may damage the electronics circuitry in loop devices and panels. 32599 Issue 1_3/99 System 32000 Installation Manual...
Page 12 Wiring test Notes to Installer This page has been left intentionally blank. System 32000 Installation Manual 32599 Issue 1_3/99...
Page 13: Emc Compliance
EMC Compliance Introduction EMC Compliance Installation guidelines for compliance with the requirements of the Electromagnetic Compatibility (EMC) Directive Introduction These guidelines should be followed to meet the requirements of the EMC directive in force within the European Union, to prevent the reception and emission of electromagnetic interference into and out of the analogue addressable fire detection and alarm system.
Page 14 Cable Separations EMC Compliance For network circuit, that is the wiring of network interface to control panel or between network interfaces use: • Firetuf FDZ1000 • Mineral Insulated Copper Cable (MICC) • Belden Cable No 9729 (UL Style 2493) • Armoured Cable By armouring the Belden Cable No 9729 (UL Style 2493) In the UK, the guidance of BS5839 : Part 1 should also be followed.
Page 15 The wires between the termination point and terminals should be short and as straight as possible. The EMC compliance tests conducted by Gent made use of Mineral insulated cable (MICC) with the following accessories: galvanised finish junction boxes for installation of alarm and detec-...
Page 16 Board fixing EMC Compliance This page has been intentionally left blank. System 32000 Installation Manual 32599 Issue 1_3/99...
Page 17: Lvd Compliance
Unused knockouts that have been removed, should not be left open. Mains supply Gent products are not designed to be powered from IT Power Systems. Power supply This should be a 3-core cord (e.g. PVC insulated cord with designation...
Page 18 Power supply cable LVD Compliance This page has been intentionally left blank. System 32000 Installation manual 32599 Issue 1_3/99...
Page 19: Cable Types
Cable Types Cables for Loop circuit Cable Types Cables for Loop circuit For information on network cables, see the section on Network cables. The loop cable carries both data and power supply and therefore its selection is important. CAUTION: In countries where the European EMC directive is in force, only those cables detailed in the EMC Compliance part of this manual may be used.
Page 20 This will severely degrade EMC performance as the foil to drain wire impedance will increase. Therefore these wires should be used and installed in line with GENT and Cable manufacturers instructions and only under environmental conditions as specified by the manufacturer.
Page 21: Interface Input Line Module Cable Usage
Cable Types Cables for Loop circuit Interface input line module cable usage Where loop powered interface units makes use of line module(s) that are installed a distance away from the respective unit, then the overall distance should not be more than 100m, this is assuming a 1.5mm MICC cable is being used.
Page 22: Network Cables
Network Cables Network Cables CAUTION: In countries where the European EMC directive is in force, only those cables detailed in the EMC Compliance part of this manual may be used. The cable used to interconnecting fire alarm Control panel to Network Interface, Network Interface to Network Interface.
Page 23 Network Cables Mineral insulated copper cable (EMC Compliant) - such as BICC CCM3L1.5. 600m maximum cable distance Network Interface to Network interface 10m maximum Control panel to network Interface cable distance • BS6207: Part 1 • 3 parallel cores • having continuous metal sheath encapsulating •...
Page 24 Network Cables Cable Types This page has been intentionally left blank. System 32000 Installation Manual 32599 Issue 1_3/99...
Page 25: Loop Circuit Connections
Loop Circuit Connections Loop Capacity Loop Circuit Connections The fire alarm system can permit significant reductions in installation costs when compared with conventional and other multi-state systems. This is because of the ability to wire a large number of devices (outstations), like sensors, sounders, manual call points, interface units and repeat panels on one loop circuit.
Page 26: Loop Cable
Loop cable Loop Circuit Connections Loop cable See the part on Cables NOTE: Multi-core cables carrying more than one circuit should never be used. NOTE: A remotely installed line module should not be located more than 100m cable distance away from the interface unit, assuming 1.5mm MICC is being used.
Page 27 Loop Circuit Connections Spur circuits Figure 5-1 Typical fire alarm system cdn18 32599 Issue 1_3/99 System 32000 Installation Manual...
Page 28: Lightning Protection
Lightning protection Loop Circuit Connections Lightning protection CAUTION: Lightning protection must be used if a loop cable is routed on exterior wall of a building. Earth Continuity To maintain earth continuity, the loop cable screen must be connected through at each system device. Control Panel connections NOTE: The previous or next device connection can be a loop device or an end connection to the control panel.
Page 29: 2-Way Device
Loop circuit connections 2-way device 2-way device shfl172 Figure 5-3 Connecting a 2-way device 3-way device cdn16 Figure 5-4 Connecting a 3-way device 32599 Issue 1_3/99 System 32000 Installation Manual...
Page 30: Slave (Indicator) Led Unit
Slave (Indicator) LED Unit Loop circuit connections Slave (Indicator) LED Unit shfl104 Figure 5-5 Connecting a slave Indicator unit NOTE: The slave LED unit must always be connected before the respective master 32000 sensor relative to End 1 of the loop. The slave LED 'attaches' itself to the master sensor and reflects the state of this device Slave Relay Unit...
Page 31: Standalone System Installation
Standalone System Installation 32020 Fire Alarm Control Panel Set Standalone System Installation 32020 Fire Alarm Control Panel Set The 32020 Control Panel Set consists of three packages: 32022 Fire Alarm Control Panel 32330 Battery Unit 13395-12 Battery Pack 32022 Fire Alarm Control Panel Where appropriate refer to as fitted wiring diagrams (if supplied), general notes, EMC compliance, LVD compliance, cable types and loop circuit connections.
Page 32 32020 Fire Alarm Control Panel Set Standalone System Installation cdn2 Figure 6-1 Control Panel with the door open Remove the earth lead from upper case earth to PSU terminal block. Disconnect the two ribbon cables from the display/keyboard board, located on the inside-left of the door assembly. Remove the door from the back box assembly, by sliding it up and off.
Page 33 Standalone System Installation 32020 Fire Alarm Control Panel Set cdn3 Figure 6-2 Control Panel Back box shown without door Flush mount If the panel is to be flush mounted then follow the instructions for flush mounting control panel now. Once flush fixing is complete, or if panel is to be surface mounted continue with j) below.
Page 34 32020 Fire Alarm Control Panel Set Standalone System Installation Battery unit If the battery Unit is to be close fitted beneath the control panel then follow the battery Unit fixing instructions now. Once battery unit is installed, or if it is to be installed remotely continue with n) below. Power supply NOTE: It is recommended that the power supply assembly is left until assembly...
Page 35: 32330 Battery Unit
Standalone System Installation 32330 Battery Unit 32330 Battery Unit Fuses and locations Fuse Rating Location Batt1 20mm x 5mm 8A Battery fuse board Batt2 20mm x 5mm 8A Battery fuse board The battery Unit may be close fitted beneath the control panel using standard conduit fittings (not supplied).
Page 36 32330 Battery Unit Standalone System Installation Identify the package labelled BATTERY UNIT and check the contents, which should include: Component Quantity Battery Unit Door key Fuse 8A (Battery) Battery cable loom Battery link Nut and washer (for earth stud) Open the battery unit door using the door key. Remove the back box to door earth lead.
Page 37: Fire Control Panel Connections
Standalone System Installation Fire Control Panel Connections Fire Control Panel Connections Mains Connection Figure 6-5 Control Panel Mains connection details cdn5 Loop, Master Alarms and Fire/Fault Relay Connections Figure 6-6 Control Panel cable connection points cdn7 32599 Issue 1_3/99 System 32000 Installation Manual...
Page 38: 32520 Fire Alarm Repeat Panel Set
32520 Fire Alarm Repeat Panel Set Standalone System Installation 32520 Fire Alarm Repeat Panel Set The 32520 Repeat Panel Set consists of two packages: 32522 Fire Alarm Repeat Panel 13495-01 Battery Pack 32522 Fire Alarm Repeat Panel Where appropriate refer to as fitted wiring diagrams (if supplied), general notes, EMC compliance, LVD compliance, cable types and loop circuit connections.
Page 39 Standalone System Installation 32520 Fire Alarm Repeat Panel Set Figure 6-7 Repeat Panel back box cdn11 Secure the back box to the wall with suitable fixings to support a full assembly weight, including the batteries, of 14kg. Terminate the cable at the entry point leaving 400mm tail wire length. WARNING: The mains cable tail ends must be insulated to prevent dangerous conditions arising in the event of accidental switching ON of the mains supply.
Page 40: Fire Repeat Panel Connections
Fire Repeat Panel Connections Standalone System Installation Fire Repeat Panel Connections cdn10 Figure 6-8 Repeat panel connection points System 32000 Installation Manual 6-10 32599 Issue 1_3/99...
Page 41: Flushing Fixing Panels
Standalone System Installation Flushing Fixing Panels Flushing Fixing Panels It is possible to flush fix the control panel, with or without the battery box, and the repeat panel. The following does not cover the battery unit in detail, however the method is the same. Identify the package labelled FLUSH MOUNTING FOR CONTROL PANEL (32029) or REPEAT PANEL (32529) and check the shroud.
Page 42 Flushing Fixing Panels Standalone System Installation This page left intentionally blank. System 32000 Installation Manual 6-12 32599 Issue 1_3/99...
Page 43: 32700 Terminal Plate
32700 Terminal Plate Terminal Plate installation 32700 Terminal Plate Where appropriate refer to as fitted wiring diagrams (if supplied), general notes, EMC compliance, cable types and loop circuit connections. CAUTION: Use the correct tool and technique to fit or remove any part of the 32000 fire sensor or terminal plate. To provide the right coverage, each fire sensor must be fitted to a terminal plate in the location as defined by the site specific information.
Page 44 Terminal Plate installation 32700 Terminal Plate Figure 7-2 Fixing the terminal plate to a ceiling tile fl114 Figure 7-3 Terminal Plate connections shfl113 Earthing NOTE: It is essential that earth continuity is independently maintained requirements around the loop via the cable screen. Terminal Plate To correctly wire the terminal plate: wiring...
Page 45: 19279-10 Sensor Trim Ring
32700 Terminal Plate 19279-10 Sensor Trim Ring 19279-10 Sensor Trim Ring The sensor trim ring is used to cover up large diameter holes, especially those which may be found during refurbishments. cdn94 Figure 7-5 Sensor trim ring Fitting the trim If the sensor trim ring is being installed, it must be fitted to the surface prior ring to fitting the terminal plate.
Page 46 19279-10 Sensor Trim Ring 32700 Terminal Plate This page has been left intentionally blank. System 32000 Installation Manual 32599 Issue 1_3/99...
Page 47: 32000 Fire Sensors
32000 Fire sensors 32000 Fire sensors Where appropriate see, general notes and EMC compliance. CAUTION: To prevent damage to a 32000 sensor, the correct tool and technique must be used when removing or fitting sensor, or its sub assembly, to and from terminal plate. CAUTION: Damage will occur if undue force is used on fitting or removal of any part of a sensor assembly.
Page 48: Fitting A 32000 Sensor Head To Terminal Plate
Fitting a 32000 sensor head to terminal plate 32000 Fire sensors Fitting a 32000 sensor head to terminal plate To fit a 32000 fire sensor head to a terminal plate, use the extractor cup 17918-22. For easy-to-reach terminal plate, the sensor head may be held in hand.
Page 49: Removal Of 32000 Sensor Head From Terminal Plate
32000 Fire sensors Removal of 32000 sensor head from terminal plate Removal of 32000 sensor head from terminal plate Use the extractor cup 17918-22, and the correct electronics module removal tool: 17918-23 for Optical sensor and combined sounders 17918-24 for Ionisation sensor 17918-25 for Heat sensor Using the extractor cup, remove the chamber module from the electronics module of the sensor head...
Page 50 Removal of 32000 sensor head from terminal plate 32000 Fire sensors Using the extractor cup and appropriate electronics module removal tool, remove the electronics module from the terminal plate. TERMINAL PLATE CEILING TILE ELECTRONICS MODULE ROTATE THE CUP OPTICAL ANTI-CLOCKWISE ASSEMBLY SHOWN UNTIL A STOP IS FELT AND PULL...
Page 51: To Assemble A 32000 Sensor Head
32000 Fire sensors To assemble a 32000 sensor head To assemble a 32000 sensor head Use the following technique when fitting together a chamber to its respective electronics module to respective chamber module. ELECTRONICS MODULE FOR AN OPTICAL CHECK TO ENSURE THAT THE VANES ARE DISPLACED AS SHOWN .
Page 52 To assemble a 32000 sensor head 32000 Fire sensors This page has been intentionally left blank. System 32000 Installation Manual 32599 Issue 1_3/99...
Page 53: 19279-01 Semi Flush Mounting Kit
19279-01 Semi flush mounting kit 19279-01 Semi flush mounting kit Where appropriate refer to as fitted wiring diagrams (if supplied), general notes, EMC compliance, cable types and loop circuit connections. These procedures describe how to semi flush a 32000 fire sensor to a ceiling tile.
Page 54 19279-01 Semi flush mounting kit Replace the tile loosely. Feed the loop wires through the semi flush mounting and terminal plate. Secure the terminal plate to the steel box (BESA box). fl116 Figure 9-2 Flush kit installation Clip the flush ring to the semi flush housing. CAUTION: Follow the procedure for wiring the terminal plate to prevent damage to the head.
Page 55: T-Breaker And Slave Units
T-breaker and slave units T-breaker and slave units Where appropriate refer to as fitted wiring diagrams (if supplied), general notes, EMC compliance, cable types and loop circuit connections. 50mm 2 OFF 4 OFF T-BREAKER BASE FIXING ASSEMBLY POINTS FIXING POINTS CABLE ENTRY HOLE 30mm DIA MAIN ASSEMBLY...
Page 56 T-breaker and slave units Remove the ceiling tile to which the base is to be fitted. Punch or drill the required cable entry and base fixing holes in the tile. STANDARD 60mm STEEL BOX (BESA BOX) GLAND LOOP CABLE BASE CEILING TILE SCREWS (NOT SUPPLIED) TO SECURE BASE TO BESA BOX...
Page 57: 32760 Duct Sensor
32760 Duct Sensor 32760 Duct Sensor Where appropriate refer to the as fitted wiring diagrams (if supplied), general notes, EMC compliance, cable types and loop circuit connections. The duct sensor consists of a housing assembly and probes for installation on to a ventilation duct. Identify the packages labelled DUCT SENSOR 32760 and PROBES FOR DUCT HOUSING 7908-05 and check that is has the following parts:...
Page 58 32760 Duct Sensor Figure 11-1 Duct Sensor fixing and connections cdm262 System 32000 Installation Manual 11-2 32599 Issue 1_3/99...
Page 59: Manual Call Points
Manual Call Points Surface Fixing Manual Call Points Where appropriate refer to the as fitted wiring diagrams (if supplied), general notes, EMC compliance, cable types and loop circuit connections. Surface Fixing Identify from a range the required type of manual call point MCP: 32800 Surface mounted MCP 32807 Surface mounted MCP keyswitch 32842 Surface mounted MCP with cover...
Page 60 Surface Fixing Manual Call Points Figure 12-1 Manual Call Point parts cdn17 NOTE: Ensure the spacer/back box gasket is fitted on and around the back box profile. Secure the spacer assembly to the back box using the 2 - long screws. Reassemble the cover assembly to the main assembly with the socket head screw.
Page 61: Semi-Flush Fixing
Manual Call Points Semi-Flush Fixing Hook the cover onto the main assembly securing the two parts with the allen screw, and remove the test key to leave the call point in its normal operating state. NOTE: Check the cover/glass gasket is not trapped around the circular rim of the cover.
Page 62 Testing Manual Call Points This page has been intentionally left blank. System 32000 Installation Manual 12-4 32599 Issue 1_3/99...
Page 63: Alarm Sounders
Alarm Sounders Alarm Sounders Where appropriate refer to the as fitted wiring diagrams (if supplied), general notes, EMC compliance, cable types and loop circuit connections. Identify the appropriate package labelled ALARM SOUNDER, there are two types, a 2-way (32202) or a 3-way (32203) and check the contents.
Page 64: 32777 Repeat Sounder
32777 Repeat Sounder Alarm Sounders NOTE: Use the key supplied to hinge open the horn assembly from the back box. Cut the required cable entry holes using the recessed centres on the back box. Feed the cables through the entry holes and mount the back box to an even surface or BESA box.
Page 65: 32440 Fire Alarm Interface Unit (Mains Powered)
32440 Fire Alarm Interface Unit (Mains powered) 32440 Fire Alarm Interface Unit (Mains powered) Where appropriate refer to the as fitted wiring diagrams (if supplied), plus sections in this manual: general notes, EMC compliance, LVD Compliance, cable types and loop circuit connections.
Page 66 32440 Fire Alarm Interface Unit (Mains powered) Identify the FIRE ALARM INTERFACE (MAINS POWERED) package numbered 32440. Open the door using the key and check all components... Component Quantity Unit Interface Board Screws (for board) 12V 2.1Ah Battery Battery Link Battery lead 0.25A Aux Fuse (Spare) 1.6A Mains Fuse (Spare)
Page 67 32440 Fire Alarm Interface Unit (Mains powered) Figure 14-2 Connections Details cdn21 Connect the incoming cable ends to the appropriate terminals. Connect the transformer secondary wires to terminal block P7 on the interface board. Place the batteries inside the backbox. Fit the covers fitted over the mains terminal and battery restraint bracket.
Page 68: 19104-52 Power Relay
19104-52 Power relay 32440 Fire Alarm Interface Unit (Mains powered) 19104-52 Power relay Figure 14-3 Relay holder Figure 14-4 Diode unit Figure 14-5 Relay connections System 32000 Installation Manual 14-4 32599 Issue 1_3/99...
Page 69: 32450 Fire Alarm Interface Unit (Loop Powered)
32450 Fire alarm interface unit (Loop powered) 32450 Fire alarm interface unit (Loop powered) Where appropriate refer to the as fitted wiring diagrams (if supplied), plus sections in this manual: general notes, EMC compliance, LVD compliance, cable types and loop circuit connections.
Page 70 32450 Fire alarm interface unit (Loop powered) Knockout the required cable entry points. NOTE: Mount the unit with cable entry points at the top. Mark and drill the three hole fixing positions on the surface to which the unit is to be mounted. Secure the unit to the surface with suitable fixings to support a fully assembled weight of 2.4Kg.
Page 71: 32457 Class Change Interface
32450 Fire alarm interface unit (Loop powered) 32457 Class Change Interface NOTE: If a keyswitch is fitted to a channel, no line module can be connected to that channel Close the door on the unit using the key. Leave all outstanding installation work to servicing organisation. 32457 Class Change Interface The 32457 Class Change Interface is a 32450 Loop Powered Interface supplied with a single Line Module.
Page 72 32457 Class Change Interface 32450 Fire alarm interface unit (Loop powered) This page left intentionally blank System 32000 Installation Manual 15-4 32599 Issue 1_3/99...
Page 73: 19245-06 Power Supply Unit
19245-06 Power Supply Unit 19245-06 Power Supply Unit Where appropriate, refer to the as fitted wiring diagrams (if supplied), plus sections of this manual: general notes, EMC compliance, LVD compliance, cable types and loop circuit connections. Fuses and locations Fuse Rating Location Mains...
Page 74 19245-06 Power Supply Unit Figure 16-2 PSU to interface unit connections fl204 Secure the unit to the surface with suitable fixings to support a fully assembled weight of 1.5Kg. Terminate cables at the entry points. Connect the cables ends if instructed, otherwise leave tail wire length of 400mm and mark the cores to identify the connection point.
Page 75: 32410 Loop Powered Zone Module
32410 Loop Powered Zone Module 32410 Loop Powered Zone Module Where appropriate refer to the as fitted wiring drawings (if supplied), notes to installer, EMC compliance, LVD compliance, cable types and loop circuit connections. Identify the LOOP POWERED ZONE MODULE package numbered 32410.
Page 76 32410 Loop Powered Zone Module Mark the four fixing positions on the wall to which the unit is to be mounted. Secure the unit to the wall with suitable fixings to support an approximate full assembly weight of 0.67kg. Terminate each cable at the entry point. Refit the pcb into the module.
Page 77: 32415 Single Channel Interface (Loop Powered)
32415 Single Channel Interface (Loop Powered) 32415 Single Channel Interface (Loop Powered) Where appropriate refer to the as fitted wiring drawings (if supplied), notes to installer, EMC compliance, LVD compliance, cable types and loop circuit connections. Identify the SINGLE CHANNEL INTERFACE (LOOP POWERED) package numbered 32415.
Page 78 32415 Single Channel Interface (Loop Powered) Mark the four fixing positions on the wall to which the unit is to be mounted. Secure the unit to the wall with suitable fixings to support an approximate full assembly weight of 0.67kg. Terminate each cable at the entry point.
Page 79: Environmentally Protected Products
Environmentally Protected Products 32213/32729/32829 EP Products Environmentally Protected Products Where appropriate, refer to the as fitted wiring diagrams (if supplied), general notes, EMC compliance, cable types and loop circuit connections 32213/32729/32829 EP Products These units have IP66 rating as specified in the British Standard BS 5490:1977 which is the specification for classification of degree of protection provided by enclosures.
Page 80 32213/32729/32829 EP Products Environmentally Protected Products Place the unit in the desired position and mark the four fixing holes. When the product is mounted ensure the pre-machined cable entries are at the bottom. Drill the four fixing holes and mount the unit on the surface with suitable fixings such that adequate support is provided.
Page 81 Environmentally Protected Products 32213/32729/32829 EP Products 32729 Heat sensor 32829 Manual Call Point LINE 3 32213 Sounder (3-way) emfl141 Figure 19-2 Connection details for EP products CAUTION: It is important NOT to undertake insulation tests of wiring with the wires connected into their intended terminals. THE ELECTRONIC COMPONENTS MAY BE SERIOUSLY DAMAGED.
Page 82 32213/32729/32829 EP Products Environmentally Protected Products This page has been intentionally left blank. System 32000 Installation Manual 19-4 32599 Issue 1_3/99...
Page 83: Network Overview
Network Overview Network Capacity Network Overview This section gives an overview of the System 32000 Network. It shows the connections between 32000 Control Panels and Network Interfaces. Network Capacity A network can connect a maximum of 16 control panels. Each control panel will have a network interface. The network interfaces are connected together to form a `loop'.
Page 84 Schematic Diagram Network Overview This page has been intentionally left blank System 32000 Installation Manual 20-2 32599 Issue 1_3/99...
Page 85: Network Installation
Network Installation 32620 Network Interface Network Installation Where appropriate, refer to the as fitted wiring diagrams (if supplied), general notes, EMC compliance, LVD compliance, cable types and network overview. 32620 Network Interface Fuses and locations Fuse Rating Location Mains 20mm x 5mm 1A HRC Mains terminal block 20mm x 5mm 2.5A Backplane...
Page 86 32620 Network Interface Network Installation Identify the NETWORK INTERFACE package number 32620 and check that it has the following components: Component Quantity Network Interface Door key Enable Controls key Fuse 1A Open the interface door using the door key. Remove the back box to door earth lead. Also remove the back box to chassis plate earth lead.
Page 87 Network Installation 32620 Network Interface Slide the door to the back box assembly, ensure the door can open and close easily. Fit the back box to door earth lead, and the back box to chassis plate earth lead. Ensure all cables are secured to the base of the back box. Close the door and lock it using the door key.
Page 88 32620 Network Interface Network Installation This page left intentionally blank. System 32000 Installation Manual 21-4 32599 Issue 1_3/99...
Page 89: Network Wiring
Network Wiring 32022 Control Panel to 32620 Network Interface Network Wiring 32022 Control Panel to 32620 Network Interface Figure 22-1 Control Panel to Network Interface cdn15 Note: If a cable is a twin twisted pair, make sure when connecting the equipment that one pair is used for RxD and TxD and the other is used for the OV (only one core connected to the OV, the other is not connected).
Page 90: 32620 Network Interface To 32620 Network Interface
32620 Network Interface to 32620 Network Interface Network Wiring 32620 Network Interface to 32620 Network Interface Network interface Network interface RS485 (see Cables part) SCREEN SCREEN SCREEN ROM PREVIOUS NETWORK INTERFACE SIDE 1 SIDE 2 SIDE 1 SIDE 2 -VE +VE 0V -VE +VE 0V -VE +VE 0V -VE +VE 0V...
Page 91: System 32000
Parts List Introduction System 32000 Introduction This section lists the commercially available parts for use in the System 32000. Control and indicating equipment Control Panel * - first fix products 32020 Fire alarm Control Panel SET including control panel, 1 loop card, power supply, battery box and battery pack.
Page 92: Cards
Cards Parts List Cards 32023-01 Local controller card V3, (LCC for 32022) 32023-11 Loop processor card V3, (LPC for 32022) 32023-31 1-2 Loop panel RAM Card (for 32022) 32023-21 I/O card V3 (for 32022) 32000 Sensors, terminal plate and Accessories 32000 Sensors 32715 Optical sensor...
Page 93: Alarm Sounders
Parts List Alarm sounders Environmentally 32729 EP Heat Sensor Protected Special 32760 Duct Sensor sensors Alarm sounders Sounders 32202 Alarm sounder 2-way 32203 Alarm sounder 3-way 32777 Repeat sounder Environmentally 32213 EP Sounder 3-way Protected Manual call points (MCP) MCPs 32800 Surface mounted MCP 32807...
Page 94: Manuals & Accessories
Manuals & Accessories Parts List 1-channel loop 32410 Loop powered zone module powered interface 32415 Single channel interface (loop powered) 19245-05 Line module (up to 4 can be installed in a 32450) 19245-06 Power supply unit for Fire Alarm Interface - Loop powered (including 1 mains relay) 19245-07 Mains relay (up to 4 used with PSU)
Page 95 This page has been intentionally left blank.

This manual is also suitable for:

32000 network
